SDO HMI 2011-12-17 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.15 | 0.00 | 8.23 | -18.20 | 323.91 | 17.29 | 224.03 | 0.4105 | 82.6 | 57.6 | |
|
previous
or next observation for the same group /

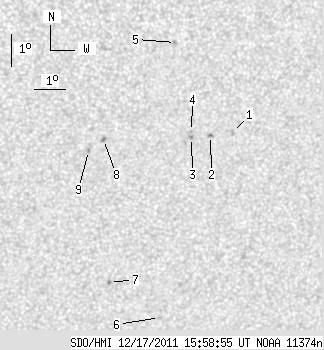

back to the solar disc SDO HMI 2011-12-17 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.04 | 0.00 | 1.12 | -17.30 | 326.03 | 19.41 | 228.69 | 0.4242 | 824.0 | 679.3 | |
| 0.00 | 2.04 | 0.00 | 1.11 | -17.40 | 325.32 | 18.70 | 227.50 | 0.4168 | 873.0 | 687.8 | |
| 0.00 | 1.79 | 0.00 | 0.97 | -17.46 | 324.71 | 18.09 | 226.47 | 0.4103 | 987.0 | 770.8 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -17.28 | 324.69 | 18.07 | 226.78 | 0.4082 | 780.0 | 510.4 | |
| 0.00 | 1.87 | 0.00 | 1.00 | -14.57 | 323.93 | 17.31 | 231.08 | 0.3717 | -822.0 | -632.9 | |
| 0.00 | 1.53 | 0.00 | 0.86 | -23.09 | 324.33 | 17.71 | 216.79 | 0.4691 | -636.0 | -472.3 | |
| 0.00 | 1.62 | 0.00 | 0.89 | -21.99 | 322.52 | 15.90 | 215.51 | 0.4393 | 768.0 | 634.6 | |
| 0.00 | 1.79 | 0.00 | 0.96 | -17.54 | 321.88 | 15.26 | 221.62 | 0.3794 | -1080.0 | -889.0 | |
| 0.00 | 1.70 | 0.00 | 0.91 | -17.88 | 321.42 | 14.80 | 220.17 | 0.3787 | -951.0 | -753.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
