SDO HMI 2011-12-17 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.27 | 74.83 | 9.17 | 40.92 | 22.10 | 299.58 | -7.04 | 14.57 | 0.4201 | 104.2 | 212.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-17 15:58:55 UT

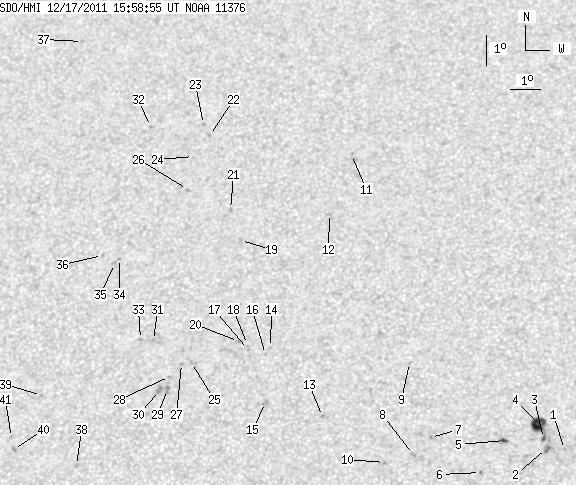

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.58 | 19.28 | 307.26 | 0.64 | 358.27 | 0.3512 | -855.0 | -656.1 | |
| 0.00 | 3.91 | 0.00 | 2.07 | 19.31 | 306.70 | 0.08 | 359.79 | 0.3516 | -676.0 | -537.2 | |
| 1.79 | 19.22 | 0.95 | 10.21 | 19.63 | 306.61 | -0.01 | 0.04 | 0.3568 | -761.3 | -814.4 | |
| 13.61 | -3.00 | 7.23 | -3.00 | 20.10 | 306.45 | -0.17 | 0.44 | 0.3645 | -949.5 | 999999 | |
| 1.87 | 2.72 | 0.99 | 1.44 | 19.56 | 305.38 | -1.23 | 3.28 | 0.3563 | 644.3 | 555.6 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 18.56 | 304.65 | -1.97 | 5.52 | 0.3408 | -826.0 | -698.4 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 19.66 | 303.07 | -3.55 | 9.32 | 0.3621 | -803.0 | -722.5 | |
| 0.00 | 2.13 | 0.00 | 1.13 | 19.13 | 302.55 | -4.07 | 10.95 | 0.3550 | -833.0 | -710.5 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 22.05 | 302.34 | -4.28 | 9.95 | 0.4021 | -769.0 | -582.2 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 18.88 | 301.64 | -4.97 | 13.46 | 0.3541 | -908.0 | -766.1 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 28.93 | 300.12 | -6.50 | 11.17 | 0.5133 | -655.0 | -566.5 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 26.94 | 299.51 | -7.11 | 13.19 | 0.4859 | -589.0 | -471.9 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 20.33 | 299.64 | -6.98 | 17.27 | 0.3855 | -643.0 | -595.3 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 22.54 | 297.85 | -8.77 | 19.29 | 0.4278 | -352.0 | -203.7 | |
| 0.00 | 2.47 | 0.00 | 1.33 | 20.78 | 297.80 | -8.82 | 20.98 | 0.4020 | 849.0 | 726.1 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 22.32 | 297.71 | -8.91 | 19.78 | 0.4253 | 819.0 | 630.5 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 22.48 | 297.15 | -9.47 | 20.77 | 0.4307 | 937.0 | 720.3 | |
| 0.00 | 0.60 | 0.00 | 0.33 | 22.64 | 297.10 | -9.52 | 20.71 | 0.4333 | 577.0 | 607.9 | |
| 0.00 | 1.87 | 0.00 | 1.06 | 26.05 | 296.61 | -10.01 | 18.86 | 0.4852 | 683.0 | 623.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 22.74 | 296.80 | -9.81 | 21.21 | 0.4365 | 650.0 | 520.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 27.08 | 296.18 | -10.44 | 18.83 | 0.5020 | 863.0 | 664.1 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 29.60 | 295.20 | -11.42 | 18.61 | 0.5417 | 735.0 | 566.2 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 29.98 | 294.95 | -11.67 | 18.73 | 0.5481 | 779.0 | 622.1 | |
| 0.00 | 0.51 | 0.00 | 0.30 | 28.88 | 294.73 | -11.89 | 19.82 | 0.5342 | 560.0 | 499.5 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 22.07 | 295.33 | -11.29 | 24.70 | 0.4359 | 790.0 | 703.2 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 27.76 | 294.65 | -11.97 | 20.78 | 0.5193 | 759.0 | 594.6 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 22.04 | 295.01 | -11.61 | 25.35 | 0.4377 | 868.0 | 705.7 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 21.62 | 294.65 | -11.97 | 26.46 | 0.4343 | 762.0 | 618.9 | |
| 0.00 | 3.23 | 0.00 | 1.77 | 21.21 | 294.62 | -12.00 | 26.99 | 0.4288 | 930.0 | 810.7 | |
| 0.00 | 3.49 | 0.00 | 1.91 | 21.18 | 294.37 | -12.25 | 27.51 | 0.4302 | 934.0 | 911.7 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 22.79 | 294.03 | -12.59 | 26.35 | 0.4547 | 537.0 | 472.9 | |
| 0.00 | 1.19 | 0.00 | 0.71 | 29.92 | 293.10 | -13.52 | 21.43 | 0.5565 | 652.0 | 525.9 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 22.82 | 293.60 | -13.02 | 27.08 | 0.4582 | 739.0 | 624.2 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 25.47 | 292.61 | -14.01 | 26.00 | 0.5005 | 737.0 | 540.4 | |
| 0.00 | 1.45 | 0.00 | 0.83 | 25.31 | 292.47 | -14.15 | 26.40 | 0.4993 | 741.0 | 607.2 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 25.57 | 292.03 | -14.59 | 26.82 | 0.5058 | 567.0 | 368.0 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 32.92 | 290.18 | -16.44 | 23.00 | 0.6105 | 433.0 | 290.3 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 18.82 | 291.90 | -14.72 | 35.18 | 0.4194 | 837.0 | 650.7 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 21.04 | 290.53 | -16.09 | 34.42 | 0.4594 | 710.0 | 573.3 | |
| 0.00 | 2.13 | 0.00 | 1.17 | 19.33 | 289.80 | -16.82 | 37.99 | 0.4455 | 754.0 | 617.7 | |
| 0.00 | 0.34 | 0.00 | 0.19 | 19.71 | 289.69 | -16.93 | 37.61 | 0.4510 | 574.0 | 439.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
