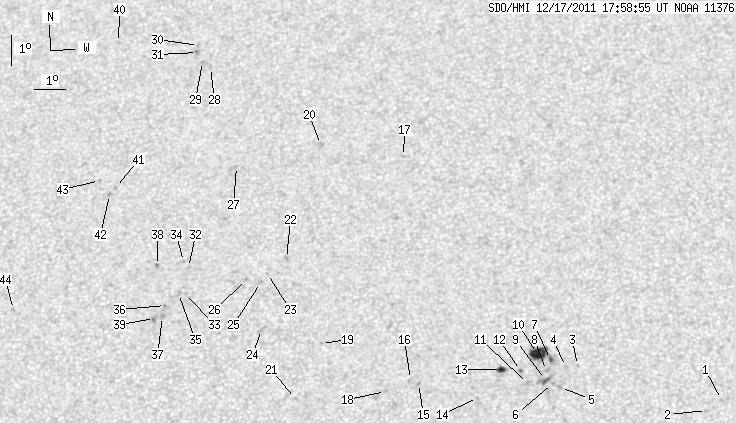

SDO HMI 2011-12-17 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.03 | 97.04 | 9.58 | 52.53 | 21.66 | 301.72 | -3.80 | 7.43 | 0.4027 | -6.2 | 24.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-17 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.72 | 18.62 | 312.23 | 6.72 | 341.87 | 0.3580 | 728.0 | 614.4 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 18.28 | 311.75 | 6.24 | 342.79 | 0.3502 | 881.0 | 682.6 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 19.68 | 307.75 | 2.24 | 354.11 | 0.3597 | -685.0 | -530.7 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 19.65 | 307.38 | 1.86 | 355.08 | 0.3586 | -801.0 | -626.5 | |
| 0.00 | 1.87 | 0.00 | 0.99 | 18.99 | 307.21 | 1.70 | 355.36 | 0.3475 | -843.0 | -678.9 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 19.11 | 306.96 | 1.45 | 356.06 | 0.3493 | -829.0 | -698.4 | |
| 1.02 | 25.77 | 0.54 | 13.69 | 19.87 | 306.91 | 1.39 | 356.36 | 0.3616 | -885.7 | -648.3 | |
| 0.00 | 2.38 | 0.00 | 1.26 | 19.52 | 306.78 | 1.27 | 356.63 | 0.3558 | -538.0 | -398.3 | |
| 0.00 | 8.25 | 0.00 | 4.36 | 19.24 | 306.75 | 1.23 | 356.67 | 0.3511 | -783.0 | -490.3 | |
| 13.35 | -7.00 | 7.10 | -7.00 | 20.06 | 306.50 | 0.99 | 357.44 | 0.3643 | -1033.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 19.11 | 306.18 | 0.67 | 358.18 | 0.3486 | -926.0 | -662.6 | |
| 0.00 | 1.53 | 0.00 | 0.81 | 19.52 | 305.97 | 0.45 | 358.80 | 0.3553 | 706.0 | 524.7 | |
| 3.66 | 4.34 | 1.94 | 2.30 | 19.56 | 305.37 | -0.14 | 0.38 | 0.3557 | 823.3 | 587.5 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 18.67 | 304.63 | -0.89 | 2.48 | 0.3416 | -626.0 | -485.4 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 19.12 | 302.78 | -2.73 | 7.40 | 0.3514 | -984.0 | -775.2 | |
| 0.00 | 0.43 | 0.00 | 0.23 | 19.24 | 302.53 | -2.99 | 8.02 | 0.3540 | -667.0 | -560.4 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 26.45 | 302.13 | -3.38 | 6.49 | 0.4688 | -708.0 | -543.5 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 18.87 | 301.76 | -3.76 | 10.26 | 0.3499 | -844.0 | -600.4 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 20.38 | 299.70 | -5.81 | 14.49 | 0.3813 | -698.0 | -509.5 | |
| 0.00 | 2.72 | 0.00 | 1.54 | 26.86 | 299.37 | -6.15 | 11.49 | 0.4816 | -618.0 | -523.1 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 18.65 | 298.95 | -6.57 | 17.71 | 0.3577 | -700.0 | -561.2 | |
| 0.00 | 2.21 | 0.00 | 1.21 | 23.11 | 298.46 | -7.06 | 15.36 | 0.4284 | -696.0 | -505.3 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 22.63 | 297.87 | -7.64 | 16.92 | 0.4237 | -533.0 | -358.8 | |
| 0.00 | 3.83 | 0.00 | 2.06 | 20.83 | 297.78 | -7.74 | 18.56 | 0.3970 | 777.0 | 515.7 | |
| 0.00 | 1.87 | 0.00 | 1.02 | 22.34 | 297.66 | -7.85 | 17.58 | 0.4203 | 642.0 | 525.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 22.44 | 297.21 | -8.31 | 18.45 | 0.4240 | 718.0 | 632.3 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 26.13 | 296.62 | -8.89 | 16.83 | 0.4812 | 743.0 | 589.0 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 29.48 | 295.45 | -10.07 | 16.62 | 0.5341 | 709.0 | 552.9 | |
| 0.00 | 1.62 | 0.00 | 0.95 | 29.69 | 295.15 | -10.36 | 16.95 | 0.5383 | 736.0 | 655.9 | |
| 0.00 | 1.79 | 0.00 | 1.05 | 30.24 | 294.95 | -10.56 | 16.90 | 0.5468 | 776.0 | 559.0 | |
| 0.00 | 1.70 | 0.00 | 1.00 | 30.00 | 294.95 | -10.57 | 17.06 | 0.5435 | 709.0 | 640.7 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 22.83 | 295.30 | -10.21 | 21.89 | 0.4402 | 817.0 | 631.3 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 21.99 | 295.27 | -10.25 | 22.76 | 0.4283 | 835.0 | 739.9 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 23.03 | 295.12 | -10.39 | 22.05 | 0.4440 | 786.0 | 598.9 | |
| 0.00 | 2.47 | 0.00 | 1.35 | 22.00 | 295.04 | -10.48 | 23.20 | 0.4297 | 774.0 | 665.3 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 21.61 | 294.65 | -10.87 | 24.36 | 0.4268 | 756.0 | 664.4 | |
| 0.00 | 2.98 | 0.00 | 1.62 | 21.26 | 294.58 | -10.94 | 24.87 | 0.4223 | 932.0 | 767.6 | |
| 0.00 | 2.04 | 0.00 | 1.13 | 22.90 | 294.29 | -11.23 | 23.75 | 0.4473 | 829.0 | 702.3 | |
| 0.00 | 2.38 | 0.00 | 1.30 | 21.20 | 294.33 | -11.19 | 25.44 | 0.4231 | 949.0 | 856.8 | |
| 0.00 | 1.36 | 0.00 | 0.81 | 30.36 | 292.14 | -13.37 | 20.89 | 0.5617 | 783.0 | 568.8 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 25.46 | 292.65 | -12.86 | 24.17 | 0.4930 | 714.0 | 515.4 | |
| 0.00 | 1.62 | 0.00 | 0.92 | 25.23 | 292.47 | -13.04 | 24.67 | 0.4910 | 827.0 | 711.4 | |
| 0.00 | 0.60 | 0.00 | 0.34 | 25.69 | 292.09 | -13.43 | 24.87 | 0.4997 | 578.0 | 496.3 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 21.51 | 289.70 | -15.81 | 33.36 | 0.4630 | 677.0 | 572.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
