SDO HMI 2011-12-18 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.90 | 110.75 | 12.79 | 59.92 | 21.55 | 301.21 | 1.20 | 355.97 | 0.4017 | -34.5 | 61.5 | |
|
previous
or next observation for the same group /

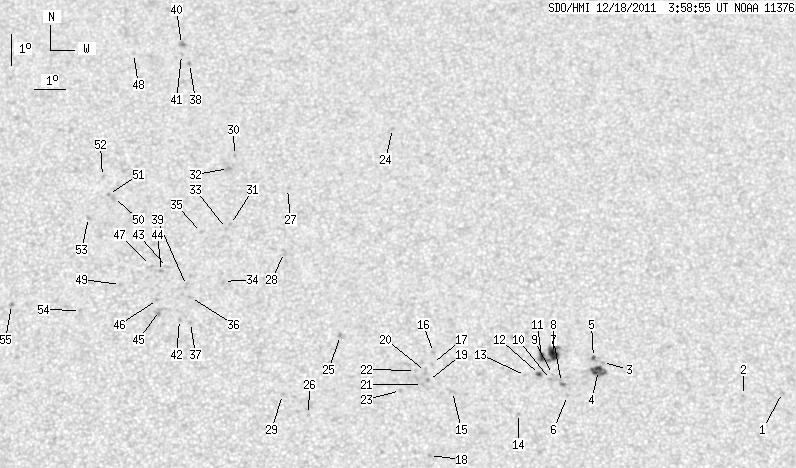

back to the solar disc SDO HMI 2011-12-18 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.69 | 18.84 | 313.97 | 13.96 | 326.34 | 0.4138 | 740.0 | 572.8 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 18.74 | 312.71 | 12.70 | 328.61 | 0.4016 | 834.0 | 628.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 19.76 | 308.30 | 8.29 | 339.26 | 0.3849 | -635.0 | -481.2 | |
| 9.44 | 11.06 | 5.05 | 5.92 | 19.50 | 308.16 | 8.15 | 339.33 | 0.3803 | -926.1 | -627.5 | |
| 1.19 | 2.47 | 0.64 | 1.32 | 19.91 | 308.02 | 8.01 | 340.05 | 0.3857 | -897.4 | -800.9 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 18.71 | 307.14 | 7.14 | 340.98 | 0.3627 | -877.0 | -584.1 | |
| 0.00 | 2.81 | 0.00 | 1.49 | 19.12 | 306.97 | 6.96 | 341.78 | 0.3680 | -280.0 | -459.0 | |
| 8.42 | 20.25 | 4.51 | 10.84 | 20.04 | 306.76 | 6.75 | 343.08 | 0.3811 | -1016.3 | -828.9 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 19.37 | 306.70 | 6.69 | 342.66 | 0.3706 | 519.0 | 422.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 19.21 | 306.63 | 6.62 | 342.70 | 0.3678 | 594.0 | 461.4 | |
| 3.23 | -8.00 | 1.73 | -8.00 | 19.94 | 306.38 | 6.37 | 343.91 | 0.3778 | -928.7 | 999999 | |
| 1.62 | 2.30 | 0.86 | 1.22 | 19.37 | 306.29 | 6.28 | 343.66 | 0.3686 | 745.8 | 629.2 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 19.34 | 305.85 | 5.84 | 344.72 | 0.3661 | 426.0 | 316.4 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 18.14 | 305.59 | 5.58 | 344.45 | 0.3462 | -747.0 | -553.6 | |
| 0.00 | 2.98 | 0.00 | 1.57 | 18.83 | 303.55 | 3.54 | 350.34 | 0.3499 | -670.0 | -546.3 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 20.06 | 302.98 | 2.97 | 352.37 | 0.3684 | -716.0 | -564.5 | |
| 0.00 | 0.68 | 0.00 | 0.36 | 19.71 | 302.94 | 2.93 | 352.33 | 0.3627 | -685.0 | -613.8 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 16.83 | 302.80 | 2.79 | 351.46 | 0.3153 | -900.0 | -701.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 19.18 | 302.81 | 2.80 | 352.48 | 0.3537 | -971.0 | -844.9 | |
| 0.00 | 2.47 | 0.00 | 1.31 | 19.46 | 302.72 | 2.71 | 352.82 | 0.3581 | -724.0 | -598.0 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 19.05 | 302.62 | 2.61 | 352.93 | 0.3512 | -943.0 | -839.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 19.49 | 302.40 | 2.40 | 353.65 | 0.3580 | -762.0 | -536.0 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 18.86 | 301.93 | 1.92 | 354.73 | 0.3469 | -891.0 | -687.3 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 27.36 | 301.79 | 1.78 | 356.70 | 0.4817 | -680.0 | -550.6 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 20.60 | 300.06 | 0.05 | 359.88 | 0.3739 | -769.0 | -595.0 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 18.11 | 299.06 | -0.94 | 2.70 | 0.3334 | -871.0 | -631.7 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 25.36 | 298.33 | -1.68 | 3.38 | 0.4507 | -451.0 | -395.4 | |
| 0.00 | 3.32 | 0.00 | 1.81 | 23.26 | 298.26 | -1.75 | 3.86 | 0.4177 | -492.0 | -412.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 18.73 | 298.25 | -1.76 | 4.86 | 0.3446 | -731.0 | -617.9 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 26.46 | 296.57 | -3.44 | 6.60 | 0.4701 | 738.0 | 603.2 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 24.18 | 296.50 | -3.51 | 7.41 | 0.4349 | 771.0 | 668.6 | |
| 0.00 | 2.81 | 0.00 | 1.57 | 26.02 | 296.38 | -3.63 | 7.07 | 0.4638 | 877.0 | 751.9 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 24.05 | 296.37 | -3.63 | 7.71 | 0.4331 | 718.0 | 541.8 | |
| 0.00 | 1.62 | 0.00 | 0.88 | 22.33 | 296.33 | -3.68 | 8.45 | 0.4062 | 698.0 | 567.7 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 23.92 | 295.57 | -4.44 | 9.44 | 0.4330 | 658.0 | 551.5 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 21.82 | 295.29 | -4.72 | 11.03 | 0.4009 | 819.0 | 700.2 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 21.02 | 295.31 | -4.69 | 11.40 | 0.3883 | 800.0 | 694.3 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 29.57 | 294.93 | -5.08 | 8.54 | 0.5203 | 830.0 | 675.8 | |
| 0.00 | 2.04 | 0.00 | 1.11 | 22.20 | 295.15 | -4.86 | 11.15 | 0.4074 | 711.0 | 749.5 | |
| 0.00 | 2.89 | 0.00 | 1.69 | 30.23 | 294.62 | -5.38 | 8.82 | 0.5306 | 736.0 | 650.9 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 29.88 | 294.64 | -5.36 | 8.91 | 0.5255 | 658.0 | 615.8 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 21.11 | 294.96 | -5.05 | 12.17 | 0.3909 | 871.0 | 719.4 | |
| 0.00 | 1.79 | 0.00 | 0.97 | 22.78 | 294.52 | -5.49 | 12.23 | 0.4185 | 515.0 | 442.5 | |
| 0.00 | 2.04 | 0.00 | 1.11 | 22.65 | 294.33 | -5.68 | 12.70 | 0.4172 | 810.0 | 667.2 | |
| 0.00 | 5.10 | 0.00 | 2.75 | 21.40 | 294.31 | -5.69 | 13.49 | 0.3978 | 841.0 | 801.0 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 21.75 | 294.24 | -5.77 | 13.44 | 0.4036 | 946.0 | 815.7 | |
| 0.00 | 0.51 | 0.00 | 0.28 | 22.85 | 293.97 | -6.04 | 13.36 | 0.4215 | 567.0 | 541.7 | |
| 0.00 | 1.11 | 0.00 | 0.65 | 29.92 | 293.00 | -7.01 | 11.55 | 0.5304 | 545.0 | 354.8 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 22.24 | 293.03 | -6.98 | 15.76 | 0.4159 | 757.0 | 519.7 | |
| 0.00 | 2.64 | 0.00 | 1.47 | 25.07 | 292.65 | -7.36 | 14.67 | 0.4602 | 713.0 | 601.2 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 25.17 | 292.48 | -7.53 | 14.93 | 0.4624 | 834.0 | 655.1 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 25.77 | 292.24 | -7.77 | 15.00 | 0.4722 | 548.0 | 423.5 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 24.42 | 291.87 | -8.14 | 16.58 | 0.4538 | 749.0 | 599.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | 21.41 | 291.79 | -8.22 | 19.06 | 0.4092 | 676.0 | 505.6 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 21.61 | 289.56 | -10.45 | 23.47 | 0.4251 | 928.0 | 740.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
