SDO HMI 2011-12-18 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32.42 | 191.37 | 27.78 | 164.02 | -18.61 | 352.45 | 52.99 | 247.95 | 0.8187 | 780.3 | 310.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-18 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

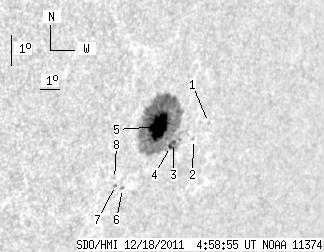

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 1.08 | -18.36 | 354.90 | 55.44 | 248.80 | 0.8405 | -197.0 | -254.4 | |
| 0.00 | 1.02 | 0.00 | 0.92 | -18.90 | 354.34 | 54.88 | 248.05 | 0.8365 | -528.0 | -474.2 | |
| 1.36 | 185.75 | 1.19 | 159.16 | -19.01 | 353.32 | 53.85 | 247.68 | 0.8275 | 337.4 | 317.8 | |
| 1.62 | -3.00 | 1.42 | -3.00 | -19.14 | 353.22 | 53.76 | 247.51 | 0.8268 | 233.9 | 999999 | |
| 29.44 | -3.00 | 25.17 | -3.00 | -18.53 | 352.36 | 52.90 | 248.03 | 0.8177 | 948.0 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.22 | -20.48 | 351.35 | 51.89 | 245.43 | 0.8128 | 477.0 | 364.2 | |
| 0.00 | 1.02 | 0.00 | 0.86 | -20.39 | 350.95 | 51.49 | 245.42 | 0.8088 | 654.0 | 556.9 | |
| 0.00 | 0.94 | 0.00 | 0.78 | -20.18 | 350.80 | 51.34 | 245.64 | 0.8069 | 577.0 | 466.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
