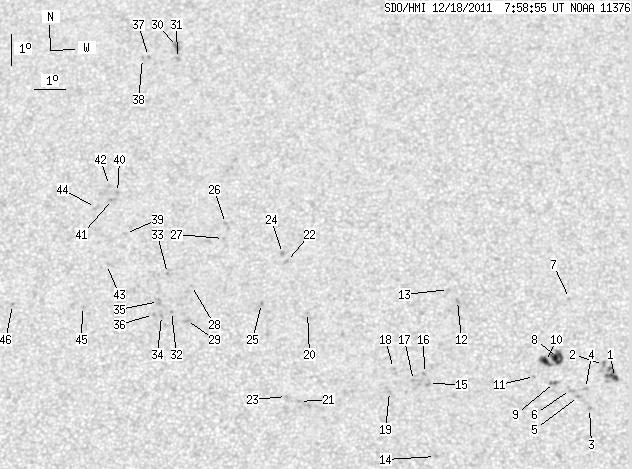

SDO HMI 2011-12-18 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.80 | 105.18 | 10.11 | 57.17 | 21.83 | 301.23 | 3.40 | 350.87 | 0.4110 | -109.3 | 2.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-18 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.66 | 11.57 | 1.97 | 6.24 | 19.40 | 308.57 | 10.74 | 333.51 | 0.3958 | -980.4 | -851.6 | |
| 0.00 | 2.55 | 0.00 | 1.38 | 19.81 | 308.24 | 10.42 | 334.67 | 0.3994 | -1043.0 | -805.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 18.42 | 307.71 | 9.89 | 334.19 | 0.3758 | -1006.0 | -754.9 | |
| 0.00 | 1.87 | 0.00 | 1.00 | 19.05 | 307.62 | 9.80 | 335.14 | 0.3842 | -733.0 | -551.0 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 18.79 | 307.39 | 9.56 | 335.37 | 0.3790 | -1056.0 | -783.8 | |
| 0.00 | 3.57 | 0.00 | 1.91 | 19.01 | 307.15 | 9.32 | 336.16 | 0.3806 | -486.0 | -320.0 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 21.90 | 307.30 | 9.47 | 338.80 | 0.4238 | -731.0 | -573.1 | |
| 9.44 | 19.65 | 5.08 | 10.57 | 20.02 | 306.79 | 8.97 | 338.03 | 0.3932 | -951.3 | -735.1 | |
| 0.00 | 3.57 | 0.00 | 1.91 | 19.23 | 306.65 | 8.83 | 337.52 | 0.3806 | 994.0 | 725.9 | |
| 5.70 | -8.00 | 3.06 | -8.00 | 19.89 | 306.41 | 8.58 | 338.77 | 0.3890 | -977.9 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 19.42 | 306.03 | 8.20 | 339.14 | 0.3797 | 672.0 | 586.1 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 21.83 | 303.70 | 5.87 | 346.40 | 0.4055 | -690.0 | -598.6 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 22.18 | 303.43 | 5.60 | 347.22 | 0.4100 | -666.0 | -563.6 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 16.91 | 302.84 | 5.01 | 345.00 | 0.3245 | -743.0 | -614.1 | |
| 0.00 | 2.21 | 0.00 | 1.17 | 19.19 | 302.69 | 4.86 | 347.11 | 0.3603 | -1023.0 | -916.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 19.50 | 302.57 | 4.74 | 347.61 | 0.3649 | -811.0 | -658.8 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 19.28 | 302.22 | 4.39 | 348.37 | 0.3601 | -816.0 | -747.1 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 19.66 | 301.60 | 3.78 | 350.16 | 0.3643 | -705.0 | -578.6 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 18.93 | 301.46 | 3.63 | 350.16 | 0.3522 | -857.0 | -744.3 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 21.44 | 298.92 | 1.09 | 357.37 | 0.3883 | -612.0 | -429.9 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 18.62 | 298.65 | 0.82 | 357.71 | 0.3422 | -802.0 | -628.2 | |
| 0.00 | 1.79 | 0.00 | 0.97 | 23.08 | 298.26 | 0.43 | 359.04 | 0.4143 | -799.0 | -633.6 | |
| 0.00 | 1.02 | 0.00 | 0.54 | 18.77 | 298.25 | 0.42 | 358.84 | 0.3446 | -811.0 | -619.4 | |
| 0.00 | 1.87 | 0.00 | 1.02 | 23.34 | 298.13 | 0.30 | 359.33 | 0.4184 | -690.0 | -574.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 21.72 | 297.46 | -0.37 | 0.87 | 0.3926 | 832.0 | 738.3 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 24.32 | 296.29 | -1.54 | 3.24 | 0.4346 | 739.0 | 571.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 23.83 | 296.23 | -1.60 | 3.44 | 0.4269 | 868.0 | 684.3 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 22.30 | 295.23 | -2.60 | 5.99 | 0.4041 | 893.0 | 619.5 | |
| 0.00 | 2.38 | 0.00 | 1.28 | 21.18 | 295.09 | -2.74 | 6.65 | 0.3864 | 799.0 | 774.4 | |
| 0.00 | 6.13 | 0.00 | 3.57 | 30.27 | 294.56 | -3.27 | 5.37 | 0.5278 | 877.0 | 626.8 | |
| 0.00 | 2.55 | 0.00 | 1.48 | 29.86 | 294.58 | -3.25 | 5.43 | 0.5216 | 834.0 | 720.4 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 21.47 | 294.61 | -3.22 | 7.70 | 0.3920 | 1042.0 | 815.0 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 22.69 | 294.45 | -3.38 | 7.62 | 0.4117 | 827.0 | 679.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 21.34 | 294.29 | -3.53 | 8.49 | 0.3906 | 951.0 | 698.8 | |
| 0.00 | 4.08 | 0.00 | 2.20 | 21.79 | 294.19 | -3.64 | 8.56 | 0.3980 | 756.0 | 671.6 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 21.38 | 294.04 | -3.79 | 9.08 | 0.3918 | 848.0 | 734.9 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 29.93 | 293.58 | -4.24 | 7.06 | 0.5242 | 698.0 | 633.9 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 29.86 | 293.38 | -4.45 | 7.41 | 0.5236 | 627.0 | 533.9 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 23.99 | 293.06 | -4.77 | 10.09 | 0.4355 | 798.0 | 626.1 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 25.34 | 292.74 | -5.08 | 10.13 | 0.4571 | 739.0 | 532.4 | |
| 0.00 | 2.81 | 0.00 | 1.56 | 25.11 | 292.59 | -5.24 | 10.53 | 0.4540 | 881.0 | 707.3 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 25.57 | 292.47 | -5.36 | 10.56 | 0.4614 | 657.0 | 521.2 | |
| 0.00 | 0.34 | 0.00 | 0.19 | 22.99 | 292.48 | -5.34 | 11.78 | 0.4216 | 508.0 | 547.5 | |
| 0.00 | 2.13 | 0.00 | 1.18 | 24.85 | 292.05 | -5.78 | 11.73 | 0.4516 | 639.0 | 517.5 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 21.64 | 291.77 | -6.06 | 14.14 | 0.4032 | 791.0 | 678.2 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 21.71 | 289.53 | -8.30 | 18.96 | 0.4145 | 763.0 | 596.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
