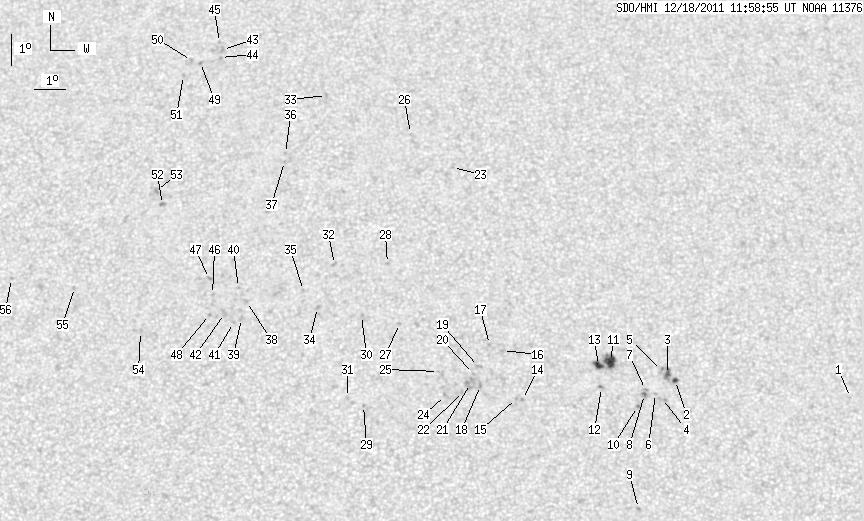

SDO HMI 2011-12-18 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.72 | 116.33 | 7.98 | 63.25 | 21.59 | 301.14 | 5.49 | 346.33 | 0.4126 | -178.2 | -149.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-18 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.51 | 0.00 | 0.28 | 18.89 | 314.49 | 18.84 | 318.39 | 0.4620 | 707.0 | 581.8 | |
| 2.04 | 2.55 | 1.11 | 1.39 | 19.39 | 308.85 | 13.20 | 328.58 | 0.4151 | -826.9 | -628.2 | |
| 0.00 | 5.53 | 0.00 | 3.01 | 19.58 | 308.61 | 12.96 | 329.29 | 0.4156 | -1063.0 | -878.4 | |
| 0.00 | 2.30 | 0.00 | 1.24 | 18.82 | 308.38 | 12.74 | 328.71 | 0.4036 | -599.0 | -627.3 | |
| 0.00 | 2.04 | 0.00 | 1.11 | 19.70 | 308.42 | 12.78 | 329.80 | 0.4158 | -783.0 | -649.3 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 18.98 | 308.17 | 12.53 | 329.34 | 0.4040 | -739.0 | -490.8 | |
| 0.00 | 1.53 | 0.00 | 0.83 | 19.10 | 307.86 | 12.22 | 330.12 | 0.4032 | -701.0 | -594.7 | |
| 0.00 | 1.96 | 0.00 | 1.06 | 18.94 | 307.82 | 12.18 | 330.00 | 0.4007 | -925.0 | -815.0 | |
| 0.00 | 1.96 | 0.00 | 1.03 | 15.40 | 307.40 | 11.75 | 325.60 | 0.3491 | -747.0 | -530.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 18.57 | 307.57 | 11.92 | 330.00 | 0.3935 | -923.0 | -815.4 | |
| 8.34 | 20.24 | 4.52 | 10.96 | 19.98 | 306.81 | 11.17 | 333.34 | 0.4074 | -989.2 | -667.7 | |
| 0.00 | 1.87 | 0.00 | 1.01 | 19.16 | 306.47 | 10.82 | 333.07 | 0.3933 | 768.0 | 622.5 | |
| 4.34 | -11.00 | 2.35 | -11.00 | 19.85 | 306.42 | 10.77 | 334.00 | 0.4028 | -1043.1 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 18.77 | 303.94 | 8.30 | 338.27 | 0.3708 | -875.0 | -708.5 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 18.80 | 303.76 | 8.11 | 338.74 | 0.3701 | -734.0 | -601.1 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 20.32 | 303.39 | 7.75 | 341.05 | 0.3909 | -1014.0 | -663.2 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 20.50 | 302.99 | 7.34 | 342.13 | 0.3917 | -647.0 | -473.0 | |
| 0.00 | 2.38 | 0.00 | 1.27 | 19.21 | 302.64 | 7.00 | 341.81 | 0.3701 | -1015.0 | -826.4 | |
| 0.00 | 2.21 | 0.00 | 1.18 | 19.81 | 302.61 | 6.96 | 342.42 | 0.3792 | -774.0 | -602.8 | |
| 0.00 | 0.85 | 0.00 | 0.45 | 19.58 | 302.44 | 6.79 | 342.63 | 0.3750 | -740.0 | -577.3 | |
| 0.00 | 9.36 | 0.00 | 4.98 | 19.27 | 302.33 | 6.69 | 342.62 | 0.3696 | -484.0 | -730.9 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 19.02 | 302.10 | 6.46 | 342.97 | 0.3645 | -623.0 | -686.4 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 26.25 | 302.09 | 6.45 | 347.72 | 0.4752 | -569.0 | -500.2 | |
| 0.00 | 2.64 | 0.00 | 1.40 | 18.89 | 301.53 | 5.89 | 344.29 | 0.3599 | -846.0 | -747.9 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 19.64 | 301.34 | 5.69 | 345.34 | 0.3710 | -560.0 | -450.3 | |
| 0.00 | 0.51 | 0.00 | 0.29 | 27.39 | 300.75 | 5.11 | 350.65 | 0.4884 | -682.0 | -603.5 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 21.17 | 300.16 | 4.51 | 349.13 | 0.3907 | -643.0 | -436.6 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 23.10 | 299.83 | 4.19 | 350.76 | 0.4202 | -542.0 | -415.2 | |
| 0.00 | 1.19 | 0.00 | 0.63 | 18.57 | 298.96 | 3.32 | 350.83 | 0.3457 | -856.0 | -677.6 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 21.42 | 298.96 | 3.31 | 352.07 | 0.3916 | -573.0 | -544.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 18.82 | 298.47 | 2.82 | 352.28 | 0.3486 | -745.0 | -528.0 | |
| 0.00 | 2.13 | 0.00 | 1.16 | 23.06 | 298.13 | 2.49 | 354.47 | 0.4161 | -758.0 | -581.2 | |
| 0.00 | 1.79 | 0.00 | 1.02 | 28.67 | 297.98 | 2.34 | 355.90 | 0.5028 | -584.0 | -488.4 | |
| 0.00 | 1.87 | 0.00 | 1.01 | 21.68 | 297.57 | 1.92 | 355.43 | 0.3932 | 925.0 | 715.7 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 22.22 | 297.13 | 1.48 | 356.56 | 0.4015 | 660.0 | 461.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 26.71 | 296.59 | 0.94 | 358.21 | 0.4718 | 623.0 | 505.7 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 26.45 | 296.55 | 0.91 | 358.25 | 0.4677 | 878.0 | 639.9 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 21.87 | 295.31 | -0.33 | 0.78 | 0.3951 | 917.0 | 571.8 | |
| 0.00 | 2.47 | 0.00 | 1.32 | 21.32 | 295.16 | -0.49 | 1.18 | 0.3864 | 656.0 | 602.7 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 22.32 | 295.06 | -0.59 | 1.36 | 0.4024 | 747.0 | 507.6 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 21.19 | 294.90 | -0.74 | 1.81 | 0.3844 | 838.0 | 705.4 | |
| 0.00 | 3.32 | 0.00 | 1.78 | 21.48 | 294.62 | -1.03 | 2.47 | 0.3892 | 792.0 | 715.4 | |
| 0.00 | 2.55 | 0.00 | 1.48 | 30.25 | 294.47 | -1.18 | 1.94 | 0.5256 | 786.0 | 626.6 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 29.98 | 294.40 | -1.24 | 2.07 | 0.5215 | 767.0 | 683.5 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 30.50 | 294.36 | -1.28 | 2.10 | 0.5293 | 492.0 | 390.9 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 22.09 | 294.23 | -1.41 | 3.30 | 0.3993 | 729.0 | 596.7 | |
| 0.00 | 2.04 | 0.00 | 1.11 | 22.61 | 294.13 | -1.52 | 3.45 | 0.4077 | 851.0 | 626.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 21.45 | 294.14 | -1.50 | 3.61 | 0.3891 | 849.0 | 717.8 | |
| 0.00 | 1.79 | 0.00 | 1.03 | 29.80 | 293.73 | -1.92 | 3.22 | 0.5194 | 856.0 | 643.5 | |
| 0.00 | 2.38 | 0.00 | 1.38 | 29.87 | 293.42 | -2.23 | 3.72 | 0.5208 | 722.0 | 590.1 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 29.36 | 293.16 | -2.49 | 4.24 | 0.5133 | 797.0 | 714.4 | |
| 0.00 | 2.47 | 0.00 | 1.37 | 25.02 | 292.57 | -3.08 | 6.26 | 0.4479 | 868.0 | 763.5 | |
| 0.00 | 3.06 | 0.00 | 1.70 | 25.48 | 292.36 | -3.28 | 6.55 | 0.4554 | 737.0 | 618.0 | |
| 0.00 | 1.53 | 0.00 | 0.82 | 20.91 | 291.97 | -3.68 | 9.01 | 0.3843 | 729.0 | 631.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 22.32 | 289.82 | -5.83 | 13.19 | 0.4132 | -736.0 | -524.4 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 22.62 | 287.78 | -7.87 | 17.32 | 0.4263 | 758.0 | 572.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
