SDO HMI 2011-12-18 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.90 | 0.00 | 6.44 | -18.87 | 323.46 | 28.36 | 235.86 | 0.5473 | -5.4 | -46.9 | |
|
previous
or next observation for the same group /

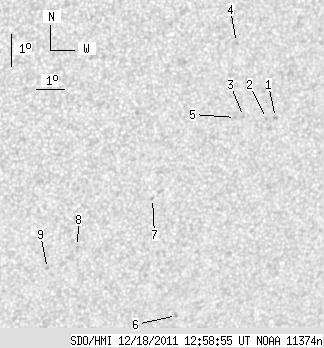

back to the solar disc SDO HMI 2011-12-18 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.87 | -17.19 | 326.02 | 30.93 | 240.58 | 0.5659 | 738.0 | 629.2 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -17.23 | 325.70 | 30.61 | 240.30 | 0.5621 | 689.0 | 522.5 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -17.17 | 324.87 | 29.78 | 239.78 | 0.5513 | 841.0 | 665.5 | |
| 0.00 | 1.53 | 0.00 | 0.89 | -14.92 | 324.26 | 29.16 | 243.16 | 0.5298 | -544.0 | -483.8 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -17.21 | 324.59 | 29.50 | 239.51 | 0.5480 | 749.0 | 583.5 | |
| 0.00 | 1.45 | 0.00 | 0.88 | -23.41 | 323.75 | 28.65 | 229.27 | 0.5829 | -643.0 | -618.9 | |
| 0.00 | 1.36 | 0.00 | 0.80 | -19.74 | 322.11 | 27.02 | 233.31 | 0.5354 | -632.0 | -463.7 | |
| 0.00 | 0.85 | 0.00 | 0.49 | -21.26 | 319.76 | 24.67 | 228.57 | 0.5209 | -572.0 | -465.5 | |
| 0.00 | 1.19 | 0.00 | 0.69 | -21.96 | 318.85 | 23.75 | 226.49 | 0.5171 | -675.0 | -512.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
