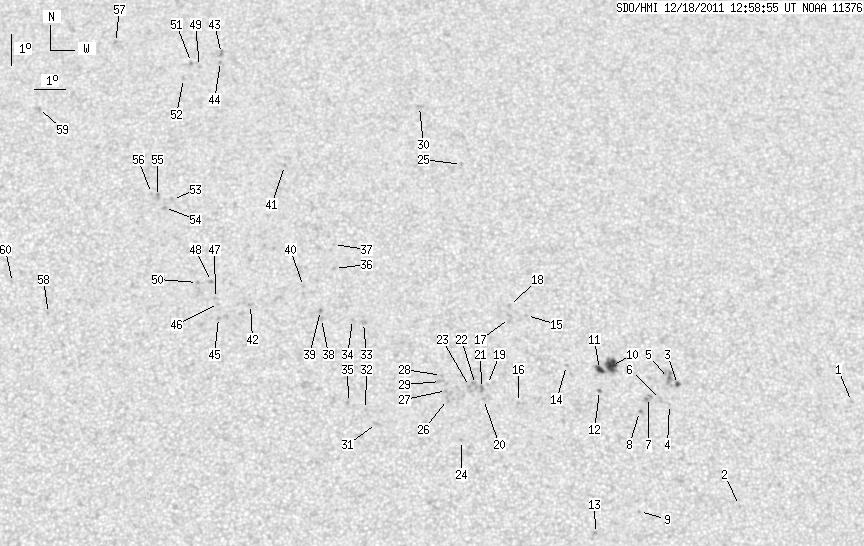

SDO HMI 2011-12-18 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.38 | 114.59 | 7.80 | 62.47 | 21.68 | 301.20 | 6.11 | 344.89 | 0.4175 | -139.4 | -162.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-18 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.76 | 18.89 | 314.50 | 19.40 | 317.58 | 0.4679 | 669.0 | 463.1 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 15.63 | 310.55 | 15.45 | 318.54 | 0.3892 | 702.0 | 464.2 | |
| 1.79 | 1.96 | 0.97 | 1.07 | 19.39 | 308.88 | 13.78 | 327.50 | 0.4200 | -807.8 | -623.3 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 18.76 | 308.57 | 13.47 | 327.21 | 0.4090 | -710.0 | -594.7 | |
| 0.00 | 8.17 | 0.00 | 4.45 | 19.58 | 308.60 | 13.51 | 328.26 | 0.4201 | -1034.0 | -770.2 | |
| 0.00 | 1.96 | 0.00 | 1.06 | 18.91 | 308.29 | 13.19 | 327.95 | 0.4087 | -666.0 | -712.7 | |
| 0.00 | 3.32 | 0.00 | 1.80 | 18.97 | 307.91 | 12.81 | 328.77 | 0.4063 | -635.0 | -771.1 | |
| 0.00 | 0.77 | 0.00 | 0.41 | 18.53 | 307.59 | 12.49 | 328.81 | 0.3977 | -776.0 | -727.6 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 15.43 | 307.38 | 12.28 | 324.47 | 0.3545 | -716.0 | -532.2 | |
| 9.19 | 19.14 | 4.99 | 10.38 | 19.98 | 306.80 | 11.71 | 332.25 | 0.4113 | -944.6 | -618.5 | |
| 3.40 | -10.00 | 1.84 | -10.00 | 19.85 | 306.41 | 11.31 | 332.89 | 0.4066 | -1067.0 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 19.19 | 306.36 | 11.27 | 332.17 | 0.3970 | 778.0 | 680.4 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 14.74 | 305.97 | 10.87 | 326.53 | 0.3323 | -883.0 | -692.5 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 19.97 | 305.36 | 10.27 | 335.19 | 0.4010 | 666.0 | 588.9 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 21.56 | 304.19 | 9.09 | 339.26 | 0.4169 | -656.0 | -493.7 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 18.80 | 303.77 | 8.68 | 337.41 | 0.3735 | -717.0 | -590.3 | |
| 0.00 | 3.91 | 0.00 | 2.13 | 21.46 | 303.64 | 8.54 | 340.33 | 0.4124 | -779.0 | -618.6 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 21.88 | 303.66 | 8.57 | 340.64 | 0.4187 | -638.0 | -494.4 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 19.36 | 302.82 | 7.73 | 340.21 | 0.3764 | -740.0 | -580.8 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 18.89 | 302.68 | 7.58 | 340.11 | 0.3684 | -742.0 | -629.6 | |
| 0.00 | 2.38 | 0.00 | 1.27 | 19.23 | 302.63 | 7.53 | 340.55 | 0.3734 | -906.0 | -835.2 | |
| 0.00 | 3.57 | 0.00 | 1.91 | 19.36 | 302.45 | 7.35 | 341.10 | 0.3744 | -826.0 | -744.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 19.30 | 302.25 | 7.16 | 341.50 | 0.3724 | -993.0 | -778.6 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 17.60 | 301.93 | 6.84 | 340.68 | 0.3446 | -557.0 | -548.7 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 26.48 | 302.38 | 7.29 | 346.31 | 0.4816 | -689.0 | -582.5 | |
| 0.00 | 2.13 | 0.00 | 1.13 | 18.89 | 301.55 | 6.45 | 342.87 | 0.3625 | -815.0 | -752.8 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 19.17 | 301.53 | 6.43 | 343.16 | 0.3668 | -768.0 | -686.2 | |
| 0.00 | 1.11 | 0.00 | 0.59 | 19.64 | 301.39 | 6.29 | 343.89 | 0.3735 | -661.0 | -545.0 | |
| 0.00 | 2.81 | 0.00 | 1.50 | 19.45 | 301.35 | 6.25 | 343.83 | 0.3704 | -645.0 | -586.9 | |
| 0.00 | 2.21 | 0.00 | 1.27 | 28.43 | 301.10 | 6.00 | 349.50 | 0.5064 | -612.0 | -578.2 | |
| 0.00 | 2.89 | 0.00 | 1.52 | 18.13 | 299.30 | 4.21 | 348.15 | 0.3413 | -858.0 | -668.8 | |
| 0.00 | 0.94 | 0.00 | 0.49 | 18.57 | 298.97 | 3.88 | 349.32 | 0.3473 | -936.0 | -699.9 | |
| 0.00 | 2.47 | 0.00 | 1.33 | 21.32 | 298.98 | 3.88 | 350.69 | 0.3914 | -680.0 | -545.9 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 21.42 | 298.63 | 3.53 | 351.54 | 0.3920 | -493.0 | -355.8 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 18.78 | 298.45 | 3.35 | 350.84 | 0.3493 | -688.0 | -575.0 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 23.06 | 298.10 | 3.00 | 353.34 | 0.4170 | -647.0 | -578.8 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 23.84 | 298.08 | 2.98 | 353.60 | 0.4292 | -462.0 | -307.3 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 21.45 | 297.65 | 2.55 | 353.88 | 0.3905 | 948.0 | 668.2 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 21.70 | 297.62 | 2.52 | 354.02 | 0.3946 | 921.0 | 817.5 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 22.47 | 297.09 | 2.00 | 355.44 | 0.4061 | 628.0 | 516.5 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 26.44 | 296.53 | 1.43 | 357.24 | 0.4679 | 911.0 | 707.6 | |
| 0.00 | 1.96 | 0.00 | 1.05 | 21.89 | 295.40 | 0.30 | 359.29 | 0.3956 | 835.0 | 671.4 | |
| 0.00 | 2.64 | 0.00 | 1.53 | 30.25 | 294.43 | -0.66 | 1.10 | 0.5254 | 812.0 | 657.2 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 29.97 | 294.40 | -0.70 | 1.16 | 0.5213 | 740.0 | 683.1 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 21.48 | 294.38 | -0.71 | 1.71 | 0.3890 | 981.0 | 791.0 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 21.93 | 294.38 | -0.71 | 1.68 | 0.3962 | 773.0 | 546.9 | |
| 0.00 | 1.62 | 0.00 | 0.87 | 22.09 | 294.29 | -0.81 | 1.89 | 0.3989 | 634.0 | 621.4 | |
| 0.00 | 1.79 | 0.00 | 0.97 | 22.63 | 294.15 | -0.94 | 2.14 | 0.4077 | 833.0 | 644.5 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 29.80 | 293.69 | -1.41 | 2.37 | 0.5190 | 782.0 | 628.2 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 22.60 | 293.71 | -1.39 | 3.16 | 0.4075 | 707.0 | 556.5 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 29.94 | 293.41 | -1.68 | 2.81 | 0.5213 | 705.0 | 615.9 | |
| 0.00 | 1.70 | 0.00 | 0.98 | 29.38 | 293.15 | -1.95 | 3.32 | 0.5132 | 778.0 | 584.0 | |
| 0.00 | 1.87 | 0.00 | 1.04 | 25.31 | 292.86 | -2.23 | 4.50 | 0.4512 | 724.0 | 520.5 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 25.05 | 292.61 | -2.49 | 5.07 | 0.4474 | 856.0 | 797.7 | |
| 0.00 | 2.81 | 0.00 | 1.56 | 25.41 | 292.37 | -2.73 | 5.46 | 0.4534 | 779.0 | 692.2 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 25.51 | 292.17 | -2.93 | 5.83 | 0.4553 | 578.0 | 422.2 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 30.63 | 290.79 | -4.31 | 6.96 | 0.5349 | 716.0 | 615.6 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 21.61 | 288.98 | -6.12 | 14.28 | 0.4033 | 657.0 | 560.1 | |
| 0.00 | 3.06 | 0.00 | 1.76 | 28.37 | 288.29 | -6.80 | 11.90 | 0.5078 | 770.0 | 453.8 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 22.61 | 287.78 | -7.32 | 16.19 | 0.4237 | 471.0 | 437.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
