SDO HMI 2011-12-18 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.63 | 0.00 | 12.78 | -20.11 | 321.82 | 27.82 | 233.42 | 0.5486 | -610.7 | -458.1 | |
|
previous
or next observation for the same group /

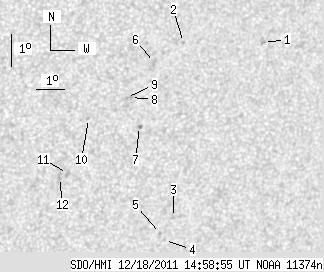

back to the solar disc SDO HMI 2011-12-18 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 1.03 | -17.21 | 326.01 | 32.01 | 241.28 | 0.5796 | 690.0 | 558.6 | |
| 0.00 | 0.94 | 0.00 | 0.55 | -17.24 | 323.14 | 29.15 | 239.19 | 0.5437 | -592.0 | -469.2 | |
| 0.00 | 1.36 | 0.00 | 0.83 | -22.69 | 323.91 | 29.91 | 231.38 | 0.5911 | -742.0 | -557.8 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -23.43 | 323.76 | 29.76 | 230.20 | 0.5950 | -669.0 | -568.1 | |
| 0.00 | 1.11 | 0.00 | 0.68 | -23.21 | 323.55 | 29.56 | 230.35 | 0.5911 | -691.0 | -518.4 | |
| 0.00 | 3.40 | 0.00 | 1.99 | -17.87 | 322.23 | 28.23 | 237.42 | 0.5364 | -793.0 | -592.1 | |
| 0.00 | 1.79 | 0.00 | 1.06 | -19.85 | 322.06 | 28.06 | 234.07 | 0.5486 | -768.0 | -609.7 | |
| 0.00 | 1.28 | 0.00 | 0.75 | -18.96 | 321.57 | 27.58 | 235.08 | 0.5361 | -805.0 | -613.0 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -18.96 | 321.43 | 27.44 | 234.95 | 0.5345 | -803.0 | -668.5 | |
| 0.00 | 1.28 | 0.00 | 0.74 | -19.62 | 320.22 | 26.22 | 232.75 | 0.5250 | -727.0 | -538.8 | |
| 0.00 | 2.64 | 0.00 | 1.54 | -21.35 | 319.80 | 25.80 | 229.62 | 0.5344 | -673.0 | -568.8 | |
| 0.00 | 4.08 | 0.00 | 2.38 | -21.47 | 319.54 | 25.54 | 229.16 | 0.5326 | -755.0 | -435.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
