SDO HMI 2011-12-18 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.44 | 105.71 | 7.35 | 57.79 | 21.88 | 300.36 | 7.46 | 342.23 | 0.4248 | -155.9 | -69.7 | |
|
previous
or next observation for the same group /

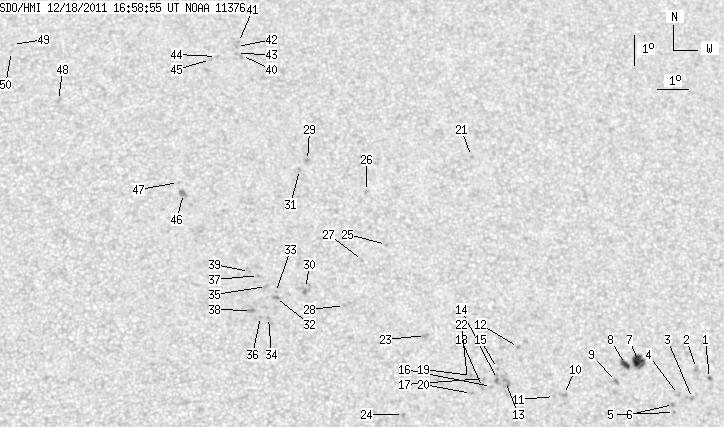

back to the solar disc SDO HMI 2011-12-18 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.89 | 19.39 | 309.10 | 16.21 | 323.26 | 0.4420 | -813.0 | -679.2 | |
| 0.00 | 2.21 | 0.00 | 1.22 | 19.71 | 308.71 | 15.81 | 324.36 | 0.4422 | -805.0 | -719.0 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 18.76 | 308.48 | 15.59 | 323.37 | 0.4284 | -894.0 | -779.8 | |
| 0.00 | 2.13 | 0.00 | 1.16 | 18.88 | 308.04 | 15.15 | 324.32 | 0.4258 | -950.0 | -683.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 18.32 | 307.86 | 14.97 | 323.81 | 0.4171 | -953.0 | -822.8 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 18.57 | 307.85 | 14.96 | 324.20 | 0.4201 | -809.0 | -727.5 | |
| 8.93 | 13.18 | 4.89 | 7.22 | 19.92 | 306.85 | 13.95 | 327.90 | 0.4284 | -955.4 | -699.2 | |
| 4.51 | 5.95 | 2.46 | 3.25 | 19.82 | 306.42 | 13.53 | 328.56 | 0.4236 | -964.3 | -625.9 | |
| 0.00 | 1.79 | 0.00 | 0.97 | 19.28 | 306.08 | 13.19 | 328.47 | 0.4137 | 891.0 | 698.2 | |
| 0.00 | 3.15 | 0.00 | 1.69 | 18.86 | 304.36 | 11.47 | 331.36 | 0.3941 | -869.0 | -615.2 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 18.80 | 304.07 | 11.17 | 331.88 | 0.3910 | -688.0 | -447.5 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 20.34 | 303.03 | 10.13 | 335.89 | 0.4056 | -833.0 | -731.6 | |
| 0.00 | 6.72 | 0.00 | 3.60 | 19.26 | 302.54 | 9.65 | 335.74 | 0.3868 | -659.0 | -712.6 | |
| 0.00 | 4.25 | 0.00 | 2.28 | 19.33 | 302.29 | 9.40 | 336.36 | 0.3860 | -1037.0 | -800.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 19.67 | 302.31 | 9.42 | 336.69 | 0.3913 | -717.0 | -514.1 | |
| 0.00 | 1.28 | 0.00 | 0.68 | 19.10 | 302.09 | 9.20 | 336.57 | 0.3815 | -939.0 | -705.8 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 19.36 | 301.88 | 8.99 | 337.31 | 0.3839 | -856.0 | -711.4 | |
| 0.00 | 2.38 | 0.00 | 1.27 | 19.07 | 301.81 | 8.91 | 337.18 | 0.3792 | -895.0 | -771.6 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 19.45 | 301.48 | 8.58 | 338.33 | 0.3828 | -855.0 | -713.4 | |
| 0.00 | 1.70 | 0.00 | 0.91 | 18.88 | 301.45 | 8.55 | 337.80 | 0.3741 | -890.0 | -731.6 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 26.55 | 301.95 | 9.05 | 343.22 | 0.4897 | -745.0 | -550.4 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 19.32 | 301.34 | 8.45 | 338.50 | 0.3801 | -743.0 | -632.3 | |
| 0.00 | 2.72 | 0.00 | 1.47 | 20.71 | 300.08 | 7.19 | 342.65 | 0.3943 | -856.0 | -720.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 18.22 | 299.29 | 6.39 | 342.43 | 0.3520 | -961.0 | -800.1 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 23.64 | 298.97 | 6.08 | 347.04 | 0.4345 | -641.0 | -520.9 | |
| 0.00 | 2.04 | 0.00 | 1.14 | 25.37 | 298.40 | 5.51 | 349.06 | 0.4591 | -732.0 | -516.8 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 23.11 | 298.18 | 5.28 | 348.42 | 0.4238 | -747.0 | -577.5 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 21.66 | 297.55 | 4.65 | 349.06 | 0.3991 | 794.0 | 660.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 26.40 | 296.50 | 3.61 | 353.09 | 0.4702 | 979.0 | 764.3 | |
| 0.00 | 6.97 | 0.00 | 3.77 | 22.21 | 296.32 | 3.43 | 352.10 | 0.4045 | 612.0 | 698.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 26.10 | 296.23 | 3.34 | 353.52 | 0.4651 | 752.0 | 604.1 | |
| 0.00 | 2.64 | 0.00 | 1.42 | 21.92 | 295.36 | 2.46 | 354.22 | 0.3980 | 1015.0 | 804.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 22.08 | 295.36 | 2.47 | 354.26 | 0.4006 | 425.0 | 520.4 | |
| 0.00 | 1.36 | 0.00 | 0.73 | 21.28 | 295.13 | 2.23 | 354.60 | 0.3874 | 843.0 | 646.7 | |
| 0.00 | 1.96 | 0.00 | 1.06 | 22.27 | 295.08 | 2.18 | 354.96 | 0.4033 | 799.0 | 603.0 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 21.31 | 294.87 | 1.98 | 355.22 | 0.3875 | 814.0 | 683.0 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 22.62 | 294.83 | 1.93 | 355.61 | 0.4086 | 802.0 | 579.5 | |
| 0.00 | 2.81 | 0.00 | 1.51 | 21.50 | 294.59 | 1.70 | 355.93 | 0.3903 | 1074.0 | 915.7 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 22.75 | 294.54 | 1.65 | 356.28 | 0.4103 | 757.0 | 576.3 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 29.96 | 294.38 | 1.48 | 357.53 | 0.5216 | 771.0 | 658.1 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 30.41 | 294.28 | 1.39 | 357.73 | 0.5282 | 611.0 | 585.5 | |
| 0.00 | 1.62 | 0.00 | 0.94 | 30.27 | 294.21 | 1.32 | 357.83 | 0.5261 | 767.0 | 594.4 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 30.03 | 294.21 | 1.31 | 357.82 | 0.5225 | 764.0 | 634.3 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 29.92 | 293.52 | 0.63 | 358.95 | 0.5207 | 660.0 | 561.6 | |
| 0.00 | 1.02 | 0.00 | 0.59 | 29.82 | 293.32 | 0.43 | 359.28 | 0.5191 | 689.0 | 583.6 | |
| 0.00 | 3.91 | 0.00 | 2.17 | 25.30 | 292.42 | -0.47 | 0.95 | 0.4498 | 780.0 | 673.8 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 25.66 | 292.26 | -0.64 | 1.27 | 0.4556 | 633.0 | 381.9 | |
| 0.00 | 2.30 | 0.00 | 1.31 | 28.42 | 288.21 | -4.68 | 8.24 | 0.5030 | 741.0 | 589.4 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 30.35 | 286.54 | -6.35 | 10.31 | 0.5354 | 673.0 | 441.4 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 30.10 | 286.52 | -6.37 | 10.44 | 0.5320 | 655.0 | 508.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
