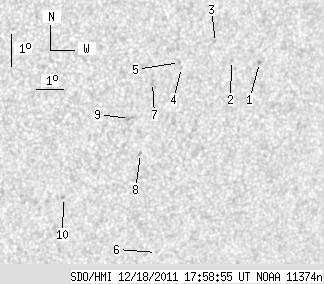

SDO HMI 2011-12-18 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.70 | 0.00 | 8.24 | -18.63 | 322.77 | 30.43 | 237.90 | 0.5694 | -287.0 | -271.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-18 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 0.94 | -17.23 | 325.90 | 33.56 | 242.23 | 0.5989 | 754.0 | 648.9 | |
| 0.00 | 1.19 | 0.00 | 0.73 | -17.18 | 324.86 | 32.51 | 241.66 | 0.5857 | 603.0 | 460.5 | |
| 0.00 | 0.60 | 0.00 | 0.36 | -16.64 | 324.17 | 31.83 | 242.09 | 0.5740 | 646.0 | 547.7 | |
| 0.00 | 0.77 | 0.00 | 0.46 | -17.42 | 323.08 | 30.74 | 240.10 | 0.5649 | -649.0 | -512.2 | |
| 0.00 | 1.53 | 0.00 | 0.92 | -17.27 | 322.98 | 30.64 | 240.27 | 0.5627 | -728.0 | -458.9 | |
| 0.00 | 0.68 | 0.00 | 0.42 | -23.20 | 323.45 | 31.11 | 231.65 | 0.6079 | -572.0 | -394.4 | |
| 0.00 | 1.87 | 0.00 | 1.11 | -17.89 | 322.13 | 29.79 | 238.63 | 0.5559 | -636.0 | -575.1 | |
| 0.00 | 1.36 | 0.00 | 0.82 | -20.09 | 322.13 | 29.79 | 235.16 | 0.5708 | -678.0 | -551.7 | |
| 0.00 | 3.06 | 0.00 | 1.82 | -19.01 | 321.52 | 29.18 | 236.36 | 0.5559 | -813.0 | -549.3 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -21.50 | 319.66 | 27.32 | 230.87 | 0.5526 | -797.0 | -712.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
