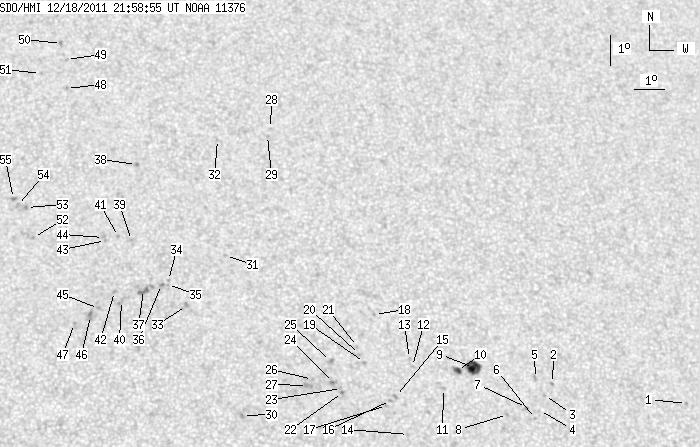

SDO HMI 2011-12-18 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.07 | 109.63 | 8.92 | 60.26 | 21.60 | 300.69 | 10.56 | 336.33 | 0.4366 | -122.9 | 92.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-18 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.74 | 18.77 | 313.87 | 23.74 | 311.89 | 0.5141 | 762.0 | 532.0 | |
| 0.00 | 1.19 | 0.00 | 0.67 | 19.36 | 309.45 | 19.32 | 318.44 | 0.4726 | -773.0 | -577.9 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 18.98 | 309.14 | 19.01 | 318.32 | 0.4652 | -677.0 | -432.5 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 18.51 | 308.92 | 18.79 | 317.91 | 0.4577 | -528.0 | -417.9 | |
| 0.00 | 1.87 | 0.00 | 1.05 | 19.51 | 308.91 | 18.78 | 319.46 | 0.4687 | -815.0 | -639.3 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 18.26 | 308.76 | 18.63 | 317.76 | 0.4532 | -686.0 | -545.5 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 18.60 | 308.50 | 18.37 | 318.67 | 0.4544 | -899.0 | -762.8 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 18.37 | 307.86 | 17.73 | 319.32 | 0.4452 | -899.0 | -670.7 | |
| 13.09 | 14.03 | 7.27 | 7.79 | 19.85 | 306.90 | 16.78 | 323.01 | 0.4531 | -893.3 | -640.7 | |
| 2.98 | 4.00 | 1.65 | 2.21 | 19.75 | 306.37 | 16.24 | 323.73 | 0.4469 | -944.7 | -776.0 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 19.18 | 305.86 | 15.73 | 323.78 | 0.4351 | 790.0 | 619.4 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 19.86 | 304.92 | 14.79 | 326.36 | 0.4353 | 814.0 | 647.3 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 20.12 | 304.85 | 14.72 | 326.83 | 0.4379 | 738.0 | 560.3 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 17.73 | 304.60 | 14.47 | 323.85 | 0.4053 | -682.0 | -553.6 | |
| 0.00 | 2.21 | 0.00 | 1.20 | 18.91 | 304.28 | 14.15 | 326.19 | 0.4175 | -821.0 | -616.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 18.79 | 304.11 | 13.98 | 326.33 | 0.4144 | -837.0 | -553.2 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 18.63 | 303.97 | 13.84 | 326.37 | 0.4111 | -806.0 | -638.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 21.51 | 303.84 | 13.71 | 330.36 | 0.4479 | -722.0 | -566.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 19.98 | 303.38 | 13.25 | 329.31 | 0.4238 | -836.0 | -577.5 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 20.23 | 303.24 | 13.11 | 329.89 | 0.4261 | -840.0 | -645.7 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 20.49 | 303.20 | 13.07 | 330.29 | 0.4292 | -813.0 | -604.8 | |
| 0.00 | 1.96 | 0.00 | 1.06 | 19.03 | 302.59 | 12.47 | 329.58 | 0.4047 | -935.0 | -726.2 | |
| 0.00 | 1.11 | 0.00 | 0.60 | 19.16 | 302.57 | 12.44 | 329.79 | 0.4062 | -601.0 | -612.7 | |
| 0.00 | 2.30 | 0.00 | 1.24 | 19.34 | 302.33 | 12.20 | 330.51 | 0.4068 | -1028.0 | -761.6 | |
| 0.00 | 2.89 | 0.00 | 1.57 | 20.01 | 302.29 | 12.16 | 331.43 | 0.4156 | -804.0 | -576.6 | |
| 0.00 | 1.02 | 0.00 | 0.55 | 19.43 | 301.67 | 11.54 | 331.96 | 0.4030 | -705.0 | -588.1 | |
| 0.00 | 4.51 | 0.00 | 2.43 | 19.24 | 301.49 | 11.36 | 332.08 | 0.3990 | -844.0 | -729.5 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 27.60 | 300.99 | 10.86 | 340.94 | 0.5136 | -705.0 | -510.7 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 27.36 | 300.87 | 10.74 | 340.97 | 0.5096 | -670.0 | -617.3 | |
| 0.00 | 2.13 | 0.00 | 1.13 | 18.29 | 299.38 | 9.25 | 335.55 | 0.3703 | -960.0 | -816.5 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 23.39 | 299.15 | 9.02 | 341.01 | 0.4439 | -604.0 | -492.2 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 27.22 | 299.17 | 9.04 | 343.69 | 0.4998 | -669.0 | -540.4 | |
| 0.00 | 2.38 | 0.00 | 1.29 | 21.77 | 297.79 | 7.66 | 342.49 | 0.4131 | 945.0 | 733.8 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 22.57 | 297.25 | 7.12 | 344.22 | 0.4228 | 452.0 | 362.1 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 22.45 | 297.21 | 7.08 | 344.21 | 0.4207 | 585.0 | 465.3 | |
| 0.00 | 1.79 | 0.00 | 0.97 | 22.44 | 297.02 | 6.89 | 344.61 | 0.4198 | 714.0 | 640.3 | |
| 0.00 | 9.35 | 0.00 | 5.09 | 22.28 | 296.44 | 6.31 | 345.76 | 0.4150 | 686.0 | 744.0 | |
| 0.00 | 1.53 | 0.00 | 0.86 | 26.38 | 296.41 | 6.28 | 348.09 | 0.4771 | 861.0 | 720.1 | |
| 0.00 | 1.62 | 0.00 | 0.89 | 23.87 | 296.12 | 5.99 | 347.36 | 0.4381 | 695.0 | 599.3 | |
| 0.00 | 3.57 | 0.00 | 1.93 | 21.93 | 295.72 | 5.59 | 347.11 | 0.4068 | 708.0 | 661.0 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 24.00 | 295.71 | 5.58 | 348.27 | 0.4388 | 844.0 | 663.5 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 22.22 | 295.50 | 5.37 | 347.75 | 0.4105 | 837.0 | 660.3 | |
| 0.00 | 0.68 | 0.00 | 0.37 | 23.87 | 295.28 | 5.15 | 349.09 | 0.4354 | 858.0 | 638.6 | |
| 0.00 | 1.70 | 0.00 | 0.94 | 23.96 | 295.22 | 5.09 | 349.26 | 0.4367 | 632.0 | 526.5 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 21.67 | 294.97 | 4.84 | 348.64 | 0.4002 | 863.0 | 717.2 | |
| 0.00 | 5.10 | 0.00 | 2.75 | 21.44 | 294.71 | 4.58 | 349.12 | 0.3959 | 991.0 | 787.7 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 21.19 | 294.20 | 4.07 | 350.20 | 0.3903 | 816.0 | 667.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 28.94 | 294.19 | 4.06 | 352.98 | 0.5099 | 783.0 | 602.9 | |
| 0.00 | 1.19 | 0.00 | 0.69 | 29.93 | 294.23 | 4.10 | 353.18 | 0.5248 | 799.0 | 629.8 | |
| 0.00 | 2.13 | 0.00 | 1.24 | 30.49 | 294.09 | 3.96 | 353.57 | 0.5327 | 755.0 | 663.6 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 29.45 | 293.33 | 3.20 | 354.57 | 0.5162 | 536.0 | 433.2 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 23.96 | 292.95 | 2.82 | 353.98 | 0.4315 | 859.0 | 648.0 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 24.94 | 292.75 | 2.62 | 354.65 | 0.4465 | 850.0 | 653.2 | |
| 0.00 | 1.70 | 0.00 | 0.94 | 25.01 | 292.46 | 2.33 | 355.26 | 0.4471 | 729.0 | 556.5 | |
| 0.00 | 2.38 | 0.00 | 1.32 | 25.24 | 292.33 | 2.20 | 355.56 | 0.4506 | 699.0 | 588.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
