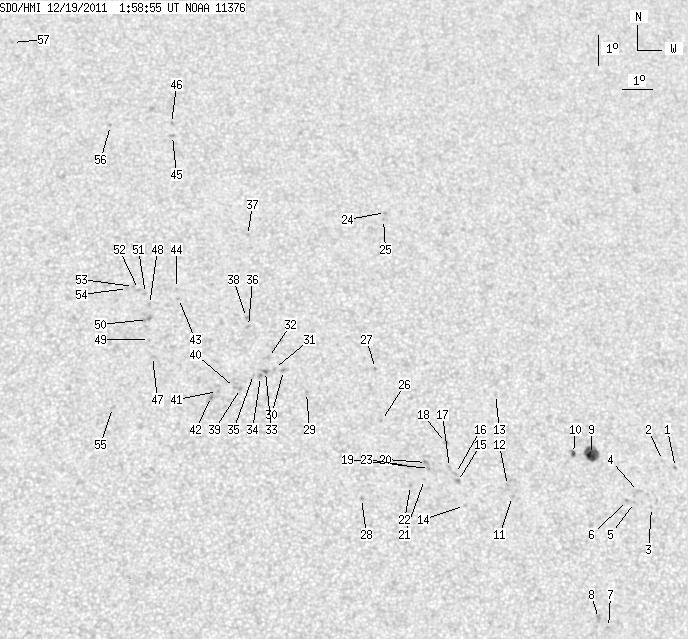

SDO HMI 2011-12-19 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.31 | 97.24 | 8.61 | 53.88 | 21.49 | 300.42 | 12.49 | 332.48 | 0.4503 | -72.1 | 39.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-19 01:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.73 | 19.39 | 309.70 | 21.77 | 315.23 | 0.4988 | -781.0 | -564.1 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 19.60 | 309.29 | 21.36 | 316.08 | 0.4967 | -601.0 | -397.2 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 18.12 | 308.73 | 20.80 | 314.54 | 0.4755 | -658.0 | -420.5 | |
| 0.00 | 2.81 | 0.00 | 1.58 | 18.62 | 308.36 | 20.43 | 315.82 | 0.4766 | -585.0 | -551.0 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 18.27 | 308.18 | 20.25 | 315.51 | 0.4711 | -665.0 | -498.7 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 18.33 | 307.96 | 20.03 | 315.92 | 0.4693 | -701.0 | -550.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | 14.39 | 306.92 | 19.00 | 310.61 | 0.4171 | -823.0 | -631.9 | |
| 0.00 | 3.06 | 0.00 | 1.67 | 14.66 | 306.63 | 18.70 | 311.56 | 0.4163 | -817.0 | -673.8 | |
| 13.69 | 15.48 | 7.70 | 8.70 | 19.77 | 306.94 | 19.01 | 319.53 | 0.4744 | -884.4 | -549.7 | |
| 1.62 | 2.89 | 0.91 | 1.62 | 19.80 | 306.35 | 18.42 | 320.44 | 0.4688 | -768.8 | -649.9 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 18.43 | 304.20 | 16.28 | 321.79 | 0.4317 | -725.0 | -663.8 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 18.77 | 304.08 | 16.15 | 322.52 | 0.4346 | -672.0 | -613.4 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 21.66 | 303.99 | 16.06 | 326.62 | 0.4693 | -605.0 | -395.7 | |
| 0.00 | 0.85 | 0.00 | 0.46 | 18.13 | 302.63 | 14.70 | 324.09 | 0.4130 | -698.0 | -522.6 | |
| 0.00 | 2.81 | 0.00 | 1.53 | 18.89 | 302.47 | 14.54 | 325.48 | 0.4211 | -867.0 | -710.2 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 19.14 | 302.43 | 14.50 | 325.91 | 0.4239 | -692.0 | -592.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 19.33 | 302.25 | 14.32 | 326.50 | 0.4248 | -643.0 | -596.4 | |
| 0.00 | 1.87 | 0.00 | 1.03 | 20.12 | 302.20 | 14.27 | 327.66 | 0.4345 | -783.0 | -630.4 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 19.29 | 301.60 | 13.68 | 327.64 | 0.4187 | -895.0 | -841.9 | |
| 0.00 | 2.30 | 0.00 | 1.25 | 19.48 | 301.52 | 13.60 | 328.04 | 0.4205 | -796.0 | -732.8 | |
| 0.00 | 0.60 | 0.00 | 0.32 | 18.94 | 301.41 | 13.49 | 327.52 | 0.4125 | -864.0 | -683.7 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 18.75 | 300.95 | 13.02 | 328.14 | 0.4060 | -846.0 | -661.6 | |
| 0.00 | 2.89 | 0.00 | 1.57 | 19.38 | 300.87 | 12.95 | 329.14 | 0.4138 | -857.0 | -555.8 | |
| 0.00 | 1.28 | 0.00 | 0.74 | 27.62 | 301.01 | 13.08 | 337.49 | 0.5261 | -678.0 | -524.6 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 27.38 | 300.91 | 12.99 | 337.45 | 0.5223 | -694.0 | -571.1 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 20.80 | 300.19 | 12.26 | 332.23 | 0.4278 | -661.0 | -442.4 | |
| 0.00 | 1.19 | 0.00 | 0.66 | 22.47 | 300.13 | 12.21 | 334.17 | 0.4503 | -746.0 | -594.9 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 18.34 | 299.36 | 11.43 | 330.80 | 0.3874 | -908.0 | -770.2 | |
| 0.00 | 1.53 | 0.00 | 0.84 | 21.69 | 297.83 | 9.91 | 337.78 | 0.4245 | 815.0 | 695.3 | |
| 0.00 | 2.21 | 0.00 | 1.21 | 22.39 | 297.14 | 9.21 | 339.81 | 0.4308 | 845.0 | 669.3 | |
| 0.00 | 1.11 | 0.00 | 0.61 | 22.45 | 296.85 | 8.93 | 340.44 | 0.4302 | 728.0 | 607.0 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 22.81 | 296.68 | 8.75 | 341.08 | 0.4345 | 580.0 | 486.8 | |
| 0.00 | 2.89 | 0.00 | 1.58 | 22.36 | 296.56 | 8.63 | 340.96 | 0.4272 | 964.0 | 789.5 | |
| 0.00 | 1.96 | 0.00 | 1.07 | 22.20 | 296.39 | 8.46 | 341.18 | 0.4239 | 748.0 | 697.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 22.26 | 296.16 | 8.24 | 341.69 | 0.4237 | 722.0 | 561.6 | |
| 0.00 | 1.70 | 0.00 | 0.94 | 23.81 | 296.10 | 8.17 | 343.00 | 0.4466 | 862.0 | 724.6 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 26.82 | 296.27 | 8.34 | 344.66 | 0.4916 | 388.0 | 393.5 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 24.11 | 296.05 | 8.12 | 343.30 | 0.4507 | 807.0 | 645.0 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 21.81 | 295.72 | 7.79 | 342.25 | 0.4148 | 874.0 | 706.5 | |
| 0.00 | 1.28 | 0.00 | 0.69 | 21.84 | 295.53 | 7.60 | 342.68 | 0.4143 | 850.0 | 681.1 | |
| 0.00 | 1.19 | 0.00 | 0.65 | 21.71 | 294.98 | 7.05 | 343.77 | 0.4098 | 919.0 | 821.9 | |
| 0.00 | 2.21 | 0.00 | 1.20 | 21.55 | 294.78 | 6.85 | 344.09 | 0.4065 | 1078.0 | 867.3 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 24.72 | 293.87 | 5.94 | 347.93 | 0.4515 | 829.0 | 608.2 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 25.05 | 293.82 | 5.89 | 348.20 | 0.4564 | 673.0 | 588.5 | |
| 0.00 | 1.79 | 0.00 | 1.04 | 30.22 | 293.97 | 6.04 | 350.15 | 0.5337 | 656.0 | 558.1 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 30.64 | 293.96 | 6.03 | 350.32 | 0.5397 | 742.0 | 619.3 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 22.83 | 292.94 | 5.02 | 348.87 | 0.4194 | 705.0 | 681.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | 24.52 | 292.91 | 4.98 | 349.74 | 0.4456 | 642.0 | 590.4 | |
| 0.00 | 0.94 | 0.00 | 0.51 | 23.38 | 292.87 | 4.94 | 349.31 | 0.4278 | 650.0 | 518.5 | |
| 0.00 | 3.49 | 0.00 | 1.92 | 24.03 | 292.83 | 4.90 | 349.69 | 0.4378 | 861.0 | 761.8 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 24.89 | 292.80 | 4.87 | 350.12 | 0.4508 | 781.0 | 555.9 | |
| 0.00 | 1.62 | 0.00 | 0.90 | 25.02 | 292.57 | 4.65 | 350.62 | 0.4522 | 804.0 | 628.5 | |
| 0.00 | 0.85 | 0.00 | 0.47 | 25.12 | 292.41 | 4.49 | 350.97 | 0.4534 | 793.0 | 629.8 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 25.05 | 292.22 | 4.29 | 351.34 | 0.4519 | 606.0 | 524.4 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 21.19 | 291.62 | 3.69 | 351.11 | 0.3899 | 764.0 | 574.6 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 30.56 | 291.86 | 3.93 | 353.64 | 0.5343 | 784.0 | 658.1 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 33.50 | 288.51 | 0.59 | 359.14 | 0.5739 | 717.0 | 544.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
