SDO HMI 2011-12-19 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.22 | 0.00 | 6.43 | -19.11 | 321.40 | 34.57 | 239.99 | 0.6220 | -504.8 | -498.5 | |
|
previous
or next observation for the same group /

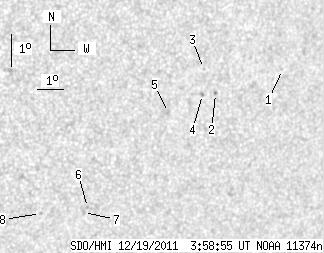

back to the solar disc SDO HMI 2011-12-19 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.39 | -16.98 | 325.80 | 38.96 | 245.51 | 0.6632 | 613.0 | 506.6 | |
| 0.00 | 1.19 | 0.00 | 0.76 | -17.75 | 323.36 | 36.53 | 243.20 | 0.6374 | -683.0 | -525.6 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -16.99 | 322.72 | 35.89 | 244.00 | 0.6261 | -242.0 | -339.2 | |
| 0.00 | 1.45 | 0.00 | 0.92 | -17.79 | 322.87 | 36.03 | 242.89 | 0.6316 | -764.0 | -659.8 | |
| 0.00 | 2.21 | 0.00 | 1.39 | -18.36 | 321.70 | 34.87 | 241.38 | 0.6204 | -732.0 | -555.7 | |
| 0.00 | 0.94 | 0.00 | 0.58 | -21.35 | 319.37 | 32.53 | 235.44 | 0.6105 | -759.0 | -618.0 | |
| 0.00 | 1.87 | 0.00 | 1.17 | -21.51 | 319.26 | 32.42 | 235.13 | 0.6102 | -820.0 | -631.8 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -21.56 | 317.66 | 30.83 | 233.86 | 0.5924 | -651.0 | -539.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
