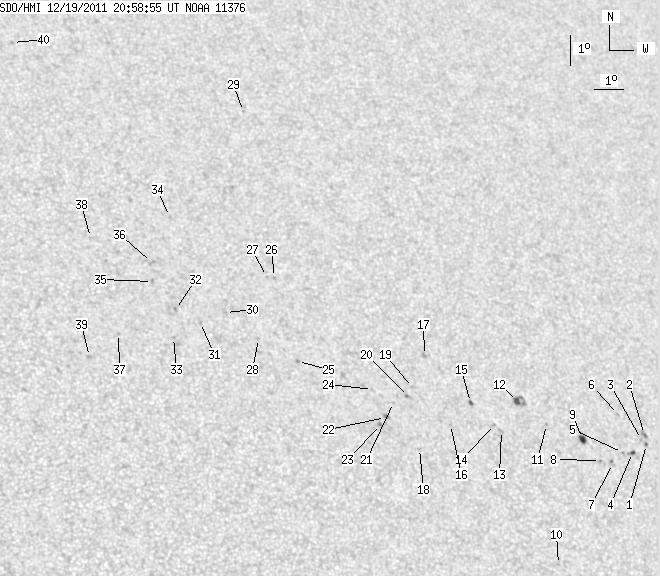

SDO HMI 2011-12-19 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.74 | 68.10 | 7.20 | 40.72 | 20.48 | 303.40 | 25.89 | 312.84 | 0.5612 | -220.2 | -264.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-19 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.11 | 1.11 | 0.70 | 0.70 | 18.50 | 310.89 | 33.38 | 302.88 | 0.6236 | -577.6 | -558.0 | |
| 0.00 | 2.98 | 0.00 | 1.88 | 18.81 | 310.88 | 33.38 | 303.33 | 0.6256 | -747.0 | -598.5 | |
| 0.00 | 1.28 | 0.00 | 0.81 | 18.66 | 310.74 | 33.23 | 303.21 | 0.6228 | -859.0 | -683.6 | |
| 1.36 | 3.15 | 0.85 | 1.97 | 18.24 | 310.31 | 32.80 | 302.92 | 0.6153 | -719.4 | -636.4 | |
| 0.00 | 0.85 | 0.00 | 0.53 | 18.24 | 309.94 | 32.43 | 303.19 | 0.6109 | -696.0 | -646.6 | |
| 0.00 | 1.28 | 0.00 | 0.80 | 19.43 | 310.05 | 32.55 | 304.81 | 0.6202 | -745.0 | -598.7 | |
| 0.00 | 2.13 | 0.00 | 1.32 | 17.89 | 309.50 | 31.99 | 303.00 | 0.6035 | -658.0 | -685.9 | |
| 0.00 | 1.11 | 0.00 | 0.68 | 17.97 | 309.08 | 31.57 | 303.45 | 0.5992 | -719.0 | -597.9 | |
| 3.74 | 5.19 | 2.31 | 3.20 | 18.66 | 308.56 | 31.06 | 304.85 | 0.5979 | 692.0 | 406.5 | |
| 0.00 | 1.11 | 0.00 | 0.66 | 14.73 | 307.01 | 29.51 | 300.04 | 0.5524 | -821.0 | -593.0 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 19.08 | 307.34 | 29.84 | 306.47 | 0.5870 | -760.0 | -645.6 | |
| 3.57 | 8.59 | 2.17 | 5.23 | 19.79 | 306.44 | 28.94 | 308.29 | 0.5823 | -864.2 | -653.3 | |
| 0.00 | 1.96 | 0.00 | 1.17 | 18.87 | 305.70 | 28.19 | 307.62 | 0.5665 | -785.0 | -628.1 | |
| 0.00 | 0.85 | 0.00 | 0.51 | 19.05 | 305.48 | 27.98 | 308.09 | 0.5656 | -816.0 | -569.9 | |
| 1.53 | 2.04 | 0.92 | 1.22 | 19.74 | 304.76 | 27.26 | 309.78 | 0.5631 | 733.4 | 632.5 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 19.03 | 303.93 | 26.43 | 309.56 | 0.5479 | -704.0 | -503.6 | |
| 0.00 | 1.87 | 0.00 | 1.12 | 21.22 | 303.42 | 25.91 | 313.24 | 0.5614 | -805.0 | -646.0 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 18.27 | 302.74 | 25.23 | 309.62 | 0.5276 | -755.0 | -513.8 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 20.19 | 302.81 | 25.30 | 312.42 | 0.5456 | -643.0 | -488.7 | |
| 0.00 | 2.30 | 0.00 | 1.35 | 19.90 | 302.62 | 25.12 | 312.20 | 0.5409 | -767.0 | -629.7 | |
| 0.00 | 1.19 | 0.00 | 0.70 | 19.71 | 302.07 | 24.56 | 312.51 | 0.5331 | -712.0 | -531.3 | |
| 0.43 | 1.96 | 0.25 | 1.14 | 19.23 | 301.72 | 24.21 | 312.20 | 0.5248 | -743.6 | -816.8 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 19.01 | 301.51 | 24.01 | 312.09 | 0.5205 | -963.0 | -817.0 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 20.11 | 301.42 | 23.91 | 313.84 | 0.5298 | -687.0 | -455.0 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 20.98 | 298.99 | 21.48 | 318.01 | 0.5132 | -799.0 | -664.9 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 23.68 | 298.64 | 21.13 | 322.04 | 0.5389 | -699.0 | -546.2 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 23.71 | 298.37 | 20.86 | 322.42 | 0.5367 | -763.0 | -665.5 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 21.70 | 297.78 | 20.27 | 320.59 | 0.5091 | 718.0 | 575.0 | |
| 0.00 | 1.11 | 0.00 | 0.68 | 29.22 | 298.61 | 21.10 | 328.30 | 0.6002 | -628.0 | -443.5 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 22.53 | 296.78 | 19.27 | 323.04 | 0.5091 | 742.0 | 566.1 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 22.20 | 295.89 | 18.38 | 323.87 | 0.4972 | 592.0 | 448.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | 22.61 | 295.11 | 17.60 | 325.53 | 0.4953 | 665.0 | 529.6 | |
| 0.00 | 0.85 | 0.00 | 0.48 | 21.71 | 294.92 | 17.42 | 324.66 | 0.4828 | 790.0 | 582.9 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 25.65 | 295.34 | 17.83 | 328.73 | 0.5340 | 652.0 | 526.1 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 23.51 | 294.46 | 16.95 | 327.59 | 0.5008 | 815.0 | 686.7 | |
| 0.00 | 1.70 | 0.00 | 0.98 | 24.13 | 294.51 | 17.00 | 328.23 | 0.5088 | 936.0 | 743.0 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 21.82 | 293.12 | 15.61 | 327.64 | 0.4687 | 756.0 | 523.7 | |
| 0.00 | 1.02 | 0.00 | 0.58 | 24.94 | 292.55 | 15.05 | 332.05 | 0.5043 | 685.0 | 487.2 | |
| 0.00 | 1.70 | 0.00 | 0.94 | 21.08 | 292.08 | 14.58 | 328.44 | 0.4507 | 839.0 | 608.5 | |
| 0.00 | 1.70 | 0.00 | 1.03 | 31.56 | 290.76 | 13.25 | 340.26 | 0.5804 | 598.0 | 454.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
