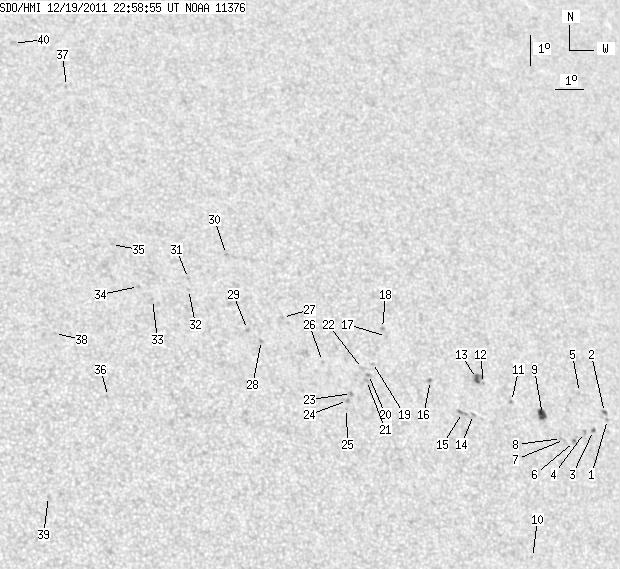

SDO HMI 2011-12-19 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.08 | 64.19 | 7.55 | 38.81 | 20.20 | 303.81 | 27.40 | 310.86 | 0.5739 | -236.4 | -313.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-19 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 0.82 | 18.60 | 310.98 | 34.57 | 302.22 | 0.6380 | -738.0 | -566.3 | |
| 1.36 | 2.47 | 0.87 | 1.58 | 18.82 | 310.91 | 34.51 | 302.57 | 0.6386 | -646.2 | -513.5 | |
| 1.45 | 1.70 | 0.92 | 1.08 | 18.25 | 310.37 | 33.96 | 302.13 | 0.6289 | -641.5 | -630.3 | |
| 0.00 | 2.04 | 0.00 | 1.29 | 18.18 | 310.02 | 33.61 | 302.28 | 0.6244 | -592.0 | -597.2 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 19.44 | 310.12 | 33.71 | 303.98 | 0.6335 | -623.0 | -504.7 | |
| 0.00 | 1.45 | 0.00 | 0.91 | 17.89 | 309.58 | 33.18 | 302.17 | 0.6175 | -820.0 | -706.1 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 17.95 | 309.22 | 32.82 | 302.51 | 0.6137 | -699.0 | -629.6 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 17.98 | 309.12 | 32.72 | 302.63 | 0.6127 | -694.0 | -606.2 | |
| 6.04 | 7.06 | 3.77 | 4.41 | 18.72 | 308.58 | 32.17 | 304.10 | 0.6113 | 659.9 | 473.6 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 14.27 | 307.40 | 30.99 | 298.22 | 0.5686 | -628.0 | -526.9 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 19.12 | 307.52 | 31.12 | 305.49 | 0.6020 | -683.0 | -617.5 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 19.67 | 306.62 | 30.22 | 307.02 | 0.5958 | -696.0 | -563.4 | |
| 3.23 | 6.72 | 1.99 | 4.13 | 19.83 | 306.40 | 29.99 | 307.43 | 0.5945 | -835.3 | -642.5 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 18.69 | 306.06 | 29.66 | 306.07 | 0.5821 | -678.0 | -524.8 | |
| 0.00 | 3.49 | 0.00 | 2.11 | 18.75 | 305.68 | 29.27 | 306.48 | 0.5781 | -795.0 | -623.5 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 19.74 | 304.73 | 28.32 | 308.79 | 0.5751 | 880.0 | 743.5 | |
| 0.00 | 0.77 | 0.00 | 0.46 | 21.12 | 303.43 | 27.03 | 311.99 | 0.5726 | -627.0 | -545.2 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 21.38 | 303.34 | 26.94 | 312.43 | 0.5738 | -688.0 | -595.8 | |
| 0.00 | 0.68 | 0.00 | 0.41 | 20.29 | 302.78 | 26.37 | 311.46 | 0.5582 | -601.0 | -602.8 | |
| 0.00 | 1.28 | 0.00 | 0.76 | 19.90 | 302.57 | 26.16 | 311.12 | 0.5526 | -846.0 | -741.2 | |
| 0.00 | 1.53 | 0.00 | 0.91 | 19.71 | 302.46 | 26.06 | 310.95 | 0.5497 | -797.0 | -691.1 | |
| 0.00 | 2.64 | 0.00 | 1.56 | 20.09 | 302.39 | 25.99 | 311.58 | 0.5523 | -498.0 | -451.8 | |
| 0.00 | 1.53 | 0.00 | 0.90 | 19.30 | 301.87 | 25.47 | 310.95 | 0.5395 | -965.0 | -831.3 | |
| 0.00 | 1.62 | 0.00 | 0.95 | 19.07 | 301.70 | 25.29 | 310.80 | 0.5356 | -939.0 | -766.9 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 18.82 | 301.62 | 25.22 | 310.50 | 0.5325 | -730.0 | -559.7 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 20.30 | 301.04 | 24.63 | 313.32 | 0.5395 | -624.0 | -505.3 | |
| 0.00 | 1.36 | 0.00 | 0.80 | 21.69 | 299.89 | 23.49 | 316.58 | 0.5409 | -687.0 | -539.7 | |
| 0.00 | 1.53 | 0.00 | 0.89 | 20.94 | 299.04 | 22.64 | 316.55 | 0.5248 | -794.0 | -656.6 | |
| 0.00 | 1.70 | 0.00 | 0.99 | 21.29 | 298.62 | 22.22 | 317.55 | 0.5240 | -670.0 | -510.7 | |
| 0.00 | 1.28 | 0.00 | 0.75 | 23.71 | 298.30 | 21.90 | 321.13 | 0.5464 | -658.0 | -565.1 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 22.92 | 296.86 | 20.46 | 321.95 | 0.5245 | 687.0 | 525.2 | |
| 0.00 | 0.51 | 0.00 | 0.30 | 22.56 | 296.80 | 20.40 | 321.57 | 0.5200 | 744.0 | 616.5 | |
| 0.00 | 1.19 | 0.00 | 0.68 | 22.22 | 295.53 | 19.13 | 322.86 | 0.5045 | 712.0 | 485.4 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 22.64 | 295.12 | 18.72 | 323.97 | 0.5056 | 732.0 | 547.6 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 24.00 | 294.40 | 18.00 | 326.65 | 0.5155 | 577.0 | 514.1 | |
| 0.00 | 0.34 | 0.00 | 0.19 | 19.12 | 293.68 | 17.28 | 321.31 | 0.4510 | 561.0 | 555.8 | |
| 0.00 | 1.28 | 0.00 | 0.77 | 29.28 | 293.69 | 17.28 | 333.07 | 0.5745 | 763.0 | 588.9 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 21.11 | 292.13 | 15.73 | 326.56 | 0.4609 | 749.0 | 642.5 | |
| 0.00 | 1.19 | 0.00 | 0.64 | 15.98 | 291.46 | 15.06 | 320.13 | 0.3913 | 894.0 | 677.1 | |
| 0.00 | 2.04 | 0.00 | 1.24 | 30.76 | 292.06 | 15.65 | 336.47 | 0.5830 | 504.0 | 442.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
