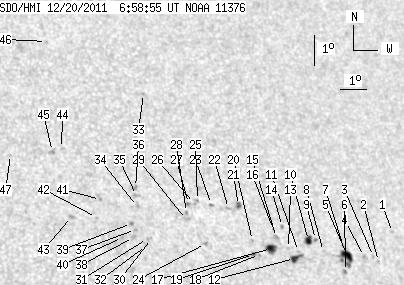

SDO HMI 2011-12-20 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.83 | 93.20 | 16.29 | 59.94 | 19.13 | 306.42 | 34.39 | 303.33 | 0.6402 | -322.8 | -341.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-20 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.65 | 19.16 | 312.10 | 40.08 | 299.73 | 0.7027 | 503.0 | 419.3 | |
| 0.00 | 1.28 | 0.00 | 0.87 | 18.23 | 311.27 | 39.25 | 298.95 | 0.6891 | -491.0 | -313.7 | |
| 0.00 | 1.02 | 0.00 | 0.69 | 18.38 | 311.11 | 39.09 | 299.24 | 0.6881 | -577.0 | -417.6 | |
| 0.00 | 1.70 | 0.00 | 1.15 | 18.38 | 310.75 | 38.73 | 299.43 | 0.6840 | -760.0 | -626.8 | |
| 6.81 | 15.31 | 4.56 | 10.25 | 18.40 | 310.08 | 38.05 | 299.83 | 0.6766 | -747.9 | -723.4 | |
| 0.00 | 1.70 | 0.00 | 1.13 | 17.89 | 309.87 | 37.85 | 299.27 | 0.6716 | -999.0 | -862.4 | |
| 0.00 | 0.51 | 0.00 | 0.34 | 18.68 | 309.99 | 37.97 | 300.26 | 0.6772 | -220.0 | -228.7 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 18.51 | 309.16 | 37.14 | 300.52 | 0.6669 | -208.0 | -209.6 | |
| 0.00 | 1.11 | 0.00 | 0.73 | 18.88 | 308.95 | 36.92 | 301.16 | 0.6666 | 548.0 | 383.0 | |
| 4.59 | 5.61 | 3.03 | 3.71 | 18.84 | 308.66 | 36.64 | 301.28 | 0.6632 | 657.5 | 362.7 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 18.49 | 308.19 | 36.16 | 301.09 | 0.6558 | 675.0 | 482.2 | |
| 3.91 | 5.78 | 2.55 | 3.77 | 18.27 | 307.98 | 35.95 | 300.91 | 0.6522 | 793.8 | 580.2 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 18.58 | 307.82 | 35.80 | 301.44 | 0.6522 | -271.0 | -216.6 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 19.27 | 307.76 | 35.74 | 302.43 | 0.6556 | -624.0 | -492.4 | |
| 0.00 | 2.47 | 0.00 | 1.60 | 18.92 | 307.45 | 35.42 | 302.16 | 0.6499 | -907.0 | -659.1 | |
| 0.00 | 1.02 | 0.00 | 0.66 | 19.17 | 307.39 | 35.37 | 302.54 | 0.6508 | -591.0 | -428.4 | |
| 5.95 | 8.17 | 3.85 | 5.28 | 18.57 | 307.17 | 35.14 | 301.85 | 0.6447 | -779.1 | -599.8 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 18.37 | 306.67 | 34.64 | 301.91 | 0.6378 | -688.0 | -603.2 | |
| 1.19 | 1.53 | 0.76 | 0.98 | 18.37 | 306.44 | 34.41 | 302.05 | 0.6352 | -694.2 | -619.2 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 18.81 | 306.50 | 34.48 | 302.63 | 0.6386 | -670.0 | -590.7 | |
| 2.38 | 2.72 | 1.54 | 1.76 | 19.91 | 306.24 | 34.21 | 304.34 | 0.6426 | -797.5 | -746.8 | |
| 0.00 | 1.87 | 0.00 | 1.20 | 19.81 | 305.83 | 33.81 | 304.48 | 0.6374 | 514.0 | 349.2 | |
| 0.00 | 1.45 | 0.00 | 0.92 | 19.92 | 305.22 | 33.20 | 305.09 | 0.6314 | 627.0 | 419.6 | |
| 0.00 | 1.70 | 0.00 | 1.07 | 18.68 | 304.72 | 32.69 | 303.72 | 0.6175 | -753.0 | -557.5 | |
| 0.00 | 1.62 | 0.00 | 1.02 | 20.04 | 304.73 | 32.70 | 305.62 | 0.6267 | 729.0 | 574.6 | |
| 0.00 | 0.51 | 0.00 | 0.32 | 19.94 | 304.59 | 32.57 | 305.59 | 0.6245 | 655.0 | 601.5 | |
| 0.00 | 1.45 | 0.00 | 0.91 | 19.94 | 304.37 | 32.34 | 305.76 | 0.6220 | 941.0 | 740.2 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 19.65 | 304.23 | 32.20 | 305.46 | 0.6185 | 845.0 | 729.5 | |
| 0.00 | 2.81 | 0.00 | 1.76 | 19.43 | 304.18 | 32.15 | 305.19 | 0.6164 | 284.0 | 265.4 | |
| 0.00 | 0.60 | 0.00 | 0.37 | 18.81 | 302.76 | 30.74 | 305.42 | 0.5959 | -593.0 | -533.3 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 18.81 | 302.62 | 30.59 | 305.54 | 0.5942 | -752.0 | -585.0 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 18.59 | 302.54 | 30.51 | 305.28 | 0.5917 | -793.0 | -617.1 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 23.46 | 303.56 | 31.53 | 311.12 | 0.6392 | -682.0 | -576.9 | |
| 0.00 | 1.70 | 0.00 | 1.05 | 19.82 | 302.46 | 30.44 | 307.11 | 0.5999 | -776.0 | -629.1 | |
| 0.00 | 2.55 | 0.00 | 1.58 | 20.17 | 302.50 | 30.48 | 307.57 | 0.6029 | -715.0 | -493.6 | |
| 0.00 | 1.53 | 0.00 | 0.95 | 20.42 | 302.52 | 30.49 | 307.91 | 0.6050 | -731.0 | -559.7 | |
| 0.00 | 1.36 | 0.00 | 0.83 | 19.09 | 302.24 | 30.21 | 306.25 | 0.5920 | -798.0 | -728.8 | |
| 0.00 | 2.38 | 0.00 | 1.46 | 18.83 | 302.11 | 30.09 | 305.99 | 0.5887 | -884.0 | -696.2 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 19.28 | 302.13 | 30.11 | 306.61 | 0.5921 | -858.0 | -777.5 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 18.83 | 301.72 | 29.69 | 306.31 | 0.5841 | -764.0 | -636.9 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 20.02 | 301.16 | 29.14 | 308.52 | 0.5870 | -753.0 | -618.1 | |
| 0.00 | 0.68 | 0.00 | 0.41 | 19.45 | 300.91 | 28.88 | 307.93 | 0.5796 | -745.0 | -652.0 | |
| 0.00 | 2.13 | 0.00 | 1.28 | 19.47 | 300.02 | 27.99 | 308.77 | 0.5698 | -730.0 | -591.8 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 21.63 | 300.10 | 28.07 | 311.75 | 0.5886 | -579.0 | -492.3 | |
| 0.00 | 2.98 | 0.00 | 1.81 | 21.53 | 299.75 | 27.73 | 311.94 | 0.5841 | -773.0 | -572.8 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 25.12 | 300.36 | 28.34 | 316.04 | 0.6214 | -680.0 | -605.4 | |
| 0.00 | 0.43 | 0.00 | 0.26 | 21.42 | 298.23 | 26.21 | 313.29 | 0.5670 | -298.0 | -228.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
