SDO HMI 2011-12-20 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.37 | 146.11 | 26.39 | 95.83 | 19.21 | 306.16 | 35.77 | 302.61 | 0.6566 | -263.2 | -200.8 | |
|
previous
or next observation for the same group /

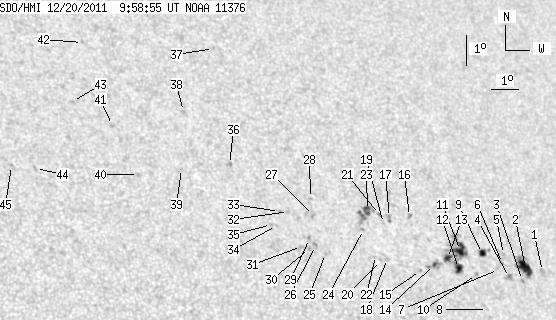

back to the solar disc SDO HMI 2011-12-20 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.30 | 0.00 | 1.60 | 18.31 | 310.96 | 40.57 | 298.37 | 0.7041 | -597.0 | -427.6 | |
| 12.25 | 18.29 | 8.43 | 12.59 | 18.42 | 310.30 | 39.91 | 298.86 | 0.6974 | -810.6 | -507.8 | |
| 0.00 | 1.53 | 0.00 | 1.05 | 18.01 | 310.06 | 39.67 | 298.44 | 0.6928 | -839.0 | -753.1 | |
| 0.00 | 4.00 | 0.00 | 2.72 | 18.09 | 309.56 | 39.17 | 298.82 | 0.6876 | -445.0 | -444.6 | |
| 0.00 | 1.45 | 0.00 | 0.99 | 18.81 | 309.52 | 39.13 | 299.80 | 0.6908 | -216.0 | -147.1 | |
| 0.00 | 1.45 | 0.00 | 0.98 | 18.53 | 309.40 | 39.01 | 299.49 | 0.6880 | -702.0 | -580.6 | |
| 0.00 | 0.51 | 0.00 | 0.35 | 18.34 | 309.19 | 38.80 | 299.35 | 0.6847 | -408.0 | -427.5 | |
| 0.00 | 0.34 | 0.00 | 0.23 | 17.08 | 308.43 | 38.04 | 298.05 | 0.6698 | -512.0 | -482.0 | |
| 3.57 | 6.55 | 2.41 | 4.43 | 18.83 | 308.68 | 38.29 | 300.30 | 0.6816 | 655.9 | 438.7 | |
| 0.00 | 1.53 | 0.00 | 1.02 | 18.16 | 308.27 | 37.88 | 299.63 | 0.6735 | 645.0 | 467.7 | |
| 8.93 | 45.08 | 5.96 | 29.98 | 18.91 | 307.83 | 37.44 | 300.90 | 0.6726 | -721.5 | -311.7 | |
| 5.44 | -11.00 | 3.61 | -11.00 | 18.34 | 307.61 | 37.22 | 300.26 | 0.6670 | 683.6 | 999999 | |
| 3.06 | -11.00 | 2.02 | -11.00 | 18.65 | 307.25 | 36.86 | 300.89 | 0.6647 | -744.8 | 999999 | |
| 1.53 | 7.40 | 1.00 | 4.85 | 18.45 | 306.70 | 36.31 | 300.96 | 0.6574 | -742.1 | -601.8 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 18.25 | 306.11 | 35.72 | 301.05 | 0.6496 | -572.0 | -494.1 | |
| 0.00 | 1.96 | 0.00 | 1.29 | 19.95 | 306.11 | 35.72 | 303.38 | 0.6596 | -935.0 | -665.9 | |
| 0.00 | 2.89 | 0.00 | 1.88 | 19.91 | 305.33 | 34.94 | 303.85 | 0.6507 | 680.0 | 518.0 | |
| 0.00 | 2.04 | 0.00 | 1.31 | 18.61 | 304.94 | 34.55 | 302.32 | 0.6383 | -619.0 | -479.0 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 19.71 | 305.05 | 34.66 | 303.77 | 0.6464 | 547.0 | 417.4 | |
| 0.00 | 1.11 | 0.00 | 0.71 | 18.54 | 304.66 | 34.27 | 302.41 | 0.6347 | -504.0 | -455.8 | |
| 0.00 | 1.19 | 0.00 | 0.77 | 20.00 | 304.97 | 34.58 | 304.22 | 0.6473 | 487.0 | 368.2 | |
| 0.00 | 0.51 | 0.00 | 0.33 | 18.70 | 304.51 | 34.12 | 302.74 | 0.6339 | -523.0 | -531.0 | |
| 4.59 | 13.95 | 2.96 | 8.98 | 20.12 | 304.54 | 34.15 | 304.68 | 0.6434 | 708.8 | 704.4 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 19.51 | 304.24 | 33.85 | 304.06 | 0.6361 | 509.0 | 449.5 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 18.73 | 302.65 | 32.26 | 304.13 | 0.6129 | -674.0 | -544.0 | |
| 0.00 | 2.38 | 0.00 | 1.49 | 18.98 | 302.33 | 31.94 | 304.72 | 0.6110 | -720.0 | -702.4 | |
| 0.00 | 1.87 | 0.00 | 1.18 | 19.93 | 302.47 | 32.08 | 305.95 | 0.6191 | -767.0 | -635.8 | |
| 0.00 | 1.28 | 0.00 | 0.81 | 20.47 | 302.48 | 32.09 | 306.69 | 0.6231 | -692.0 | -540.6 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 19.19 | 302.16 | 31.77 | 305.16 | 0.6105 | -865.0 | -707.5 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 18.88 | 302.09 | 31.70 | 304.76 | 0.6076 | -874.0 | -731.1 | |
| 0.00 | 1.96 | 0.00 | 1.21 | 18.94 | 301.81 | 31.42 | 305.07 | 0.6048 | -798.0 | -677.2 | |
| 0.00 | 1.53 | 0.00 | 0.95 | 20.04 | 301.57 | 31.18 | 306.82 | 0.6099 | -677.0 | -558.6 | |
| 0.00 | 1.28 | 0.00 | 0.79 | 20.03 | 301.24 | 30.85 | 307.09 | 0.6062 | -734.0 | -546.3 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 19.59 | 301.04 | 30.65 | 306.62 | 0.6006 | -596.0 | -490.7 | |
| 0.00 | 1.19 | 0.00 | 0.73 | 19.62 | 300.86 | 30.47 | 306.81 | 0.5989 | -730.0 | -539.4 | |
| 0.00 | 2.64 | 0.00 | 1.63 | 21.51 | 299.74 | 29.35 | 310.42 | 0.6013 | -662.0 | -574.5 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 25.29 | 300.08 | 29.69 | 315.02 | 0.6359 | -629.0 | -547.5 | |
| 0.00 | 1.53 | 0.00 | 0.95 | 23.20 | 298.45 | 28.06 | 313.87 | 0.6020 | -666.0 | -561.5 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 21.36 | 297.98 | 27.59 | 311.85 | 0.5812 | 540.0 | 422.9 | |
| 0.00 | 1.02 | 0.00 | 0.61 | 21.15 | 296.41 | 26.02 | 313.13 | 0.5627 | 721.0 | 608.4 | |
| 0.00 | 1.79 | 0.00 | 1.08 | 22.71 | 295.79 | 25.40 | 315.90 | 0.5709 | 661.0 | 564.8 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 25.42 | 295.29 | 24.90 | 319.87 | 0.5924 | 600.0 | 440.3 | |
| 0.00 | 1.19 | 0.00 | 0.71 | 23.48 | 294.53 | 24.14 | 318.28 | 0.5659 | 639.0 | 572.6 | |
| 0.00 | 1.96 | 0.00 | 1.14 | 21.30 | 292.86 | 22.47 | 317.33 | 0.5274 | 605.0 | 397.2 | |
| 0.00 | 0.85 | 0.00 | 0.49 | 21.38 | 292.05 | 21.66 | 318.45 | 0.5202 | 608.0 | 580.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
