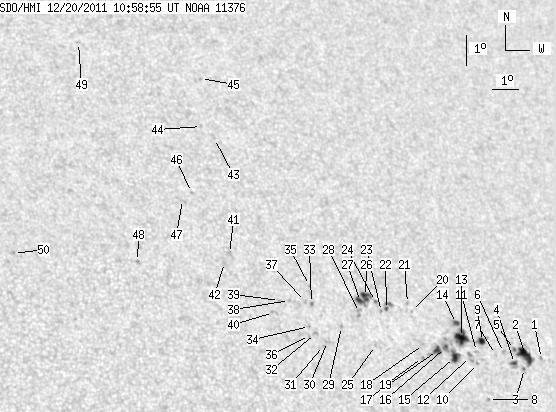

SDO HMI 2011-12-20 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.55 | 150.92 | 38.13 | 99.95 | 19.31 | 306.35 | 36.51 | 302.21 | 0.6654 | -303.4 | -179.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-20 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 1.01 | 18.35 | 311.00 | 41.15 | 298.13 | 0.7107 | -556.0 | -426.9 | |
| 12.76 | 19.65 | 8.87 | 13.66 | 18.43 | 310.36 | 40.52 | 298.56 | 0.7041 | -777.3 | -417.8 | |
| 1.02 | 1.96 | 0.71 | 1.35 | 18.02 | 310.20 | 40.36 | 298.10 | 0.7005 | -737.2 | -463.5 | |
| 1.87 | 5.36 | 1.29 | 3.69 | 18.17 | 309.84 | 39.99 | 298.48 | 0.6971 | -793.4 | -548.1 | |
| 1.11 | -2.00 | 0.76 | -2.00 | 18.61 | 309.96 | 40.12 | 299.00 | 0.7006 | -809.2 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.28 | 18.51 | 309.49 | 39.64 | 299.12 | 0.6949 | -469.0 | -374.4 | |
| 0.00 | 1.02 | 0.00 | 0.70 | 18.44 | 309.14 | 39.30 | 299.21 | 0.6908 | -371.0 | -388.4 | |
| 0.00 | 0.60 | 0.00 | 0.40 | 17.02 | 308.50 | 38.65 | 297.64 | 0.6765 | -619.0 | -606.1 | |
| 3.32 | 5.36 | 2.26 | 3.64 | 18.84 | 308.73 | 38.89 | 299.97 | 0.6883 | 671.2 | 523.5 | |
| 0.00 | 1.19 | 0.00 | 0.80 | 18.14 | 308.34 | 38.50 | 299.25 | 0.6804 | 553.0 | 396.7 | |
| 0.00 | 1.53 | 0.00 | 1.03 | 18.52 | 308.40 | 38.56 | 299.73 | 0.6830 | -217.0 | -172.5 | |
| 0.00 | 4.17 | 0.00 | 2.80 | 18.36 | 308.12 | 38.28 | 299.67 | 0.6790 | -118.0 | 235.4 | |
| 12.50 | 43.54 | 8.42 | 29.11 | 18.95 | 307.92 | 38.08 | 300.58 | 0.6799 | -779.6 | -290.6 | |
| 2.72 | 4.00 | 1.84 | 2.70 | 19.39 | 307.84 | 38.00 | 301.22 | 0.6814 | -684.8 | -538.2 | |
| 4.76 | -13.00 | 3.18 | -13.00 | 18.32 | 307.48 | 37.64 | 299.98 | 0.6716 | 789.3 | 999999 | |
| 1.87 | -13.00 | 1.25 | -13.00 | 18.62 | 307.20 | 37.36 | 300.56 | 0.6702 | -688.8 | 999999 | |
| 4.08 | -13.00 | 2.70 | -13.00 | 18.52 | 306.87 | 37.02 | 300.63 | 0.6658 | -788.3 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.39 | 18.70 | 306.37 | 36.52 | 301.18 | 0.6612 | -556.0 | -529.1 | |
| 0.00 | 1.19 | 0.00 | 0.78 | 18.29 | 306.23 | 36.38 | 300.70 | 0.6573 | -598.0 | -533.7 | |
| 0.00 | 0.85 | 0.00 | 0.56 | 19.74 | 306.17 | 36.32 | 302.71 | 0.6650 | 433.0 | 326.9 | |
| 0.00 | 0.94 | 0.00 | 0.62 | 19.99 | 306.08 | 36.23 | 303.11 | 0.6655 | -779.0 | -610.7 | |
| 1.02 | 5.10 | 0.67 | 3.34 | 19.79 | 305.21 | 35.37 | 303.40 | 0.6547 | 641.8 | 490.0 | |
| 0.00 | 1.36 | 0.00 | 0.89 | 19.72 | 305.00 | 35.16 | 303.45 | 0.6520 | 627.0 | 477.9 | |
| 0.00 | 1.28 | 0.00 | 0.83 | 20.03 | 304.85 | 35.01 | 303.98 | 0.6523 | 566.0 | 376.8 | |
| 0.00 | 0.77 | 0.00 | 0.49 | 18.64 | 304.51 | 34.66 | 302.29 | 0.6398 | -439.0 | -360.0 | |
| 5.61 | 14.03 | 3.65 | 9.10 | 20.19 | 304.51 | 34.66 | 304.42 | 0.6495 | 742.6 | 600.7 | |
| 3.91 | -26.00 | 2.53 | -26.00 | 20.03 | 304.27 | 34.43 | 304.36 | 0.6459 | 833.2 | 999999 | |
| 0.00 | 2.98 | 0.00 | 1.92 | 19.68 | 304.15 | 34.31 | 303.97 | 0.6422 | 624.0 | 628.0 | |
| 0.00 | 1.70 | 0.00 | 1.08 | 19.22 | 303.36 | 33.52 | 303.90 | 0.6305 | -753.0 | -597.7 | |
| 0.00 | 1.87 | 0.00 | 1.18 | 18.74 | 302.73 | 32.89 | 303.67 | 0.6202 | -773.0 | -535.2 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 18.61 | 302.55 | 32.71 | 303.62 | 0.6173 | -706.0 | -620.6 | |
| 0.00 | 2.30 | 0.00 | 1.44 | 18.98 | 302.34 | 32.49 | 304.31 | 0.6173 | -768.0 | -700.1 | |
| 0.00 | 1.53 | 0.00 | 0.97 | 19.93 | 302.40 | 32.56 | 305.60 | 0.6245 | -717.0 | -630.9 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 19.20 | 302.16 | 32.32 | 304.75 | 0.6168 | -832.0 | -662.8 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 20.50 | 302.46 | 32.62 | 306.34 | 0.6291 | -661.0 | -546.2 | |
| 0.00 | 1.36 | 0.00 | 0.85 | 18.92 | 302.10 | 32.26 | 304.40 | 0.6142 | -771.0 | -529.5 | |
| 0.00 | 1.28 | 0.00 | 0.81 | 19.99 | 302.19 | 32.35 | 305.84 | 0.6226 | -689.0 | -578.4 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 20.01 | 301.61 | 31.76 | 306.33 | 0.6162 | -808.0 | -622.6 | |
| 0.00 | 1.19 | 0.00 | 0.74 | 20.01 | 301.24 | 31.39 | 306.61 | 0.6121 | -718.0 | -529.1 | |
| 0.00 | 2.38 | 0.00 | 1.48 | 19.62 | 300.93 | 31.09 | 306.32 | 0.6059 | -667.0 | -581.7 | |
| 0.00 | 2.55 | 0.00 | 1.59 | 21.48 | 299.73 | 29.89 | 309.91 | 0.6068 | -524.0 | -556.3 | |
| 0.00 | 1.19 | 0.00 | 0.74 | 21.19 | 299.48 | 29.64 | 309.73 | 0.6018 | -151.0 | -152.9 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 25.23 | 300.12 | 30.27 | 314.44 | 0.6410 | -388.0 | -368.4 | |
| 0.00 | 1.02 | 0.00 | 0.66 | 25.62 | 299.73 | 29.89 | 315.25 | 0.6406 | -599.0 | -500.0 | |
| 0.00 | 1.19 | 0.00 | 0.78 | 27.23 | 300.16 | 30.32 | 316.81 | 0.6581 | -620.0 | -420.4 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 23.44 | 298.80 | 28.95 | 313.35 | 0.6131 | -595.0 | -472.3 | |
| 0.00 | 0.68 | 0.00 | 0.42 | 23.21 | 298.41 | 28.57 | 313.41 | 0.6072 | -582.0 | -577.5 | |
| 0.00 | 1.70 | 0.00 | 1.02 | 21.18 | 296.36 | 26.51 | 312.67 | 0.5683 | 782.0 | 569.9 | |
| 0.00 | 1.19 | 0.00 | 0.76 | 28.39 | 295.87 | 26.02 | 322.14 | 0.6313 | 569.0 | 394.4 | |
| 0.00 | 1.45 | 0.00 | 0.84 | 21.39 | 292.08 | 22.24 | 317.74 | 0.5261 | 693.0 | 570.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
