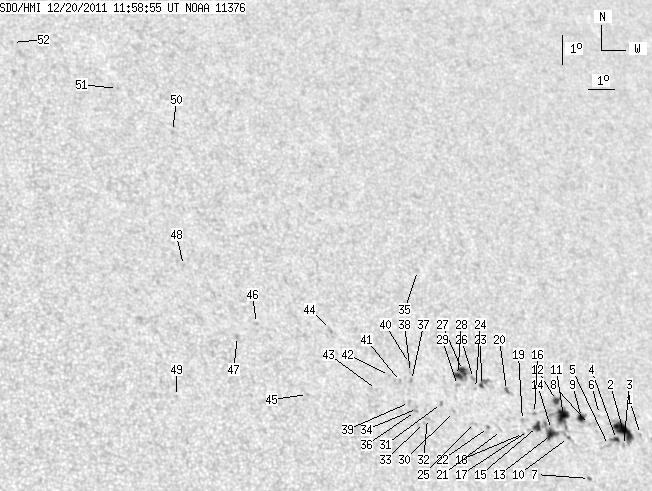

SDO HMI 2011-12-20 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.95 | 171.42 | 40.12 | 114.54 | 19.26 | 306.45 | 37.15 | 301.75 | 0.6725 | -236.9 | -186.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-20 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.78 | 18.39 | 311.04 | 41.75 | 297.89 | 0.7173 | -569.0 | -465.2 | |
| 17.35 | 22.96 | 12.17 | 16.10 | 18.47 | 310.36 | 41.06 | 298.33 | 0.7103 | -794.5 | -530.7 | |
| 0.00 | 1.70 | 0.00 | 1.19 | 18.03 | 310.23 | 40.94 | 297.82 | 0.7069 | -821.0 | -738.2 | |
| 2.47 | 4.93 | 1.72 | 3.43 | 18.21 | 310.00 | 40.70 | 298.18 | 0.7051 | -804.7 | -627.6 | |
| 0.00 | 1.96 | 0.00 | 1.35 | 18.02 | 309.62 | 40.32 | 298.11 | 0.7000 | -353.0 | -359.4 | |
| 0.00 | 0.60 | 0.00 | 0.41 | 18.99 | 309.52 | 40.23 | 299.44 | 0.7036 | 428.0 | 370.9 | |
| 1.11 | 1.79 | 0.75 | 1.21 | 16.97 | 308.57 | 39.28 | 297.24 | 0.6834 | -614.8 | -546.0 | |
| 0.00 | 1.45 | 0.00 | 0.99 | 18.66 | 309.02 | 39.73 | 299.28 | 0.6966 | -240.0 | -189.3 | |
| 3.49 | 6.21 | 2.39 | 4.26 | 18.88 | 308.76 | 39.46 | 299.71 | 0.6948 | 637.7 | 301.8 | |
| 0.43 | 62.67 | 0.29 | 42.32 | 18.24 | 308.06 | 38.76 | 299.24 | 0.6838 | 661.0 | -291.3 | |
| 8.84 | -10.00 | 6.01 | -10.00 | 18.90 | 308.04 | 38.74 | 300.13 | 0.6870 | -834.2 | 999999 | |
| 3.23 | -10.00 | 2.20 | -10.00 | 19.40 | 307.90 | 38.60 | 300.88 | 0.6881 | -714.2 | 999999 | |
| 7.06 | -10.00 | 4.74 | -10.00 | 18.32 | 307.41 | 38.11 | 299.71 | 0.6770 | 668.2 | 999999 | |
| 0.51 | -10.00 | 0.34 | -10.00 | 18.48 | 307.45 | 38.15 | 299.90 | 0.6782 | -156.8 | 999999 | |
| 4.51 | -10.00 | 3.01 | -10.00 | 18.56 | 306.92 | 37.62 | 300.32 | 0.6728 | -820.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.85 | 18.97 | 306.91 | 37.61 | 300.88 | 0.6749 | -573.0 | -534.7 | |
| 0.00 | 1.28 | 0.00 | 0.85 | 18.43 | 306.53 | 37.23 | 300.37 | 0.6677 | -546.0 | -466.3 | |
| 0.00 | 0.77 | 0.00 | 0.51 | 18.33 | 306.31 | 37.01 | 300.37 | 0.6647 | -636.0 | -548.2 | |
| 0.00 | 1.70 | 0.00 | 1.13 | 18.74 | 306.38 | 37.08 | 300.89 | 0.6677 | -568.0 | -511.9 | |
| 0.00 | 1.96 | 0.00 | 1.30 | 19.68 | 306.00 | 36.70 | 302.39 | 0.6688 | 452.0 | 409.7 | |
| 0.00 | 1.02 | 0.00 | 0.67 | 18.41 | 305.48 | 36.18 | 300.99 | 0.6557 | -554.0 | -395.8 | |
| 0.00 | 1.28 | 0.00 | 0.83 | 18.50 | 305.00 | 35.70 | 301.41 | 0.6508 | -698.0 | -571.6 | |
| 1.53 | 5.70 | 1.01 | 3.75 | 19.82 | 305.06 | 35.76 | 303.19 | 0.6593 | 575.9 | 503.4 | |
| 0.00 | 1.11 | 0.00 | 0.72 | 19.72 | 304.80 | 35.51 | 303.22 | 0.6559 | 582.0 | 355.6 | |
| 0.00 | 0.51 | 0.00 | 0.33 | 18.65 | 304.53 | 35.24 | 301.92 | 0.6464 | -543.0 | -591.5 | |
| 0.00 | 1.79 | 0.00 | 1.17 | 20.04 | 304.81 | 35.51 | 303.65 | 0.6578 | 631.0 | 423.4 | |
| 4.59 | 15.22 | 3.00 | 9.94 | 20.29 | 304.45 | 35.15 | 304.22 | 0.6554 | 818.3 | 580.6 | |
| 3.83 | -27.00 | 2.49 | -27.00 | 20.12 | 304.21 | 34.92 | 304.16 | 0.6518 | 891.8 | 999999 | |
| 0.00 | 1.87 | 0.00 | 1.22 | 19.81 | 304.13 | 34.83 | 303.79 | 0.6490 | 762.0 | 614.0 | |
| 0.00 | 1.19 | 0.00 | 0.77 | 18.98 | 303.82 | 34.52 | 302.86 | 0.6403 | -562.0 | -425.5 | |
| 0.00 | 1.53 | 0.00 | 0.98 | 19.22 | 303.38 | 34.08 | 303.50 | 0.6369 | -727.0 | -645.1 | |
| 0.00 | 1.70 | 0.00 | 1.08 | 18.74 | 302.74 | 33.45 | 303.28 | 0.6266 | -757.0 | -604.7 | |
| 0.00 | 1.19 | 0.00 | 0.75 | 18.61 | 302.60 | 33.31 | 303.20 | 0.6242 | -703.0 | -541.3 | |
| 0.00 | 0.51 | 0.00 | 0.32 | 19.05 | 302.44 | 33.14 | 303.93 | 0.6252 | -507.0 | -533.5 | |
| 0.00 | 1.87 | 0.00 | 1.24 | 23.48 | 303.60 | 34.30 | 309.02 | 0.6676 | -583.0 | -392.4 | |
| 0.00 | 1.70 | 0.00 | 1.08 | 18.96 | 302.34 | 33.05 | 303.87 | 0.6234 | -633.0 | -667.2 | |
| 0.00 | 1.53 | 0.00 | 0.97 | 19.94 | 302.42 | 33.12 | 305.18 | 0.6308 | -779.0 | -628.8 | |
| 0.00 | 1.28 | 0.00 | 0.81 | 20.19 | 302.44 | 33.15 | 305.51 | 0.6328 | -565.0 | -410.2 | |
| 0.00 | 1.87 | 0.00 | 1.18 | 19.24 | 302.18 | 32.89 | 304.38 | 0.6235 | -778.0 | -570.1 | |
| 0.00 | 1.28 | 0.00 | 0.82 | 20.48 | 302.48 | 33.18 | 305.88 | 0.6351 | -699.0 | -558.2 | |
| 0.00 | 1.62 | 0.00 | 1.02 | 19.90 | 302.00 | 32.70 | 305.44 | 0.6259 | -714.0 | -601.4 | |
| 0.00 | 1.19 | 0.00 | 0.75 | 20.08 | 301.63 | 32.34 | 305.98 | 0.6231 | -679.0 | -572.4 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 19.63 | 301.05 | 31.75 | 305.80 | 0.6134 | -622.0 | -543.1 | |
| 0.00 | 2.13 | 0.00 | 1.33 | 21.52 | 299.78 | 30.49 | 309.45 | 0.6135 | -640.0 | -592.5 | |
| 0.00 | 0.85 | 0.00 | 0.52 | 19.43 | 298.50 | 29.20 | 307.64 | 0.5833 | -778.0 | -635.0 | |
| 0.00 | 1.53 | 0.00 | 0.93 | 21.68 | 297.12 | 27.83 | 312.06 | 0.5865 | 679.0 | 501.5 | |
| 0.00 | 1.79 | 0.00 | 1.08 | 21.25 | 296.36 | 27.06 | 312.22 | 0.5747 | 784.0 | 574.0 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 23.52 | 294.90 | 25.60 | 316.76 | 0.5806 | 590.0 | 475.8 | |
| 0.00 | 0.60 | 0.00 | 0.35 | 19.31 | 293.88 | 24.58 | 312.03 | 0.5306 | 726.0 | 625.1 | |
| 0.00 | 1.53 | 0.00 | 0.97 | 27.98 | 295.55 | 26.25 | 321.46 | 0.6292 | 728.0 | 611.2 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 29.42 | 293.88 | 24.58 | 324.74 | 0.6299 | 620.0 | 530.7 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 30.98 | 290.37 | 21.07 | 330.11 | 0.6207 | 608.0 | 437.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
