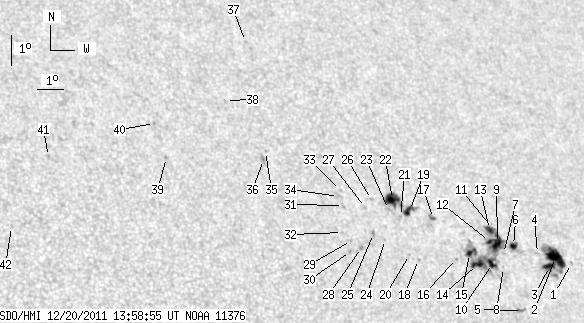

SDO HMI 2011-12-20 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 72.62 | 205.47 | 50.12 | 140.02 | 19.10 | 306.99 | 38.79 | 300.56 | 0.6888 | -242.6 | -283.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-20 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.80 | 18.37 | 311.12 | 42.92 | 297.32 | 0.7298 | -404.0 | -335.0 | |
| 18.53 | 42.43 | 13.26 | 30.26 | 18.55 | 310.49 | 42.30 | 297.84 | 0.7239 | -802.4 | -630.7 | |
| 5.53 | -2.00 | 3.92 | -2.00 | 18.26 | 310.15 | 41.96 | 297.63 | 0.7190 | -980.9 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.20 | 18.66 | 309.77 | 41.57 | 298.33 | 0.7166 | -589.0 | -428.0 | |
| 0.00 | 2.64 | 0.00 | 1.81 | 16.86 | 308.65 | 40.45 | 296.50 | 0.6962 | -836.0 | -672.2 | |
| 2.89 | 7.40 | 2.02 | 5.17 | 18.89 | 308.85 | 40.65 | 299.10 | 0.7078 | 644.0 | -37.4 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 18.63 | 308.36 | 40.16 | 299.01 | 0.7012 | -269.0 | -213.2 | |
| 0.00 | 0.85 | 0.00 | 0.59 | 18.19 | 308.24 | 40.04 | 298.50 | 0.6977 | 198.0 | 145.7 | |
| 8.59 | 84.17 | 5.94 | 57.73 | 18.94 | 308.21 | 40.01 | 299.51 | 0.7010 | -816.7 | -279.4 | |
| 4.42 | -9.00 | 3.03 | -9.00 | 18.31 | 307.82 | 39.62 | 298.87 | 0.6938 | 560.3 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.00 | 19.51 | 308.09 | 39.89 | 300.31 | 0.7026 | -399.0 | -355.2 | |
| 1.53 | -9.00 | 1.06 | -9.00 | 19.00 | 307.90 | 39.70 | 299.75 | 0.6980 | -921.3 | 999999 | |
| 4.25 | -9.00 | 2.94 | -9.00 | 19.38 | 308.01 | 39.81 | 300.19 | 0.7011 | -664.2 | 999999 | |
| 5.53 | -9.00 | 3.75 | -9.00 | 18.27 | 307.21 | 39.01 | 299.14 | 0.6867 | 571.3 | 999999 | |
| 2.13 | -9.00 | 1.44 | -9.00 | 18.61 | 306.98 | 38.78 | 299.73 | 0.6859 | -948.4 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.69 | 18.44 | 306.42 | 38.22 | 299.82 | 0.6788 | -649.0 | -505.5 | |
| 1.19 | 3.15 | 0.80 | 2.12 | 19.69 | 305.84 | 37.64 | 301.83 | 0.6792 | 576.9 | 443.4 | |
| 0.00 | 0.94 | 0.00 | 0.62 | 18.38 | 304.91 | 36.71 | 300.63 | 0.6616 | -565.0 | -521.6 | |
| 5.70 | 8.50 | 3.79 | 5.66 | 19.93 | 304.96 | 36.76 | 302.69 | 0.6709 | 617.5 | 439.4 | |
| 0.00 | 0.85 | 0.00 | 0.56 | 18.53 | 304.60 | 36.40 | 301.03 | 0.6589 | -652.0 | -571.6 | |
| 0.00 | 0.94 | 0.00 | 0.62 | 19.73 | 304.56 | 36.36 | 302.68 | 0.6653 | 419.0 | 322.2 | |
| 12.33 | 16.24 | 8.17 | 10.76 | 20.26 | 304.39 | 36.19 | 303.51 | 0.6666 | 832.4 | 545.7 | |
| 0.00 | 2.04 | 0.00 | 1.34 | 19.94 | 304.15 | 35.95 | 303.23 | 0.6621 | 491.0 | 459.4 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 18.99 | 303.79 | 35.59 | 302.17 | 0.6524 | -556.0 | -455.2 | |
| 0.00 | 2.13 | 0.00 | 1.38 | 19.17 | 303.37 | 35.17 | 302.69 | 0.6488 | -797.0 | -620.4 | |
| 0.00 | 1.62 | 0.00 | 1.06 | 20.25 | 303.57 | 35.37 | 304.03 | 0.6576 | -424.0 | -397.2 | |
| 0.00 | 1.53 | 0.00 | 1.00 | 19.99 | 303.27 | 35.07 | 303.88 | 0.6527 | -643.0 | -477.1 | |
| 0.00 | 2.04 | 0.00 | 1.31 | 18.72 | 302.80 | 34.61 | 302.45 | 0.6397 | -757.0 | -629.9 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 18.94 | 302.48 | 34.28 | 302.97 | 0.6373 | -813.0 | -670.9 | |
| 0.00 | 1.19 | 0.00 | 0.76 | 18.59 | 302.36 | 34.16 | 302.57 | 0.6338 | -872.0 | -704.9 | |
| 0.00 | 1.87 | 0.00 | 1.21 | 20.04 | 302.44 | 34.24 | 304.52 | 0.6439 | -739.0 | -527.7 | |
| 0.00 | 0.85 | 0.00 | 0.54 | 19.18 | 302.19 | 34.00 | 303.51 | 0.6357 | -854.0 | -661.4 | |
| 0.00 | 1.19 | 0.00 | 0.77 | 20.52 | 302.45 | 34.25 | 305.17 | 0.6471 | -572.0 | -472.9 | |
| 0.00 | 2.72 | 0.00 | 1.76 | 20.32 | 302.32 | 34.12 | 304.99 | 0.6444 | -667.0 | -488.5 | |
| 0.00 | 1.19 | 0.00 | 0.76 | 21.72 | 299.92 | 31.72 | 308.71 | 0.6282 | -471.0 | -401.2 | |
| 0.00 | 3.57 | 0.00 | 2.26 | 21.46 | 299.78 | 31.58 | 308.47 | 0.6248 | -800.0 | -591.8 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 25.31 | 300.13 | 31.93 | 313.14 | 0.6576 | -536.0 | -424.7 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 23.35 | 298.83 | 30.63 | 311.76 | 0.6294 | -554.0 | -469.3 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 21.48 | 296.23 | 28.03 | 311.59 | 0.5871 | 747.0 | 595.4 | |
| 0.00 | 1.19 | 0.00 | 0.73 | 22.57 | 296.04 | 27.84 | 313.26 | 0.5944 | 730.0 | 494.6 | |
| 0.00 | 1.79 | 0.00 | 1.05 | 21.46 | 292.07 | 23.87 | 315.91 | 0.5434 | 682.0 | 568.0 | |
| 0.00 | 1.36 | 0.00 | 0.78 | 19.21 | 290.44 | 22.24 | 314.61 | 0.5042 | 598.0 | 550.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
