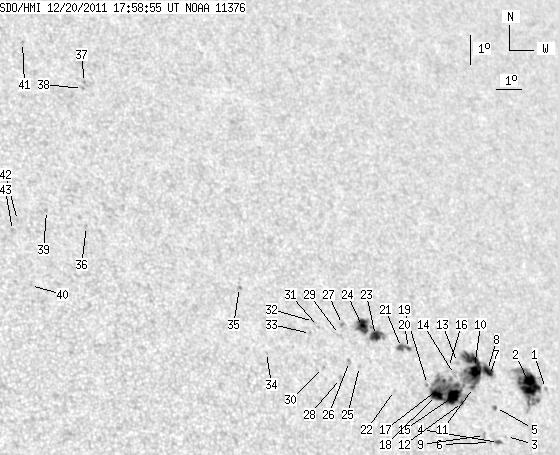

SDO HMI 2011-12-20 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.38 | 271.55 | 73.00 | 192.51 | 19.03 | 307.46 | 41.47 | 299.03 | 0.7177 | -112.2 | -316.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-20 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.53 | 0.00 | 1.15 | 18.47 | 311.33 | 45.34 | 296.40 | 0.7555 | -302.0 | -226.5 | |
| 22.86 | 61.11 | 17.03 | 45.45 | 18.55 | 310.69 | 44.70 | 296.77 | 0.7493 | -897.9 | -553.6 | |
| 0.00 | 0.51 | 0.00 | 0.37 | 16.93 | 309.15 | 43.16 | 295.36 | 0.7265 | -455.0 | -352.2 | |
| 1.95 | 2.55 | 1.39 | 1.82 | 16.74 | 308.76 | 42.77 | 295.28 | 0.7215 | -757.0 | -539.9 | |
| 1.44 | 1.95 | 1.04 | 1.41 | 17.83 | 308.95 | 42.96 | 296.62 | 0.7280 | -629.2 | -593.2 | |
| 0.00 | 1.02 | 0.00 | 0.72 | 16.73 | 308.42 | 42.43 | 295.42 | 0.7177 | -772.0 | -645.4 | |
| 0.68 | 133.53 | 0.49 | 94.72 | 18.83 | 309.01 | 43.01 | 297.88 | 0.7328 | -81.5 | -353.0 | |
| 6.03 | -7.00 | 4.38 | -7.00 | 18.99 | 308.97 | 42.98 | 298.10 | 0.7331 | 409.5 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.38 | 16.94 | 308.23 | 42.24 | 295.79 | 0.7165 | -763.0 | -623.8 | |
| 21.93 | -7.00 | 15.78 | -7.00 | 19.07 | 308.45 | 42.45 | 298.45 | 0.7279 | -822.8 | 999999 | |
| 1.02 | -7.00 | 0.73 | -7.00 | 18.44 | 308.21 | 42.21 | 297.75 | 0.7226 | 335.8 | 999999 | |
| 1.19 | -7.00 | 0.84 | -7.00 | 17.96 | 307.60 | 41.61 | 297.42 | 0.7140 | 394.6 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.09 | 19.22 | 307.77 | 41.78 | 298.97 | 0.7215 | -325.0 | -297.9 | |
| 0.00 | 2.55 | 0.00 | 1.81 | 18.84 | 307.53 | 41.54 | 298.59 | 0.7171 | -680.0 | -516.9 | |
| 12.24 | -7.00 | 8.59 | -7.00 | 18.14 | 307.28 | 41.29 | 297.81 | 0.7113 | 798.8 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.48 | 19.05 | 307.34 | 41.35 | 298.97 | 0.7161 | 325.0 | 160.5 | |
| 1.78 | -7.00 | 1.24 | -7.00 | 18.35 | 306.68 | 40.69 | 298.38 | 0.7057 | -504.3 | 999999 | |
| 7.65 | -7.00 | 5.32 | -7.00 | 18.16 | 306.59 | 40.59 | 298.18 | 0.7038 | 759.8 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.59 | 18.50 | 306.31 | 40.32 | 298.77 | 0.7024 | -794.0 | -738.7 | |
| 1.27 | 6.29 | 0.88 | 4.35 | 19.62 | 305.87 | 39.87 | 300.48 | 0.7031 | 407.4 | 526.1 | |
| 3.65 | -20.00 | 2.53 | -20.00 | 19.65 | 305.59 | 39.59 | 300.67 | 0.7002 | 624.7 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.46 | 18.29 | 304.92 | 38.93 | 299.23 | 0.6860 | -498.0 | -411.4 | |
| 8.41 | 15.64 | 5.75 | 10.70 | 20.01 | 304.64 | 38.65 | 301.68 | 0.6919 | 657.1 | 242.8 | |
| 10.28 | 15.89 | 7.01 | 10.82 | 20.29 | 304.20 | 38.21 | 302.30 | 0.6887 | 902.4 | 589.6 | |
| 0.00 | 0.93 | 0.00 | 0.63 | 19.02 | 303.72 | 37.73 | 300.89 | 0.6765 | -578.0 | -370.7 | |
| 0.00 | 2.46 | 0.00 | 1.65 | 19.17 | 303.37 | 37.38 | 301.31 | 0.6735 | -645.0 | -507.9 | |
| 0.00 | 1.44 | 0.00 | 0.97 | 20.34 | 303.42 | 37.42 | 302.84 | 0.6805 | -453.0 | -429.1 | |
| 0.00 | 1.44 | 0.00 | 0.96 | 18.63 | 302.87 | 36.88 | 300.87 | 0.6649 | -678.0 | -592.1 | |
| 0.00 | 1.27 | 0.00 | 0.85 | 20.02 | 303.21 | 37.21 | 302.54 | 0.6764 | -610.0 | -556.7 | |
| 0.00 | 1.10 | 0.00 | 0.73 | 18.96 | 302.30 | 36.31 | 301.68 | 0.6604 | -606.0 | -558.6 | |
| 0.00 | 0.76 | 0.00 | 0.51 | 20.26 | 302.45 | 36.45 | 303.34 | 0.6696 | -680.0 | -504.6 | |
| 0.00 | 0.85 | 0.00 | 0.56 | 20.42 | 302.29 | 36.30 | 303.65 | 0.6689 | -576.0 | -520.4 | |
| 0.00 | 1.78 | 0.00 | 1.18 | 20.03 | 302.07 | 36.08 | 303.28 | 0.6641 | -681.0 | -508.8 | |
| 0.00 | 0.59 | 0.00 | 0.38 | 19.40 | 300.22 | 34.23 | 303.66 | 0.6398 | -643.0 | -519.6 | |
| 0.00 | 1.61 | 0.00 | 1.05 | 21.46 | 299.71 | 33.72 | 306.82 | 0.6477 | -726.0 | -639.2 | |
| 0.00 | 1.44 | 0.00 | 0.90 | 23.34 | 294.47 | 28.48 | 313.68 | 0.6077 | 610.0 | 509.8 | |
| 0.00 | 0.93 | 0.00 | 0.62 | 28.14 | 295.69 | 29.70 | 318.41 | 0.6606 | 701.0 | 605.2 | |
| 0.00 | 1.44 | 0.00 | 0.95 | 27.93 | 295.55 | 29.56 | 318.30 | 0.6576 | 543.0 | 522.3 | |
| 0.00 | 1.27 | 0.00 | 0.79 | 23.85 | 293.13 | 27.14 | 315.62 | 0.5988 | 638.0 | 530.6 | |
| 0.00 | 0.76 | 0.00 | 0.46 | 21.41 | 292.05 | 26.06 | 313.47 | 0.5657 | 631.0 | 535.3 | |
| 0.00 | 0.93 | 0.00 | 0.61 | 29.48 | 293.72 | 27.72 | 321.71 | 0.6559 | 628.0 | 533.1 | |
| 0.00 | 0.51 | 0.00 | 0.31 | 23.51 | 292.01 | 26.02 | 316.31 | 0.5847 | 643.0 | 538.8 | |
| 0.00 | 1.78 | 0.00 | 1.08 | 23.18 | 291.77 | 25.77 | 316.15 | 0.5792 | 717.0 | 555.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
