SDO HMI 2011-12-20 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.05 | 300.10 | 66.99 | 213.97 | 19.04 | 307.09 | 41.65 | 299.02 | 0.7198 | -95.5 | -235.8 | |
|
previous
or next observation for the same group /

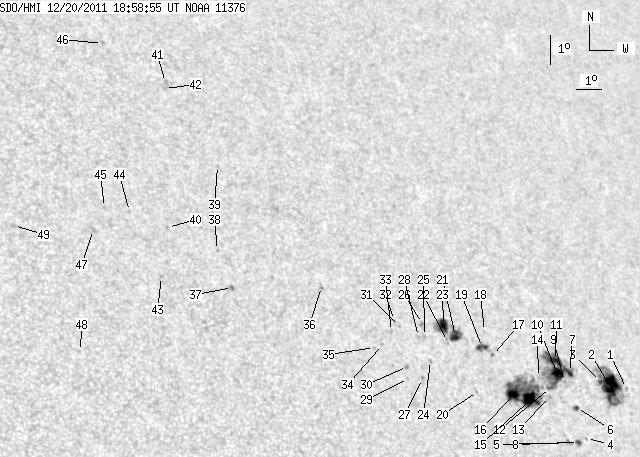

back to the solar disc SDO HMI 2011-12-20 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.84 | 18.48 | 311.40 | 45.96 | 296.16 | 0.7620 | -286.0 | -239.1 | |
| 24.39 | 68.34 | 18.36 | 51.43 | 18.53 | 310.70 | 45.26 | 296.51 | 0.7550 | -900.5 | -406.9 | |
| 1.44 | -2.00 | 1.08 | -2.00 | 18.68 | 310.31 | 44.87 | 296.86 | 0.7516 | -868.6 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.62 | 16.88 | 309.14 | 43.70 | 295.06 | 0.7322 | -367.0 | -336.8 | |
| 2.38 | 2.72 | 1.71 | 1.96 | 16.75 | 308.76 | 43.32 | 295.05 | 0.7275 | -676.8 | -592.0 | |
| 1.87 | 2.72 | 1.36 | 1.98 | 17.84 | 309.00 | 43.56 | 296.37 | 0.7345 | -682.4 | -597.6 | |
| 2.72 | 65.96 | 1.99 | 47.87 | 18.94 | 309.04 | 43.60 | 297.75 | 0.7395 | 378.6 | -380.1 | |
| 0.00 | 2.46 | 0.00 | 1.76 | 16.74 | 308.37 | 42.93 | 295.21 | 0.7233 | -861.0 | -663.0 | |
| 0.00 | 1.44 | 0.00 | 1.05 | 18.65 | 308.74 | 43.30 | 297.52 | 0.7350 | -110.0 | -137.9 | |
| 9.52 | -7.00 | 6.91 | -7.00 | 18.90 | 308.51 | 43.07 | 297.94 | 0.7337 | -888.3 | 999999 | |
| 7.48 | -7.00 | 5.45 | -7.00 | 19.31 | 308.56 | 43.12 | 298.44 | 0.7360 | -685.7 | 999999 | |
| 1.02 | -7.00 | 0.73 | -7.00 | 18.45 | 308.07 | 42.64 | 297.57 | 0.7272 | 410.9 | 999999 | |
| 0.00 | 1.10 | 0.00 | 0.79 | 18.16 | 307.95 | 42.51 | 297.26 | 0.7246 | -380.0 | -372.8 | |
| 0.00 | 0.76 | 0.00 | 0.55 | 18.75 | 307.66 | 42.22 | 298.16 | 0.7241 | -589.0 | -428.4 | |
| 13.34 | 77.26 | 9.42 | 54.50 | 18.05 | 307.12 | 41.68 | 297.51 | 0.7151 | 835.0 | -242.3 | |
| 5.44 | -15.00 | 3.80 | -15.00 | 18.20 | 306.45 | 41.01 | 298.02 | 0.7086 | 756.3 | 999999 | |
| 0.00 | 1.53 | 0.00 | 1.07 | 19.41 | 305.94 | 40.51 | 299.87 | 0.7088 | 574.0 | 399.3 | |
| 0.00 | 0.76 | 0.00 | 0.54 | 20.17 | 305.85 | 40.41 | 300.90 | 0.7115 | -622.0 | -528.7 | |
| 4.50 | 7.22 | 3.14 | 5.04 | 19.66 | 305.61 | 40.17 | 300.37 | 0.7064 | 677.5 | 509.2 | |
| 0.00 | 0.51 | 0.00 | 0.35 | 18.26 | 305.00 | 39.56 | 298.86 | 0.6929 | -581.0 | -452.0 | |
| 8.92 | 14.02 | 6.15 | 9.67 | 20.02 | 304.61 | 39.17 | 301.39 | 0.6976 | 633.3 | 269.2 | |
| 0.00 | 1.87 | 0.00 | 1.28 | 19.82 | 304.23 | 38.79 | 301.35 | 0.6925 | 399.0 | 410.3 | |
| 10.03 | 15.30 | 6.89 | 10.49 | 20.33 | 304.22 | 38.78 | 302.02 | 0.6951 | 872.2 | 670.2 | |
| 0.00 | 1.53 | 0.00 | 1.03 | 19.21 | 303.38 | 37.94 | 301.03 | 0.6799 | -560.0 | -476.4 | |
| 0.00 | 2.12 | 0.00 | 1.44 | 19.97 | 303.35 | 37.91 | 302.05 | 0.6837 | -513.0 | -400.9 | |
| 0.00 | 1.53 | 0.00 | 1.04 | 20.38 | 303.39 | 37.95 | 302.57 | 0.6865 | -503.0 | -446.6 | |
| 0.00 | 1.44 | 0.00 | 0.96 | 18.63 | 302.91 | 37.47 | 300.53 | 0.6716 | -759.0 | -642.8 | |
| 0.00 | 0.93 | 0.00 | 0.63 | 19.96 | 303.11 | 37.67 | 302.19 | 0.6811 | -585.0 | -435.7 | |
| 0.00 | 0.59 | 0.00 | 0.39 | 18.62 | 302.36 | 36.92 | 300.85 | 0.6654 | -674.0 | -565.6 | |
| 0.00 | 2.04 | 0.00 | 1.35 | 19.00 | 302.42 | 36.98 | 301.33 | 0.6681 | -728.0 | -601.6 | |
| 0.00 | 0.85 | 0.00 | 0.57 | 20.27 | 302.44 | 37.00 | 303.01 | 0.6756 | -652.0 | -534.4 | |
| 0.00 | 1.19 | 0.00 | 0.80 | 20.45 | 302.30 | 36.86 | 303.35 | 0.6752 | -669.0 | -515.1 | |
| 0.00 | 1.70 | 0.00 | 1.13 | 20.10 | 302.08 | 36.64 | 303.01 | 0.6707 | -648.0 | -470.8 | |
| 0.00 | 1.19 | 0.00 | 0.79 | 19.68 | 301.62 | 36.18 | 302.75 | 0.6632 | -605.0 | -515.2 | |
| 0.00 | 0.93 | 0.00 | 0.61 | 19.58 | 301.28 | 35.84 | 302.83 | 0.6589 | -746.0 | -620.3 | |
| 0.00 | 1.78 | 0.00 | 1.17 | 21.49 | 299.74 | 34.30 | 306.45 | 0.6543 | -626.0 | -564.1 | |
| 0.00 | 1.44 | 0.00 | 0.91 | 21.41 | 296.37 | 30.93 | 308.95 | 0.6175 | 746.0 | 630.1 | |
| 0.00 | 1.10 | 0.00 | 0.70 | 22.59 | 296.10 | 30.66 | 310.76 | 0.6238 | 636.0 | 504.5 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 25.38 | 296.85 | 31.41 | 313.68 | 0.6534 | -398.0 | -363.1 | |
| 0.00 | 0.93 | 0.00 | 0.58 | 23.32 | 294.43 | 28.99 | 313.18 | 0.6126 | 583.0 | 484.5 | |
| 0.00 | 1.95 | 0.00 | 1.29 | 28.15 | 295.68 | 30.24 | 317.95 | 0.6654 | 658.0 | 581.1 | |
| 0.00 | 0.68 | 0.00 | 0.45 | 27.94 | 295.58 | 30.14 | 317.80 | 0.6628 | 601.0 | 578.6 | |
| 0.00 | 0.93 | 0.00 | 0.57 | 21.72 | 293.84 | 28.40 | 311.60 | 0.5932 | 638.0 | 506.5 | |
| 0.00 | 0.85 | 0.00 | 0.53 | 23.82 | 293.15 | 27.71 | 315.03 | 0.6042 | 660.0 | 518.5 | |
| 0.00 | 0.76 | 0.00 | 0.47 | 23.94 | 292.27 | 26.83 | 316.04 | 0.5967 | 582.0 | 451.1 | |
| 0.00 | 1.27 | 0.00 | 0.84 | 29.45 | 293.65 | 28.21 | 321.22 | 0.6596 | 204.0 | 365.9 | |
| 0.00 | 2.63 | 0.00 | 1.61 | 23.21 | 291.72 | 26.28 | 315.67 | 0.5845 | 563.0 | 523.7 | |
| 0.00 | 0.76 | 0.00 | 0.45 | 19.29 | 290.52 | 25.08 | 311.47 | 0.5362 | 695.0 | 537.1 | |
| 0.00 | 2.21 | 0.00 | 1.32 | 23.31 | 288.90 | 23.46 | 318.86 | 0.5580 | 695.0 | 542.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
