SDO HMI 2011-12-20 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 98.71 | 314.59 | 72.64 | 229.02 | 19.00 | 307.34 | 43.00 | 298.25 | 0.7341 | -102.8 | -111.1 | |
|
previous
or next observation for the same group /

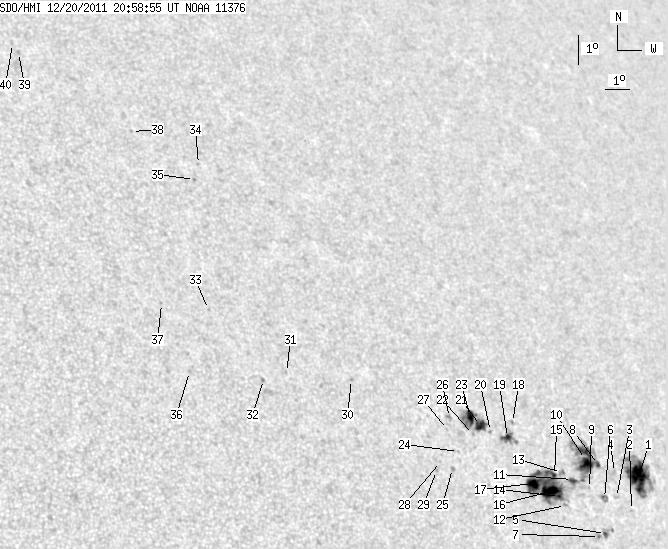

back to the solar disc SDO HMI 2011-12-20 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31.11 | 71.32 | 23.93 | 54.94 | 18.55 | 310.82 | 46.48 | 296.05 | 0.7676 | -822.6 | -341.5 | |
| 0.00 | 1.02 | 0.00 | 0.77 | 17.50 | 310.15 | 45.81 | 295.01 | 0.7569 | -773.0 | -601.2 | |
| 0.00 | 1.79 | 0.00 | 1.34 | 17.90 | 309.61 | 45.28 | 295.72 | 0.7528 | -243.0 | -191.7 | |
| 0.00 | 2.64 | 0.00 | 1.99 | 18.68 | 309.79 | 45.45 | 296.63 | 0.7576 | -307.0 | -302.7 | |
| 1.36 | 6.12 | 1.00 | 4.50 | 16.76 | 308.77 | 44.44 | 294.61 | 0.7398 | -644.5 | -364.4 | |
| 0.00 | 4.68 | 0.00 | 3.47 | 17.86 | 309.07 | 44.73 | 295.89 | 0.7470 | -732.0 | -594.7 | |
| 0.00 | 1.19 | 0.00 | 0.87 | 16.66 | 308.48 | 44.15 | 294.60 | 0.7363 | -851.0 | -643.6 | |
| 1.70 | 61.20 | 1.27 | 45.34 | 18.92 | 309.16 | 44.83 | 297.20 | 0.7521 | 436.4 | -283.0 | |
| 0.00 | 0.77 | 0.00 | 0.56 | 18.16 | 308.51 | 44.18 | 296.51 | 0.7423 | -492.0 | -486.8 | |
| 20.66 | -8.00 | 15.34 | -8.00 | 19.07 | 308.64 | 44.30 | 297.61 | 0.7473 | -745.9 | 999999 | |
| 2.47 | -8.00 | 1.80 | -8.00 | 18.43 | 307.86 | 43.53 | 297.14 | 0.7366 | 409.4 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.98 | 17.60 | 307.31 | 42.98 | 296.33 | 0.7273 | 487.0 | 403.9 | |
| 0.00 | 2.89 | 0.00 | 2.10 | 18.64 | 307.46 | 43.12 | 297.59 | 0.7332 | -709.0 | -649.1 | |
| 1.28 | 83.39 | 0.92 | 59.56 | 17.88 | 307.14 | 42.80 | 296.76 | 0.7266 | 543.0 | -84.6 | |
| 1.45 | -14.00 | 1.04 | -14.00 | 18.54 | 307.13 | 42.79 | 297.62 | 0.7293 | -807.8 | 999999 | |
| 13.60 | -14.00 | 9.72 | -14.00 | 18.03 | 306.76 | 42.43 | 297.13 | 0.7232 | 877.9 | 999999 | |
| 7.23 | -14.00 | 5.12 | -14.00 | 18.27 | 306.12 | 41.78 | 297.74 | 0.7173 | 716.8 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.15 | 20.18 | 305.88 | 41.54 | 300.33 | 0.7236 | -709.0 | -597.2 | |
| 3.06 | 14.62 | 2.17 | 10.37 | 19.70 | 305.51 | 41.18 | 299.90 | 0.7174 | 754.0 | 360.0 | |
| 0.00 | 1.36 | 0.00 | 0.95 | 19.88 | 304.86 | 40.53 | 300.47 | 0.7114 | 513.0 | 343.1 | |
| 7.82 | 36.04 | 5.47 | 25.13 | 20.06 | 304.50 | 40.17 | 300.90 | 0.7085 | 689.0 | 521.2 | |
| 0.00 | 1.45 | 0.00 | 1.00 | 19.77 | 304.13 | 39.79 | 300.73 | 0.7031 | 568.0 | 411.2 | |
| 6.97 | -21.00 | 4.86 | -21.00 | 20.34 | 304.18 | 39.85 | 301.44 | 0.7065 | 922.8 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.58 | 19.22 | 303.36 | 39.02 | 300.43 | 0.6919 | -563.0 | -476.8 | |
| 0.00 | 2.38 | 0.00 | 1.61 | 18.68 | 302.97 | 38.63 | 299.93 | 0.6848 | -774.0 | -584.8 | |
| 0.00 | 2.89 | 0.00 | 1.99 | 20.29 | 303.31 | 38.97 | 301.87 | 0.6970 | -452.0 | -397.1 | |
| 0.00 | 1.11 | 0.00 | 0.76 | 19.91 | 303.11 | 38.78 | 301.48 | 0.6929 | -532.0 | -384.6 | |
| 0.00 | 0.77 | 0.00 | 0.52 | 18.89 | 302.54 | 38.21 | 300.45 | 0.6813 | -629.0 | -517.4 | |
| 0.00 | 0.77 | 0.00 | 0.51 | 18.60 | 302.31 | 37.98 | 300.20 | 0.6771 | -585.0 | -526.2 | |
| 0.00 | 1.11 | 0.00 | 0.73 | 21.44 | 299.75 | 35.41 | 305.61 | 0.6658 | -759.0 | -638.4 | |
| 0.00 | 0.68 | 0.00 | 0.44 | 21.62 | 297.30 | 32.97 | 307.62 | 0.6410 | 592.0 | 492.0 | |
| 0.00 | 1.62 | 0.00 | 1.03 | 21.38 | 296.37 | 32.04 | 308.02 | 0.6294 | 832.0 | 606.2 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 23.62 | 294.88 | 30.55 | 312.20 | 0.6310 | 539.0 | 428.8 | |
| 0.00 | 1.11 | 0.00 | 0.74 | 28.46 | 295.93 | 31.60 | 317.18 | 0.6800 | 470.0 | 371.4 | |
| 0.00 | 1.28 | 0.00 | 0.85 | 27.95 | 295.61 | 31.27 | 316.86 | 0.6729 | 761.0 | 619.5 | |
| 0.00 | 1.19 | 0.00 | 0.74 | 21.60 | 293.69 | 29.36 | 310.57 | 0.6024 | 580.0 | 459.5 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 23.79 | 293.18 | 28.85 | 313.93 | 0.6153 | 555.0 | 460.9 | |
| 0.00 | 0.94 | 0.00 | 0.62 | 29.56 | 293.66 | 29.33 | 320.34 | 0.6700 | 561.0 | 478.7 | |
| 0.00 | 1.36 | 0.00 | 0.90 | 32.27 | 290.13 | 25.79 | 326.44 | 0.6680 | 583.0 | 448.5 | |
| 0.00 | 1.11 | 0.00 | 0.74 | 32.59 | 289.99 | 25.66 | 326.88 | 0.6701 | 450.0 | 355.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
