SDO HMI 2011-12-20 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.37 | 309.49 | 69.06 | 226.92 | 18.71 | 307.31 | 43.53 | 297.62 | 0.7376 | -37.8 | -139.6 | |
|
previous
or next observation for the same group /

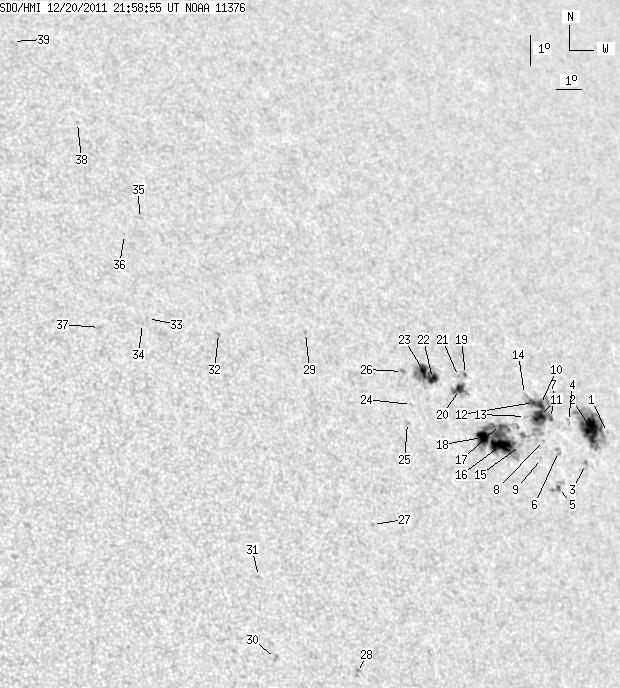

back to the solar disc SDO HMI 2011-12-20 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.74 | 18.51 | 311.59 | 47.81 | 295.49 | 0.7806 | -154.0 | -157.4 | |
| 29.16 | 72.60 | 22.70 | 56.58 | 18.59 | 310.88 | 47.10 | 295.86 | 0.7739 | -786.0 | -320.1 | |
| 0.00 | 2.38 | 0.00 | 1.82 | 17.48 | 310.22 | 46.44 | 294.74 | 0.7633 | -648.0 | -618.5 | |
| 0.00 | 2.21 | 0.00 | 1.69 | 18.82 | 309.91 | 46.13 | 296.53 | 0.7650 | -374.0 | -451.0 | |
| 1.28 | 7.48 | 0.94 | 5.54 | 16.74 | 308.78 | 45.00 | 294.36 | 0.7457 | -603.7 | -510.7 | |
| 0.00 | 3.32 | 0.00 | 2.49 | 17.87 | 309.14 | 45.36 | 295.65 | 0.7536 | -557.0 | -574.2 | |
| 1.53 | 51.00 | 1.16 | 38.20 | 18.90 | 309.18 | 45.40 | 296.93 | 0.7579 | 335.1 | -238.8 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 18.20 | 308.59 | 44.80 | 296.30 | 0.7491 | -681.0 | -568.2 | |
| 0.00 | 0.60 | 0.00 | 0.44 | 17.63 | 308.32 | 44.53 | 295.69 | 0.7441 | -534.0 | -479.7 | |
| 2.98 | -7.00 | 2.24 | -7.00 | 19.33 | 308.84 | 45.06 | 297.61 | 0.7561 | -567.7 | 999999 | |
| 8.42 | -7.00 | 6.31 | -7.00 | 18.95 | 308.66 | 44.88 | 297.21 | 0.7528 | -863.6 | 999999 | |
| 1.62 | -7.00 | 1.21 | -7.00 | 19.39 | 308.55 | 44.77 | 297.81 | 0.7534 | -784.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 1.01 | 18.94 | 308.04 | 44.26 | 297.47 | 0.7464 | -300.0 | -328.9 | |
| 0.00 | 1.36 | 0.00 | 1.02 | 19.64 | 308.24 | 44.46 | 298.26 | 0.7513 | -293.0 | -321.6 | |
| 0.00 | 1.36 | 0.00 | 0.99 | 18.02 | 307.53 | 43.75 | 296.53 | 0.7373 | -180.0 | -228.3 | |
| 16.49 | 93.00 | 11.87 | 67.00 | 18.00 | 306.67 | 42.89 | 296.89 | 0.7281 | 818.3 | -149.0 | |
| 0.68 | -16.00 | 0.49 | -16.00 | 18.66 | 306.87 | 43.09 | 297.65 | 0.7330 | -665.5 | 999999 | |
| 10.46 | -16.00 | 7.45 | -16.00 | 18.24 | 305.98 | 42.20 | 297.52 | 0.7217 | 747.0 | 999999 | |
| 1.28 | 1.36 | 0.92 | 0.98 | 20.22 | 305.89 | 42.11 | 300.10 | 0.7297 | -557.4 | -565.0 | |
| 6.89 | 12.84 | 4.92 | 9.18 | 19.74 | 305.48 | 41.70 | 299.70 | 0.7231 | 639.9 | 389.0 | |
| 0.00 | 0.77 | 0.00 | 0.55 | 20.15 | 305.57 | 41.79 | 300.18 | 0.7260 | -402.0 | -386.0 | |
| 6.29 | 33.66 | 4.43 | 23.66 | 20.07 | 304.45 | 40.67 | 300.65 | 0.7139 | 696.2 | 521.8 | |
| 6.29 | -22.00 | 4.42 | -22.00 | 20.32 | 304.16 | 40.38 | 301.12 | 0.7120 | 906.2 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 19.22 | 303.34 | 39.55 | 300.15 | 0.6978 | -544.0 | -454.1 | |
| 0.00 | 1.96 | 0.00 | 1.34 | 18.65 | 303.01 | 39.23 | 299.57 | 0.6913 | -831.0 | -589.5 | |
| 0.00 | 2.47 | 0.00 | 1.71 | 20.27 | 303.28 | 39.50 | 301.55 | 0.7025 | -424.0 | -388.5 | |
| 0.00 | 1.02 | 0.00 | 0.66 | 15.44 | 300.86 | 37.07 | 296.32 | 0.6506 | -707.0 | -572.6 | |
| 0.00 | 2.38 | 0.00 | 1.49 | 10.91 | 299.50 | 35.72 | 290.22 | 0.6132 | -531.0 | -649.9 | |
| 0.00 | 1.53 | 0.00 | 1.02 | 21.45 | 299.75 | 35.97 | 305.25 | 0.6717 | -733.0 | -543.4 | |
| 0.00 | 3.06 | 0.00 | 1.85 | 11.28 | 296.56 | 32.78 | 292.35 | 0.5764 | 612.0 | 532.9 | |
| 0.00 | 1.45 | 0.00 | 0.88 | 13.77 | 296.31 | 32.53 | 296.52 | 0.5859 | 714.0 | 539.9 | |
| 0.00 | 1.28 | 0.00 | 0.82 | 21.36 | 296.38 | 32.60 | 307.55 | 0.6352 | 760.0 | 611.9 | |
| 0.00 | 1.19 | 0.00 | 0.74 | 21.80 | 293.85 | 30.07 | 310.22 | 0.6115 | 616.0 | 457.0 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 21.63 | 293.63 | 29.84 | 310.20 | 0.6079 | 668.0 | 532.7 | |
| 0.00 | 0.43 | 0.00 | 0.27 | 25.06 | 294.38 | 30.60 | 313.98 | 0.6431 | 114.0 | 144.4 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 24.52 | 293.67 | 29.89 | 313.93 | 0.6318 | 412.0 | 416.7 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 21.48 | 292.03 | 28.25 | 311.44 | 0.5897 | 756.0 | 623.3 | |
| 0.00 | 0.68 | 0.00 | 0.45 | 28.25 | 292.94 | 29.16 | 319.04 | 0.6571 | 688.0 | 582.2 | |
| 0.00 | 1.19 | 0.00 | 0.79 | 31.02 | 291.28 | 27.50 | 323.57 | 0.6688 | 598.0 | 508.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
