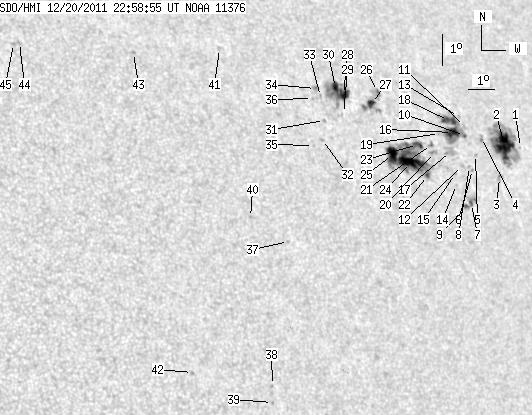

SDO HMI 2011-12-20 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 102.12 | 326.18 | 76.19 | 241.84 | 18.73 | 307.48 | 44.25 | 297.30 | 0.7451 | -128.9 | -127.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-20 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.48 | 18.59 | 311.67 | 48.45 | 295.35 | 0.7872 | -263.0 | -201.6 | |
| 27.80 | 74.81 | 21.90 | 59.01 | 18.63 | 310.94 | 47.71 | 295.68 | 0.7802 | -767.2 | -303.9 | |
| 0.00 | 2.30 | 0.00 | 1.78 | 17.62 | 310.35 | 47.12 | 294.66 | 0.7708 | -738.0 | -619.4 | |
| 0.00 | 2.38 | 0.00 | 1.84 | 18.86 | 309.97 | 46.74 | 296.34 | 0.7713 | -768.0 | -620.3 | |
| 0.00 | 1.02 | 0.00 | 0.78 | 18.32 | 309.50 | 46.27 | 295.85 | 0.7647 | -440.0 | -414.7 | |
| 0.00 | 0.77 | 0.00 | 0.58 | 17.84 | 309.21 | 45.98 | 295.38 | 0.7599 | -626.0 | -583.2 | |
| 1.02 | 9.18 | 0.76 | 6.87 | 16.78 | 308.82 | 45.59 | 294.19 | 0.7521 | -614.7 | -421.9 | |
| 0.00 | 0.94 | 0.00 | 0.71 | 17.94 | 309.10 | 45.87 | 295.53 | 0.7592 | -726.0 | -632.1 | |
| 1.11 | -7.00 | 0.82 | -7.00 | 16.68 | 308.57 | 45.34 | 294.16 | 0.7491 | -777.2 | 999999 | |
| 1.02 | 42.00 | 0.78 | 31.85 | 18.91 | 309.21 | 45.99 | 296.70 | 0.7639 | 245.8 | -475.6 | |
| 0.00 | 1.53 | 0.00 | 1.17 | 19.19 | 309.32 | 46.09 | 297.01 | 0.7660 | 215.0 | 172.1 | |
| 0.00 | 1.87 | 0.00 | 1.41 | 17.96 | 308.80 | 45.57 | 295.69 | 0.7561 | -325.0 | -303.9 | |
| 0.00 | 1.28 | 0.00 | 0.98 | 19.51 | 309.16 | 45.93 | 297.46 | 0.7656 | 124.0 | 136.3 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 17.36 | 308.34 | 45.11 | 295.11 | 0.7491 | -515.0 | -419.2 | |
| 0.00 | 1.11 | 0.00 | 0.83 | 17.70 | 308.40 | 45.17 | 295.52 | 0.7511 | -547.0 | -483.7 | |
| 8.84 | -10.00 | 6.70 | -10.00 | 18.99 | 308.71 | 45.48 | 297.02 | 0.7591 | -868.6 | 999999 | |
| 0.00 | 8.08 | 0.00 | 6.06 | 18.39 | 308.41 | 45.18 | 296.39 | 0.7537 | -167.0 | -144.0 | |
| 8.25 | -10.00 | 6.26 | -10.00 | 19.37 | 308.66 | 45.43 | 297.50 | 0.7601 | -673.9 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.89 | 18.95 | 308.11 | 44.88 | 297.21 | 0.7529 | -400.0 | -360.2 | |
| 0.00 | 2.55 | 0.00 | 1.89 | 18.34 | 307.69 | 44.46 | 296.64 | 0.7461 | 532.0 | 332.5 | |
| 1.11 | 2.98 | 0.82 | 2.20 | 18.59 | 307.64 | 44.41 | 296.97 | 0.7466 | -771.8 | -651.9 | |
| 2.04 | 94.87 | 1.49 | 68.82 | 17.61 | 307.15 | 43.92 | 295.94 | 0.7376 | 367.0 | -29.2 | |
| 4.42 | -22.00 | 3.24 | -22.00 | 18.58 | 307.03 | 43.80 | 297.23 | 0.7402 | -708.0 | 999999 | |
| 16.92 | -22.00 | 12.27 | -22.00 | 18.01 | 306.55 | 43.32 | 296.71 | 0.7327 | 778.1 | 999999 | |
| 11.05 | -22.00 | 7.93 | -22.00 | 18.24 | 305.85 | 42.62 | 297.33 | 0.7263 | 752.2 | 999999 | |
| 0.43 | 19.30 | 0.31 | 13.94 | 20.23 | 305.85 | 42.63 | 299.86 | 0.7351 | -730.0 | 83.0 | |
| 4.59 | -26.00 | 3.31 | -26.00 | 19.84 | 305.47 | 42.24 | 299.56 | 0.7293 | 566.0 | 999999 | |
| 7.74 | 37.32 | 5.50 | 26.41 | 20.10 | 304.37 | 41.14 | 300.45 | 0.7191 | 706.7 | 531.6 | |
| 0.00 | 0.60 | 0.00 | 0.42 | 19.50 | 304.18 | 40.95 | 299.77 | 0.7142 | 202.0 | 249.6 | |
| 5.78 | -28.00 | 4.10 | -28.00 | 20.32 | 304.11 | 40.88 | 300.87 | 0.7174 | 946.3 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.59 | 19.26 | 303.33 | 40.10 | 299.91 | 0.7039 | -558.0 | -472.8 | |
| 0.00 | 1.02 | 0.00 | 0.70 | 18.66 | 303.07 | 39.84 | 299.26 | 0.6981 | -733.0 | -620.7 | |
| 0.00 | 1.19 | 0.00 | 0.83 | 20.02 | 303.39 | 40.16 | 300.87 | 0.7084 | -235.0 | -168.3 | |
| 0.00 | 2.81 | 0.00 | 1.96 | 20.27 | 303.26 | 40.04 | 301.26 | 0.7083 | -424.0 | -347.2 | |
| 0.00 | 1.11 | 0.00 | 0.76 | 18.46 | 302.65 | 39.42 | 299.22 | 0.6925 | -558.0 | -469.0 | |
| 0.00 | 0.77 | 0.00 | 0.53 | 19.95 | 303.04 | 39.81 | 300.97 | 0.7043 | -586.0 | -487.9 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 15.45 | 300.92 | 37.70 | 296.00 | 0.6581 | -694.0 | -573.2 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 11.03 | 299.53 | 36.30 | 290.16 | 0.6213 | -675.0 | -592.2 | |
| 0.00 | 0.85 | 0.00 | 0.53 | 10.52 | 299.46 | 36.23 | 289.39 | 0.6183 | -646.0 | -599.2 | |
| 0.00 | 1.02 | 0.00 | 0.66 | 16.17 | 299.62 | 36.39 | 297.75 | 0.6462 | -647.0 | -566.4 | |
| 0.00 | 1.87 | 0.00 | 1.26 | 21.48 | 299.76 | 36.53 | 304.93 | 0.6780 | -652.0 | -439.9 | |
| 0.00 | 1.19 | 0.00 | 0.73 | 11.38 | 296.64 | 33.41 | 292.17 | 0.5851 | 847.0 | 663.3 | |
| 0.00 | 1.53 | 0.00 | 0.98 | 21.30 | 296.38 | 33.15 | 307.06 | 0.6408 | 677.0 | 534.1 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 21.55 | 292.22 | 28.99 | 310.86 | 0.5982 | 668.0 | 560.5 | |
| 0.00 | 1.36 | 0.00 | 0.84 | 21.52 | 291.99 | 28.76 | 311.01 | 0.5955 | 778.0 | 643.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
