SDO HMI 2011-12-20 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.05 | 358.93 | 80.42 | 267.92 | 18.74 | 307.24 | 44.56 | 297.21 | 0.7485 | -44.1 | -139.9 | |
|
previous
or next observation for the same group /

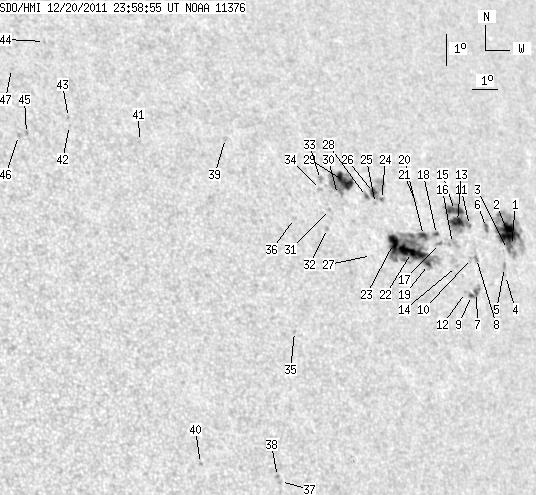

back to the solar disc SDO HMI 2011-12-20 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 78.81 | 1.08 | 62.95 | 18.33 | 310.98 | 48.30 | 295.10 | 0.7850 | -733.8 | -307.7 | |
| 21.17 | -1.00 | 16.89 | -1.00 | 18.70 | 310.98 | 48.30 | 295.55 | 0.7862 | -763.3 | 999999 | |
| 0.43 | -1.00 | 0.34 | -1.00 | 18.20 | 310.74 | 48.06 | 295.02 | 0.7822 | -413.2 | 999999 | |
| 0.00 | 1.02 | 0.00 | 0.80 | 17.38 | 310.36 | 47.68 | 294.16 | 0.7757 | -628.0 | -540.6 | |
| 0.00 | 2.81 | 0.00 | 2.20 | 17.63 | 310.40 | 47.72 | 294.45 | 0.7769 | -721.0 | -619.7 | |
| 3.23 | 3.74 | 2.53 | 2.93 | 18.87 | 310.02 | 47.34 | 296.12 | 0.7773 | -611.9 | -568.8 | |
| 1.87 | 8.67 | 1.42 | 6.56 | 16.81 | 308.86 | 46.18 | 294.01 | 0.7584 | -519.4 | -438.0 | |
| 0.00 | 2.89 | 0.00 | 2.22 | 17.88 | 309.21 | 46.53 | 295.22 | 0.7657 | -699.0 | -572.7 | |
| 1.70 | -7.00 | 1.28 | -7.00 | 16.72 | 308.60 | 45.92 | 293.99 | 0.7554 | -694.4 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.97 | 17.88 | 308.98 | 46.30 | 295.30 | 0.7634 | -583.0 | -499.2 | |
| 0.34 | 45.91 | 0.26 | 35.22 | 18.92 | 309.26 | 46.58 | 296.48 | 0.7699 | 381.2 | -397.1 | |
| 0.00 | 0.85 | 0.00 | 0.64 | 16.80 | 308.36 | 45.68 | 294.19 | 0.7532 | -593.0 | -511.6 | |
| 8.67 | -11.00 | 6.64 | -11.00 | 19.03 | 308.75 | 46.07 | 296.82 | 0.7653 | -855.3 | 999999 | |
| 0.00 | 1.19 | 0.00 | 0.90 | 17.61 | 308.22 | 45.54 | 295.27 | 0.7546 | -399.0 | -346.9 | |
| 9.10 | -11.00 | 6.99 | -11.00 | 19.38 | 308.74 | 46.06 | 297.26 | 0.7665 | -651.3 | 999999 | |
| 0.00 | 7.99 | 0.00 | 6.04 | 18.33 | 308.28 | 45.60 | 296.14 | 0.7579 | -165.0 | -68.1 | |
| 1.19 | 2.64 | 0.89 | 1.97 | 18.32 | 307.75 | 45.07 | 296.35 | 0.7524 | 339.9 | 339.8 | |
| 1.28 | 112.14 | 0.96 | 82.03 | 18.60 | 307.66 | 44.99 | 296.74 | 0.7526 | -731.7 | -82.1 | |
| 1.11 | -18.00 | 0.81 | -18.00 | 17.65 | 307.00 | 44.32 | 295.81 | 0.7420 | 481.8 | 999999 | |
| 4.17 | -18.00 | 3.09 | -18.00 | 18.56 | 307.08 | 44.40 | 296.94 | 0.7464 | -702.6 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.38 | 19.63 | 307.09 | 44.41 | 298.28 | 0.7508 | -181.0 | -261.2 | |
| 19.55 | -18.00 | 14.27 | -18.00 | 18.01 | 306.38 | 43.70 | 296.55 | 0.7369 | 789.2 | 999999 | |
| 10.88 | -18.00 | 7.87 | -18.00 | 18.28 | 305.69 | 43.02 | 297.20 | 0.7307 | 700.4 | 999999 | |
| 1.19 | 19.98 | 0.87 | 14.58 | 19.66 | 305.63 | 42.95 | 298.99 | 0.7359 | 533.1 | -122.0 | |
| 0.00 | 1.11 | 0.00 | 0.80 | 19.53 | 305.33 | 42.65 | 298.97 | 0.7322 | 513.0 | 449.9 | |
| 4.34 | -24.00 | 3.15 | -24.00 | 19.88 | 305.36 | 42.68 | 299.40 | 0.7341 | 632.9 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.54 | 17.88 | 304.65 | 41.97 | 297.17 | 0.7177 | -364.0 | -316.0 | |
| 1.36 | 2.81 | 0.98 | 2.03 | 19.74 | 305.01 | 42.33 | 299.40 | 0.7299 | 600.8 | 504.9 | |
| 14.11 | 37.75 | 10.10 | 26.93 | 20.20 | 304.23 | 41.55 | 300.37 | 0.7239 | 807.9 | 530.4 | |
| 0.00 | 1.19 | 0.00 | 0.84 | 19.78 | 303.80 | 41.12 | 300.06 | 0.7174 | 519.0 | 424.9 | |
| 0.00 | 1.28 | 0.00 | 0.89 | 19.30 | 303.32 | 40.64 | 299.68 | 0.7099 | -577.0 | -453.9 | |
| 0.00 | 1.53 | 0.00 | 1.06 | 18.69 | 303.06 | 40.38 | 299.03 | 0.7042 | -711.0 | -599.7 | |
| 0.00 | 2.55 | 0.00 | 1.80 | 20.25 | 303.24 | 40.56 | 300.95 | 0.7138 | -480.0 | -326.0 | |
| 0.00 | 1.87 | 0.00 | 1.31 | 19.93 | 303.14 | 40.46 | 300.59 | 0.7111 | -600.0 | -506.5 | |
| 0.00 | 1.45 | 0.00 | 0.96 | 15.45 | 300.92 | 38.24 | 295.73 | 0.6646 | -685.0 | -543.8 | |
| 0.00 | 1.53 | 0.00 | 1.05 | 18.99 | 301.80 | 39.12 | 300.09 | 0.6919 | -477.0 | -379.9 | |
| 0.00 | 1.96 | 0.00 | 1.24 | 10.85 | 299.55 | 36.87 | 289.63 | 0.6280 | -669.0 | -515.8 | |
| 0.00 | 1.28 | 0.00 | 0.81 | 11.00 | 299.46 | 36.78 | 289.90 | 0.6274 | -732.0 | -579.2 | |
| 0.00 | 2.64 | 0.00 | 1.78 | 21.49 | 299.77 | 37.09 | 304.59 | 0.6839 | -646.0 | -433.5 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 11.35 | 296.66 | 33.98 | 291.82 | 0.5926 | 851.0 | 705.1 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 21.33 | 296.37 | 33.69 | 306.71 | 0.6469 | 722.0 | 565.4 | |
| 0.00 | 0.77 | 0.00 | 0.48 | 21.80 | 293.86 | 31.18 | 309.31 | 0.6235 | 599.0 | 495.7 | |
| 0.00 | 1.02 | 0.00 | 0.65 | 22.06 | 293.88 | 31.20 | 309.63 | 0.6257 | 677.0 | 562.1 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 24.53 | 293.62 | 30.94 | 313.04 | 0.6423 | 585.0 | 481.1 | |
| 0.00 | 1.96 | 0.00 | 1.21 | 21.52 | 292.21 | 29.53 | 310.34 | 0.6038 | 663.0 | 584.8 | |
| 0.00 | 1.45 | 0.00 | 0.89 | 21.45 | 291.90 | 29.22 | 310.52 | 0.5999 | 600.0 | 543.2 | |
| 0.00 | 1.02 | 0.00 | 0.64 | 23.62 | 292.15 | 29.47 | 313.17 | 0.6204 | 678.0 | 582.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
