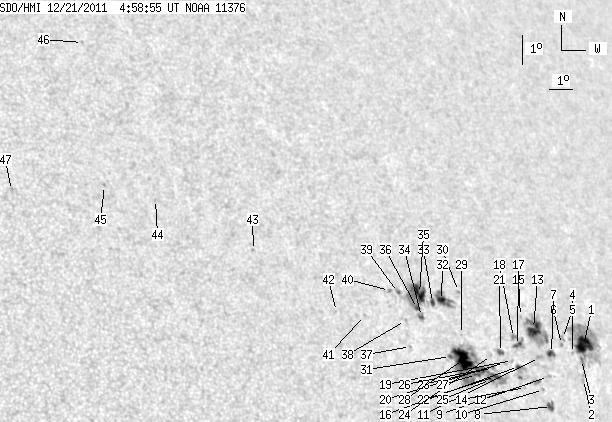

SDO HMI 2011-12-21 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.77 | 377.26 | 81.60 | 296.84 | 18.90 | 307.32 | 47.38 | 296.27 | 0.7776 | -103.8 | -46.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-21 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.86 | 79.86 | 15.17 | 68.02 | 18.81 | 311.17 | 51.23 | 294.69 | 0.8145 | -785.2 | -212.9 | |
| 0.00 | 2.47 | 0.00 | 2.06 | 17.74 | 310.73 | 50.78 | 293.56 | 0.8073 | -722.0 | -583.6 | |
| 1.28 | -1.00 | 1.07 | -1.00 | 18.37 | 310.88 | 50.94 | 294.26 | 0.8106 | -608.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.92 | 18.55 | 310.51 | 50.57 | 294.60 | 0.8076 | -770.0 | -716.5 | |
| 0.00 | 2.21 | 0.00 | 1.84 | 19.01 | 310.21 | 50.27 | 295.25 | 0.8062 | -700.0 | -568.5 | |
| 0.00 | 0.94 | 0.00 | 0.78 | 18.82 | 310.08 | 50.14 | 295.07 | 0.8044 | -761.0 | -720.9 | |
| 3.32 | 6.38 | 2.71 | 5.20 | 18.52 | 309.48 | 49.54 | 294.92 | 0.7977 | -647.8 | -466.0 | |
| 4.93 | 5.61 | 3.94 | 4.48 | 16.85 | 308.86 | 48.91 | 293.11 | 0.7866 | -612.7 | -574.6 | |
| 0.00 | 2.55 | 0.00 | 2.06 | 17.79 | 309.05 | 49.11 | 294.19 | 0.7914 | -588.0 | -456.8 | |
| 0.00 | 1.28 | 0.00 | 1.02 | 17.38 | 308.66 | 48.72 | 293.82 | 0.7863 | -569.0 | -419.9 | |
| 0.00 | 3.32 | 0.00 | 2.68 | 18.38 | 308.85 | 48.91 | 294.97 | 0.7912 | -386.0 | -376.5 | |
| 0.00 | 3.91 | 0.00 | 3.11 | 17.62 | 308.38 | 48.43 | 294.22 | 0.7842 | -782.0 | -610.0 | |
| 15.56 | 43.63 | 12.65 | 35.50 | 19.30 | 308.92 | 48.98 | 296.05 | 0.7949 | -733.9 | -403.3 | |
| 0.00 | 0.85 | 0.00 | 0.67 | 17.42 | 307.84 | 47.90 | 294.16 | 0.7782 | -621.0 | -485.9 | |
| 0.00 | 0.60 | 0.00 | 0.48 | 19.66 | 308.45 | 48.51 | 296.67 | 0.7916 | -548.0 | -475.4 | |
| 1.02 | 9.19 | 0.80 | 7.23 | 18.08 | 307.75 | 47.81 | 295.00 | 0.7794 | 239.6 | -252.6 | |
| 3.40 | 11.74 | 2.70 | 9.33 | 18.74 | 307.95 | 48.01 | 295.74 | 0.7836 | -768.2 | -552.5 | |
| 0.00 | 3.83 | 0.00 | 3.04 | 18.99 | 307.85 | 47.91 | 296.07 | 0.7836 | -690.0 | -576.2 | |
| 0.00 | 1.19 | 0.00 | 0.93 | 18.26 | 307.54 | 47.59 | 295.30 | 0.7780 | 189.0 | 171.1 | |
| 0.00 | 1.87 | 0.00 | 1.46 | 18.19 | 307.14 | 47.20 | 295.37 | 0.7738 | -238.0 | -60.3 | |
| 3.32 | 4.51 | 2.58 | 3.51 | 18.50 | 307.07 | 47.13 | 295.78 | 0.7741 | -640.9 | -391.6 | |
| 3.40 | 101.55 | 2.61 | 76.79 | 17.74 | 306.57 | 46.63 | 295.03 | 0.7665 | 320.5 | 251.9 | |
| 1.28 | 2.30 | 0.98 | 1.77 | 18.02 | 306.58 | 46.64 | 295.37 | 0.7675 | 265.3 | -3.0 | |
| 0.00 | 1.11 | 0.00 | 0.85 | 18.39 | 306.62 | 46.68 | 295.82 | 0.7693 | -656.0 | -511.7 | |
| 1.70 | -22.00 | 1.30 | -22.00 | 17.64 | 306.31 | 46.37 | 295.00 | 0.7635 | 607.2 | 999999 | |
| 1.70 | -22.00 | 1.30 | -22.00 | 17.94 | 306.10 | 46.16 | 295.47 | 0.7624 | 424.6 | 999999 | |
| 2.38 | -22.00 | 1.80 | -22.00 | 17.78 | 305.73 | 45.79 | 295.41 | 0.7580 | 558.0 | 999999 | |
| 20.16 | -22.00 | 15.17 | -22.00 | 18.24 | 305.31 | 45.37 | 296.16 | 0.7554 | 852.1 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.58 | 19.03 | 305.49 | 45.55 | 297.07 | 0.7602 | 314.0 | 216.8 | |
| 0.00 | 1.19 | 0.00 | 0.92 | 20.40 | 305.86 | 45.92 | 298.60 | 0.7692 | -487.0 | -442.9 | |
| 1.36 | -22.00 | 1.01 | -22.00 | 18.32 | 304.76 | 44.82 | 296.49 | 0.7500 | -421.0 | 999999 | |
| 4.59 | 17.69 | 3.48 | 13.45 | 20.09 | 304.98 | 45.04 | 298.61 | 0.7593 | 617.1 | 188.6 | |
| 2.72 | 47.63 | 2.05 | 35.49 | 20.02 | 304.56 | 44.61 | 298.71 | 0.7547 | 586.5 | 488.6 | |
| 1.28 | 4.17 | 0.95 | 3.09 | 19.56 | 303.91 | 43.97 | 298.43 | 0.7463 | 441.4 | 372.7 | |
| 10.21 | -33.00 | 7.63 | -33.00 | 20.29 | 304.08 | 44.14 | 299.26 | 0.7511 | 860.2 | 999999 | |
| 1.11 | -33.00 | 0.82 | -33.00 | 19.81 | 303.82 | 43.88 | 298.78 | 0.7464 | 634.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.80 | 18.60 | 303.12 | 43.18 | 297.58 | 0.7340 | -714.0 | -597.4 | |
| 0.00 | 1.28 | 0.00 | 0.93 | 19.42 | 303.17 | 43.23 | 298.59 | 0.7380 | -294.0 | -334.1 | |
| 1.19 | 2.30 | 0.88 | 1.69 | 20.31 | 303.17 | 43.23 | 299.71 | 0.7419 | -288.7 | -337.5 | |
| 0.00 | 1.19 | 0.00 | 0.87 | 20.36 | 302.80 | 42.86 | 299.96 | 0.7384 | -548.0 | -513.9 | |
| 0.00 | 0.94 | 0.00 | 0.67 | 19.54 | 301.47 | 41.52 | 299.58 | 0.7207 | -644.0 | -605.9 | |
| 0.00 | 1.02 | 0.00 | 0.71 | 19.65 | 300.33 | 40.39 | 300.30 | 0.7092 | -596.0 | -491.4 | |
| 0.00 | 1.19 | 0.00 | 0.81 | 21.53 | 297.54 | 37.59 | 304.36 | 0.6898 | 604.0 | 536.4 | |
| 0.00 | 1.02 | 0.00 | 0.67 | 23.12 | 294.14 | 34.20 | 308.71 | 0.6648 | 636.0 | 511.7 | |
| 0.00 | 1.28 | 0.00 | 0.83 | 23.54 | 292.30 | 32.36 | 310.66 | 0.6491 | 607.0 | 550.9 | |
| 0.00 | 0.94 | 0.00 | 0.64 | 28.31 | 292.93 | 32.99 | 315.93 | 0.6916 | 540.0 | 464.3 | |
| 0.00 | 1.53 | 0.00 | 0.96 | 23.32 | 288.76 | 28.82 | 313.41 | 0.6117 | 262.0 | 380.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
