SDO HMI 2011-12-21 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 106.08 | 396.92 | 85.23 | 318.74 | 18.85 | 307.34 | 48.49 | 295.77 | 0.7883 | -108.2 | -49.6 | |
|
previous
or next observation for the same group /

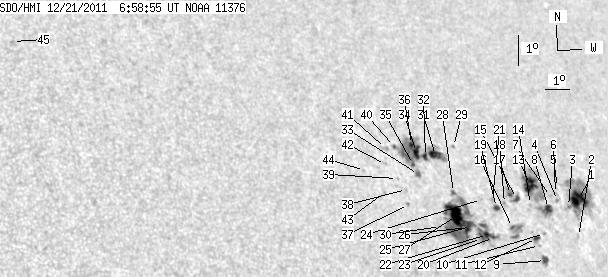

back to the solar disc SDO HMI 2011-12-21 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.37 | 76.29 | 16.04 | 66.73 | 18.90 | 311.28 | 52.43 | 294.41 | 0.8258 | -721.9 | -206.4 | |
| 0.00 | 0.94 | 0.00 | 0.80 | 17.73 | 310.78 | 51.93 | 293.19 | 0.8180 | -589.0 | -485.5 | |
| 0.85 | -1.00 | 0.73 | -1.00 | 18.66 | 310.67 | 51.82 | 294.33 | 0.8196 | -713.4 | 999999 | |
| 0.00 | 1.28 | 0.00 | 1.09 | 18.84 | 310.19 | 51.34 | 294.70 | 0.8157 | -760.0 | -620.1 | |
| 0.00 | 0.51 | 0.00 | 0.44 | 19.25 | 310.37 | 51.52 | 295.12 | 0.8185 | -516.0 | -458.3 | |
| 0.00 | 1.53 | 0.00 | 1.31 | 19.06 | 310.19 | 51.34 | 294.96 | 0.8163 | -538.0 | -514.1 | |
| 0.00 | 1.28 | 0.00 | 1.08 | 18.96 | 309.89 | 51.04 | 294.93 | 0.8133 | -286.0 | -365.9 | |
| 4.85 | 13.61 | 4.07 | 11.38 | 18.57 | 309.63 | 50.78 | 294.57 | 0.8097 | -741.0 | -531.0 | |
| 3.91 | 5.02 | 3.20 | 4.10 | 16.93 | 308.85 | 49.99 | 292.86 | 0.7975 | -648.8 | -486.0 | |
| 0.00 | 1.11 | 0.00 | 0.91 | 17.78 | 309.12 | 50.26 | 293.79 | 0.8025 | -551.0 | -424.2 | |
| 0.00 | 0.94 | 0.00 | 0.76 | 17.40 | 308.73 | 49.88 | 293.46 | 0.7977 | -396.0 | -383.8 | |
| 2.38 | 4.85 | 1.95 | 3.96 | 17.61 | 308.66 | 49.81 | 293.74 | 0.7977 | -657.4 | -462.0 | |
| 12.76 | 47.46 | 10.63 | 39.63 | 19.31 | 309.06 | 50.20 | 295.64 | 0.8066 | -786.5 | -324.0 | |
| 0.00 | 1.28 | 0.00 | 1.05 | 18.68 | 308.79 | 49.94 | 294.98 | 0.8021 | -540.0 | -477.1 | |
| 3.06 | 12.08 | 2.50 | 9.83 | 18.85 | 308.19 | 49.33 | 295.40 | 0.7969 | -771.4 | -597.0 | |
| 1.11 | 13.52 | 0.89 | 10.87 | 17.93 | 307.64 | 48.79 | 294.48 | 0.7887 | 345.5 | -303.4 | |
| 2.30 | -15.00 | 1.87 | -15.00 | 18.97 | 307.95 | 49.09 | 295.63 | 0.7950 | -701.1 | 999999 | |
| 0.00 | 1.62 | 0.00 | 1.30 | 18.68 | 307.54 | 48.69 | 295.42 | 0.7902 | -572.0 | -452.8 | |
| 2.64 | 3.40 | 2.10 | 2.71 | 18.55 | 307.12 | 48.26 | 295.42 | 0.7856 | -680.8 | -619.3 | |
| 1.11 | 124.52 | 0.87 | 95.76 | 17.60 | 306.63 | 47.78 | 294.43 | 0.7776 | 373.5 | 184.7 | |
| 0.00 | 1.70 | 0.00 | 1.35 | 18.80 | 307.02 | 48.17 | 295.75 | 0.7855 | -350.0 | -269.1 | |
| 2.72 | -20.00 | 2.12 | -20.00 | 17.68 | 306.38 | 47.53 | 294.63 | 0.7755 | 514.9 | 999999 | |
| 0.34 | -20.00 | 0.26 | -20.00 | 17.55 | 306.06 | 47.21 | 294.59 | 0.7718 | 364.2 | 999999 | |
| 0.00 | 0.68 | 0.00 | 0.54 | 18.78 | 306.50 | 47.65 | 295.93 | 0.7804 | -574.0 | -485.9 | |
| 0.68 | -20.00 | 0.52 | -20.00 | 17.92 | 305.69 | 46.83 | 295.19 | 0.7692 | -169.4 | 999999 | |
| 4.17 | -20.00 | 3.21 | -20.00 | 17.89 | 305.58 | 46.73 | 295.18 | 0.7681 | 638.3 | 999999 | |
| 20.84 | -20.00 | 15.96 | -20.00 | 18.25 | 305.17 | 46.32 | 295.80 | 0.7651 | 904.3 | 999999 | |
| 1.45 | -20.00 | 1.12 | -20.00 | 18.98 | 305.29 | 46.44 | 296.65 | 0.7690 | 313.4 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.87 | 20.44 | 305.85 | 47.00 | 298.21 | 0.7800 | -483.0 | -389.0 | |
| 0.00 | 1.11 | 0.00 | 0.83 | 17.89 | 304.33 | 45.48 | 295.69 | 0.7552 | -612.0 | -500.8 | |
| 7.23 | 67.28 | 5.58 | 51.31 | 20.14 | 304.90 | 46.05 | 298.23 | 0.7696 | 617.4 | 407.3 | |
| 2.72 | -31.00 | 2.08 | -31.00 | 20.09 | 304.44 | 45.58 | 298.38 | 0.7648 | 680.4 | 999999 | |
| 2.72 | 4.17 | 2.05 | 3.15 | 19.51 | 303.91 | 45.06 | 297.89 | 0.7572 | 368.2 | 403.8 | |
| 5.78 | -31.00 | 4.40 | -31.00 | 20.21 | 304.08 | 45.22 | 298.68 | 0.7617 | 814.1 | 999999 | |
| 1.45 | -31.00 | 1.09 | -31.00 | 19.83 | 303.80 | 44.95 | 298.33 | 0.7573 | 595.7 | 999999 | |
| 1.70 | -31.00 | 1.29 | -31.00 | 20.46 | 303.95 | 45.09 | 299.05 | 0.7614 | 1082.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.94 | 18.55 | 303.14 | 44.29 | 297.02 | 0.7455 | -682.0 | -600.9 | |
| 0.00 | 1.11 | 0.00 | 0.82 | 19.03 | 303.21 | 44.36 | 297.59 | 0.7481 | -518.0 | -476.2 | |
| 0.00 | 1.02 | 0.00 | 0.76 | 19.37 | 302.93 | 44.08 | 298.14 | 0.7466 | -548.0 | -491.0 | |
| 0.94 | -31.00 | 0.70 | -31.00 | 20.38 | 303.16 | 44.31 | 299.31 | 0.7532 | -341.1 | 999999 | |
| 0.00 | 2.47 | 0.00 | 1.84 | 20.31 | 302.74 | 43.89 | 299.41 | 0.7487 | -589.0 | -517.4 | |
| 0.00 | 0.94 | 0.00 | 0.69 | 19.80 | 302.56 | 43.71 | 298.86 | 0.7446 | -524.0 | -535.4 | |
| 0.00 | 0.85 | 0.00 | 0.62 | 18.91 | 302.21 | 43.36 | 297.89 | 0.7373 | -480.0 | -437.1 | |
| 0.00 | 0.77 | 0.00 | 0.56 | 19.59 | 301.58 | 42.73 | 299.05 | 0.7336 | -616.0 | -549.7 | |
| 0.00 | 1.19 | 0.00 | 0.75 | 23.49 | 288.79 | 29.94 | 312.64 | 0.6244 | 694.0 | 459.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
