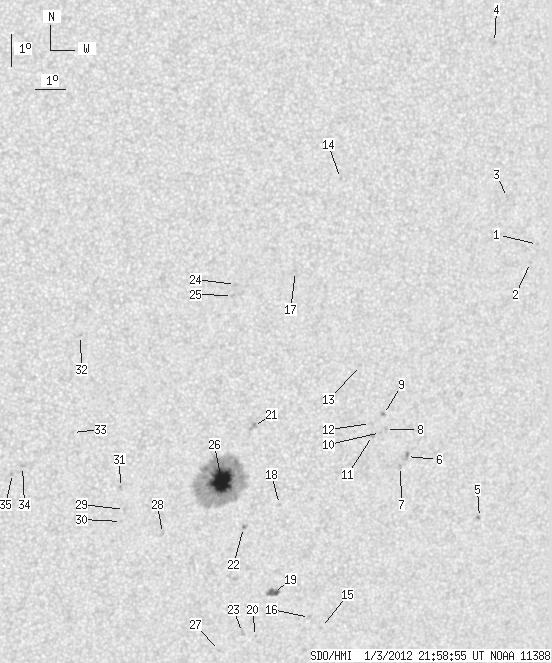

SDO HMI 2012-01-03 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.27 | 250.55 | 23.64 | 142.67 | -24.36 | 100.65 | 21.27 | 222.25 | 0.4946 | 350.2 | 276.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-01-03 21:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.93 | 0.00 | 0.55 | -17.04 | 109.74 | 30.37 | 243.09 | 0.5442 | -662.0 | -503.3 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -17.59 | 109.59 | 30.22 | 242.04 | 0.5453 | -766.0 | -470.7 | |
| 0.00 | 2.55 | 0.00 | 1.47 | -15.65 | 108.45 | 29.07 | 244.70 | 0.5196 | -752.0 | -584.6 | |
| 0.00 | 1.61 | 0.00 | 0.91 | -11.03 | 107.40 | 28.02 | 252.95 | 0.4843 | -710.0 | -545.5 | |
| 0.85 | 1.61 | 0.52 | 0.99 | -25.54 | 109.56 | 30.18 | 229.61 | 0.5977 | 728.0 | 612.4 | |
| 0.00 | 3.06 | 0.00 | 1.81 | -23.69 | 106.39 | 27.01 | 229.57 | 0.5486 | 867.0 | 722.4 | |
| 0.00 | 1.44 | 0.00 | 0.85 | -24.01 | 106.25 | 26.87 | 228.95 | 0.5496 | 734.0 | 617.5 | |
| 0.00 | 1.87 | 0.00 | 1.09 | -22.86 | 105.46 | 26.08 | 229.95 | 0.5313 | 652.0 | 533.5 | |
| 1.53 | 1.61 | 0.89 | 0.94 | -22.39 | 105.29 | 25.91 | 230.53 | 0.5256 | 790.3 | 582.0 | |
| 0.00 | 0.68 | 0.00 | 0.40 | -22.96 | 105.30 | 25.92 | 229.65 | 0.5304 | 809.0 | 694.5 | |
| 0.00 | 2.04 | 0.00 | 1.19 | -23.06 | 105.04 | 25.66 | 229.23 | 0.5282 | 755.0 | 623.5 | |
| 0.00 | 1.36 | 0.00 | 0.79 | -22.68 | 104.89 | 25.51 | 229.67 | 0.5234 | 693.0 | 537.4 | |
| 0.00 | 1.53 | 0.00 | 0.87 | -20.89 | 104.20 | 24.82 | 231.90 | 0.5005 | -655.0 | -465.3 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -15.22 | 102.69 | 23.31 | 241.04 | 0.4383 | -745.0 | -511.3 | |
| 0.00 | 1.19 | 0.00 | 0.72 | -29.23 | 104.63 | 25.25 | 220.08 | 0.5804 | 568.0 | 523.7 | |
| 0.00 | 1.70 | 0.00 | 1.02 | -28.92 | 104.10 | 24.72 | 219.94 | 0.5725 | 649.0 | 558.2 | |
| 0.00 | 0.93 | 0.00 | 0.52 | -18.06 | 101.55 | 22.17 | 234.16 | 0.4444 | -587.0 | -539.1 | |
| 0.00 | 1.19 | 0.00 | 0.69 | -25.30 | 102.20 | 22.82 | 222.76 | 0.5184 | -637.0 | -491.0 | |
| 6.37 | 7.30 | 3.77 | 4.32 | -28.13 | 102.59 | 23.21 | 219.32 | 0.5507 | 772.8 | 613.5 | |
| 0.00 | 0.42 | 0.00 | 0.25 | -29.58 | 102.27 | 22.89 | 217.12 | 0.5628 | -742.0 | -660.8 | |
| 0.00 | 3.65 | 0.00 | 2.06 | -22.87 | 100.84 | 21.46 | 224.85 | 0.4800 | -818.0 | -734.4 | |
| 1.10 | 2.04 | 0.64 | 1.18 | -26.06 | 101.07 | 21.69 | 220.35 | 0.5150 | 680.0 | 644.0 | |
| 0.00 | 2.55 | 0.00 | 1.52 | -29.46 | 101.76 | 22.38 | 216.69 | 0.5571 | -838.0 | -619.6 | |
| 0.00 | 1.87 | 0.00 | 1.02 | -18.50 | 99.60 | 20.23 | 230.97 | 0.4239 | -873.0 | -690.4 | |
| 0.00 | 1.61 | 0.00 | 0.88 | -18.83 | 99.55 | 20.17 | 230.24 | 0.4263 | -704.0 | -632.8 | |
| 31.42 | 192.57 | 17.82 | 109.21 | -24.58 | 100.03 | 20.65 | 221.17 | 0.4892 | 1320.1 | 405.7 | |
| 0.00 | 1.02 | 0.00 | 0.61 | -30.07 | 101.06 | 21.68 | 215.14 | 0.5577 | 788.0 | 659.0 | |
| 0.00 | 2.04 | 0.00 | 1.16 | -26.31 | 98.28 | 18.90 | 216.39 | 0.4914 | -469.0 | -409.2 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -25.56 | 96.85 | 17.47 | 215.36 | 0.4699 | -889.0 | -613.8 | |
| 0.00 | 1.10 | 0.00 | 0.62 | -25.95 | 96.80 | 17.43 | 214.78 | 0.4741 | -699.0 | -493.8 | |
| 0.00 | 1.53 | 0.00 | 0.85 | -24.87 | 96.61 | 17.23 | 215.97 | 0.4594 | -905.0 | -651.7 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -20.14 | 94.70 | 15.33 | 220.35 | 0.3849 | -816.0 | -657.8 | |
| 0.00 | 0.59 | 0.00 | 0.32 | -23.16 | 94.77 | 15.39 | 215.52 | 0.4219 | -766.0 | -593.3 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -24.25 | 93.23 | 13.85 | 211.28 | 0.4223 | -821.0 | -644.0 | |
| 0.00 | 0.93 | 0.00 | 0.51 | -24.48 | 92.93 | 13.55 | 210.42 | 0.4228 | -832.0 | -729.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
