SDO HMI 2012-01-04 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.94 | 203.25 | 17.09 | 124.75 | -24.46 | 99.97 | 30.45 | 231.42 | 0.5924 | 527.3 | 316.0 | |
|
previous
or next observation for the same group /

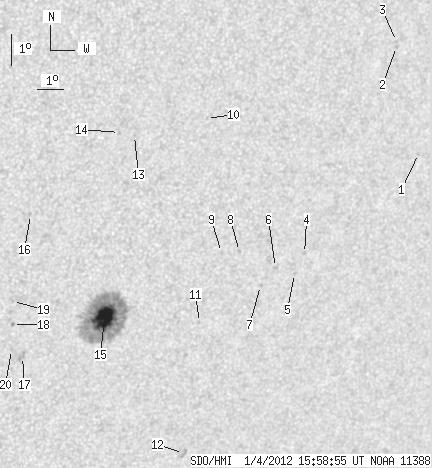

back to the solar disc SDO HMI 2012-01-04 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.10 | 0.00 | 0.75 | -19.18 | 110.34 | 40.82 | 245.14 | 0.6828 | -473.0 | -321.4 | |
| 0.00 | 1.02 | 0.00 | 0.66 | -15.98 | 108.60 | 39.07 | 249.13 | 0.6508 | -699.0 | -600.2 | |
| 0.00 | 1.10 | 0.00 | 0.72 | -15.83 | 108.56 | 39.04 | 249.34 | 0.6499 | -686.0 | -572.1 | |
| 0.00 | 0.93 | 0.00 | 0.61 | -22.42 | 106.70 | 37.18 | 238.86 | 0.6550 | 686.0 | 535.0 | |
| 0.00 | 0.76 | 0.00 | 0.50 | -23.05 | 106.50 | 36.98 | 237.85 | 0.6560 | 312.0 | 295.0 | |
| 0.00 | 1.78 | 0.00 | 1.15 | -22.89 | 105.69 | 36.17 | 237.62 | 0.6461 | 708.0 | 523.0 | |
| 0.00 | 1.27 | 0.00 | 0.82 | -23.47 | 105.28 | 35.75 | 236.56 | 0.6446 | 545.0 | 431.5 | |
| 0.00 | 1.27 | 0.00 | 0.81 | -22.44 | 104.14 | 34.62 | 237.35 | 0.6260 | 659.0 | 568.6 | |
| 0.00 | 1.78 | 0.00 | 1.12 | -22.49 | 103.46 | 33.94 | 236.84 | 0.6184 | 198.0 | 289.2 | |
| 0.00 | 0.85 | 0.00 | 0.51 | -18.39 | 101.89 | 32.37 | 242.19 | 0.5766 | -397.0 | -394.8 | |
| 0.00 | 1.02 | 0.00 | 0.65 | -24.71 | 103.26 | 33.74 | 233.52 | 0.6298 | 660.0 | 490.7 | |
| 0.00 | 3.40 | 0.00 | 2.25 | -28.92 | 104.07 | 34.55 | 228.41 | 0.6660 | 542.0 | 499.8 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -18.99 | 99.40 | 29.87 | 239.56 | 0.5484 | -628.0 | -503.0 | |
| 0.00 | 1.10 | 0.00 | 0.65 | -18.91 | 98.84 | 29.32 | 239.29 | 0.5409 | -686.0 | -518.6 | |
| 27.94 | 176.28 | 17.09 | 107.84 | -24.66 | 99.61 | 30.09 | 230.89 | 0.5894 | 1263.1 | 388.4 | |
| 0.00 | 1.27 | 0.00 | 0.74 | -21.51 | 96.18 | 26.66 | 232.76 | 0.5265 | -825.0 | -662.5 | |
| 0.00 | 3.99 | 0.00 | 2.40 | -25.98 | 96.90 | 27.38 | 226.63 | 0.5708 | -723.0 | -594.5 | |
| 0.00 | 1.36 | 0.00 | 0.81 | -24.97 | 96.29 | 26.76 | 227.51 | 0.5558 | -527.0 | -571.0 | |
| 0.00 | 1.02 | 0.00 | 0.60 | -24.24 | 96.12 | 26.59 | 228.42 | 0.5478 | -634.0 | -548.1 | |
| 0.00 | 0.93 | 0.00 | 0.56 | -25.76 | 96.44 | 26.92 | 226.51 | 0.5642 | -587.0 | -511.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
