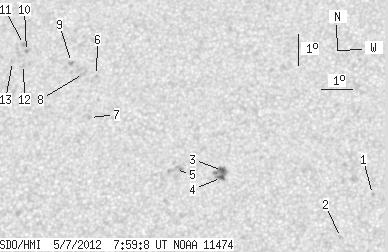

SDO HMI 2012-05-07 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.76 | 35.17 | 1.98 | 18.80 | 14.97 | 227.30 | -11.92 | 31.73 | 0.3749 | 283.7 | -79.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-05-07 07:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.60 | 12.98 | 234.19 | -5.03 | 16.81 | 0.2968 | 757.0 | 628.2 | |
| 0.00 | 1.61 | 0.00 | 0.83 | 11.63 | 233.23 | -6.00 | 21.47 | 0.2808 | -822.0 | -591.1 | |
| 1.88 | 12.08 | 0.99 | 6.36 | 13.77 | 229.46 | -9.76 | 29.12 | 0.3398 | -1094.4 | -935.1 | |
| 1.88 | -3.00 | 0.99 | -3.00 | 13.55 | 229.44 | -9.78 | 29.51 | 0.3368 | -1121.5 | 999999 | |
| 0.00 | 6.09 | 0.00 | 3.22 | 13.82 | 227.97 | -11.25 | 32.61 | 0.3531 | -765.0 | -674.1 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 16.87 | 225.24 | -13.98 | 33.77 | 0.4177 | 782.0 | 616.9 | |
| 0.00 | 1.97 | 0.00 | 1.06 | 15.52 | 225.11 | -14.11 | 35.98 | 0.4016 | 795.0 | 523.6 | |
| 0.00 | 4.03 | 0.00 | 2.20 | 16.94 | 224.81 | -14.41 | 34.47 | 0.4225 | 765.0 | 610.8 | |
| 0.00 | 2.60 | 0.00 | 1.42 | 17.30 | 224.39 | -14.83 | 34.73 | 0.4309 | 852.0 | 682.0 | |
| 0.00 | 1.25 | 0.00 | 0.69 | 17.68 | 222.87 | -16.35 | 36.80 | 0.4496 | 935.0 | 791.6 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 17.91 | 222.75 | -16.47 | 36.68 | 0.4535 | 955.0 | 800.0 | |
| 0.00 | 0.90 | 0.00 | 0.49 | 17.26 | 222.81 | -16.41 | 37.50 | 0.4450 | 823.0 | 699.7 | |
| 0.00 | 1.25 | 0.00 | 0.69 | 17.36 | 222.44 | -16.78 | 37.96 | 0.4498 | 799.0 | 558.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
