SDO HMI 2012-05-07 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.42 | 30.41 | 1.26 | 16.20 | 15.06 | 226.66 | -10.37 | 28.16 | 0.3631 | 140.6 | -132.7 | |
|
previous
or next observation for the same group /

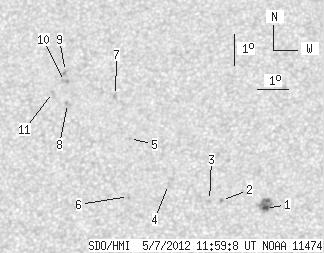

back to the solar disc SDO HMI 2012-05-07 11:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.42 | 14.23 | 1.26 | 7.44 | 13.58 | 229.45 | -7.58 | 23.67 | 0.3206 | -1138.2 | -858.8 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 13.85 | 228.06 | -8.97 | 27.04 | 0.3345 | -826.0 | -724.7 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 13.85 | 227.68 | -9.35 | 28.00 | 0.3374 | -829.0 | -651.3 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 14.37 | 226.36 | -10.67 | 30.46 | 0.3554 | -735.0 | -613.1 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 15.86 | 225.03 | -12.00 | 31.26 | 0.3870 | 766.0 | 543.3 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 14.01 | 225.11 | -11.93 | 33.87 | 0.3613 | 789.0 | 650.1 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 17.25 | 224.49 | -12.54 | 30.50 | 0.4103 | 693.0 | 547.7 | |
| 0.00 | 2.15 | 0.00 | 1.17 | 17.01 | 222.95 | -14.09 | 33.78 | 0.4203 | 750.0 | 652.4 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 18.05 | 222.80 | -14.23 | 32.66 | 0.4351 | 802.0 | 756.6 | |
| 0.00 | 3.13 | 0.00 | 1.72 | 17.73 | 222.79 | -14.24 | 33.10 | 0.4309 | 740.0 | 762.7 | |
| 0.00 | 1.70 | 0.00 | 0.93 | 17.38 | 222.43 | -14.61 | 34.23 | 0.4296 | 867.0 | 642.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
