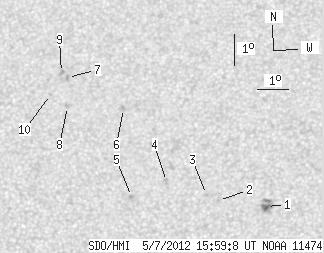

SDO HMI 2012-05-07 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.92 | 29.79 | 2.56 | 15.74 | 15.04 | 226.76 | -8.07 | 22.49 | 0.3468 | -3.7 | -28.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-05-07 15:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.92 | 14.04 | 2.56 | 7.31 | 13.66 | 229.47 | -5.36 | 17.15 | 0.3089 | -1046.5 | -713.0 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 13.86 | 227.96 | -6.86 | 21.34 | 0.3203 | -890.0 | -619.7 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 14.05 | 227.58 | -7.25 | 22.18 | 0.3256 | -824.0 | -687.8 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 14.48 | 226.31 | -8.52 | 25.05 | 0.3404 | -797.0 | -710.2 | |
| 0.00 | 2.06 | 0.00 | 1.08 | 14.01 | 225.22 | -9.61 | 28.43 | 0.3417 | 911.0 | 720.5 | |
| 0.00 | 1.97 | 0.00 | 1.06 | 16.83 | 224.83 | -10.00 | 25.68 | 0.3851 | 805.0 | 665.2 | |
| 0.00 | 2.15 | 0.00 | 1.17 | 17.85 | 222.96 | -11.87 | 28.40 | 0.4133 | 921.0 | 751.6 | |
| 0.00 | 2.06 | 0.00 | 1.11 | 16.91 | 223.02 | -11.81 | 29.45 | 0.3998 | 715.0 | 573.2 | |
| 0.00 | 2.86 | 0.00 | 1.56 | 18.02 | 222.75 | -12.08 | 28.62 | 0.4171 | 984.0 | 720.5 | |
| 0.00 | 0.81 | 0.00 | 0.44 | 17.31 | 222.44 | -12.38 | 30.11 | 0.4098 | 811.0 | 598.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
