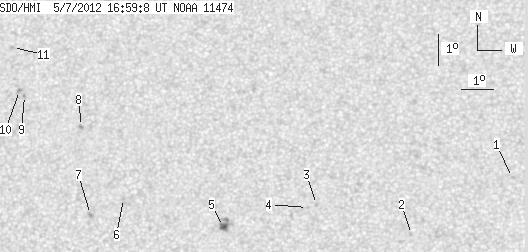

SDO HMI 2012-05-07 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.20 | 25.39 | 2.19 | 13.41 | 15.11 | 227.99 | -6.28 | 17.28 | 0.3409 | -181.5 | -62.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-05-07 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.47 | 15.18 | 238.48 | 4.21 | 347.49 | 0.3284 | -759.0 | -609.0 | |
| 0.00 | 1.34 | 0.00 | 0.69 | 13.36 | 235.31 | 1.03 | 356.53 | 0.2909 | -837.0 | -608.1 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 14.31 | 232.35 | -1.93 | 6.11 | 0.3081 | -803.0 | -600.2 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 14.22 | 232.07 | -2.21 | 7.02 | 0.3070 | -805.0 | -633.0 | |
| 4.20 | 10.56 | 2.19 | 5.49 | 13.63 | 229.45 | -4.82 | 15.56 | 0.3059 | -1097.4 | -788.3 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 14.54 | 226.29 | -7.99 | 23.58 | 0.3377 | -800.0 | -601.7 | |
| 0.00 | 1.97 | 0.00 | 1.04 | 14.04 | 225.27 | -9.01 | 26.88 | 0.3375 | 925.0 | 768.1 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 16.86 | 224.85 | -9.42 | 24.35 | 0.3816 | 851.0 | 755.5 | |
| 0.00 | 1.25 | 0.00 | 0.68 | 17.88 | 222.96 | -11.32 | 27.25 | 0.4096 | 868.0 | 761.1 | |
| 0.00 | 3.04 | 0.00 | 1.65 | 18.05 | 222.78 | -11.49 | 27.41 | 0.4131 | 900.0 | 702.2 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 19.46 | 222.46 | -11.82 | 26.47 | 0.4351 | 651.0 | 514.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
