SDO HMI 2012-05-07 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.20 | 15.47 | 2.18 | 8.14 | 15.17 | 227.06 | -5.56 | 15.43 | 0.3354 | 57.5 | -66.6 | |
|
previous
or next observation for the same group /

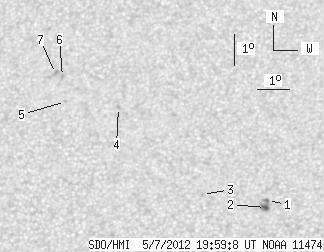

back to the solar disc SDO HMI 2012-05-07 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.16 | 8.59 | 0.60 | 4.46 | 13.84 | 229.60 | -3.02 | 9.76 | 0.3027 | -777.6 | -923.6 | |
| 3.04 | -1.00 | 1.58 | -1.00 | 13.62 | 229.54 | -3.08 | 10.08 | 0.2992 | -1142.9 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 14.04 | 227.56 | -5.05 | 15.88 | 0.3135 | -813.0 | -653.6 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 16.84 | 224.82 | -7.79 | 20.55 | 0.3712 | 820.0 | 621.4 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 17.05 | 223.12 | -9.50 | 24.30 | 0.3849 | 833.0 | 679.9 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 17.87 | 222.98 | -9.64 | 23.73 | 0.3977 | 850.0 | 671.3 | |
| 0.00 | 1.97 | 0.00 | 1.06 | 17.97 | 222.75 | -9.87 | 24.12 | 0.4006 | 995.0 | 679.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
