SDO HMI 2012-05-07 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.15 | 21.28 | 1.11 | 11.23 | 15.28 | 228.50 | -3.56 | 9.30 | 0.3384 | -86.5 | -199.6 | |
|
previous
or next observation for the same group /

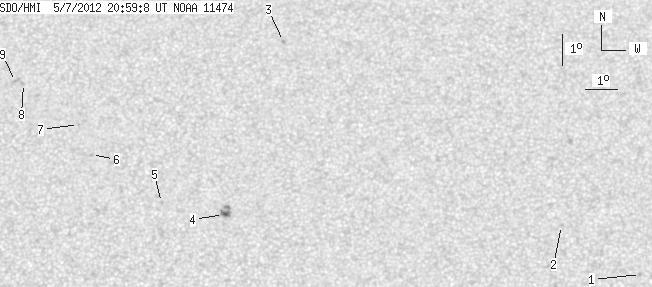

back to the solar disc SDO HMI 2012-05-07 20:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.61 | 11.79 | 242.41 | 10.35 | 326.09 | 0.3167 | -782.0 | -538.1 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 13.31 | 239.98 | 7.93 | 334.98 | 0.3187 | -465.0 | -382.8 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 19.19 | 231.30 | -0.76 | 1.87 | 0.3865 | -773.0 | -640.3 | |
| 2.15 | 8.50 | 1.11 | 4.41 | 13.63 | 229.45 | -2.61 | 8.57 | 0.2980 | -1095.9 | -910.1 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 14.01 | 227.51 | -4.55 | 14.40 | 0.3108 | -758.0 | -589.5 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 15.56 | 225.27 | -6.79 | 19.31 | 0.3459 | 802.0 | 525.5 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.52 | 224.82 | -7.24 | 19.51 | 0.3632 | 796.0 | 593.4 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 17.86 | 223.00 | -9.06 | 22.45 | 0.3939 | 784.0 | 522.2 | |
| 0.00 | 3.76 | 0.00 | 2.03 | 17.93 | 222.74 | -9.32 | 22.96 | 0.3966 | 824.0 | 618.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
