SDO HMI 2012-05-08 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.71 | 0.00 | 9.83 | 15.23 | 228.06 | -0.69 | 0.60 | 0.3312 | -109.5 | -300.3 | |
|
previous
or next observation for the same group /

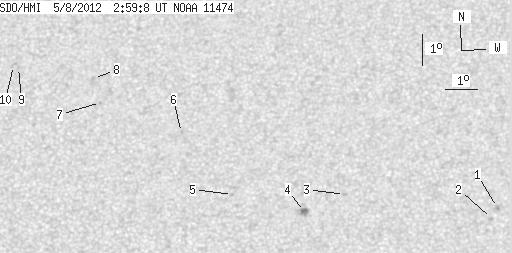

back to the solar disc SDO HMI 2012-05-08 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.06 | 0.00 | 1.08 | 13.82 | 235.62 | 6.88 | 338.52 | 0.3191 | -939.0 | -714.7 | |
| 0.00 | 1.70 | 0.00 | 0.89 | 13.47 | 235.42 | 6.68 | 338.67 | 0.3125 | -865.0 | -692.1 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 14.21 | 230.84 | 2.10 | 353.30 | 0.3059 | -767.0 | -606.9 | |
| 0.00 | 5.91 | 0.00 | 3.06 | 13.67 | 229.59 | 0.85 | 357.19 | 0.2951 | -1187.0 | -949.1 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 14.21 | 227.35 | -1.40 | 4.46 | 0.3047 | -853.0 | -649.4 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 16.19 | 225.73 | -3.02 | 8.58 | 0.3405 | 701.0 | 571.1 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 17.17 | 223.14 | -5.61 | 14.89 | 0.3648 | 817.0 | 668.0 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 17.95 | 222.89 | -5.85 | 14.93 | 0.3781 | 868.0 | 719.1 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 18.33 | 220.47 | -8.28 | 20.29 | 0.3957 | 738.0 | 607.7 | |
| 0.00 | 2.24 | 0.00 | 1.21 | 18.39 | 220.30 | -8.44 | 20.59 | 0.3976 | 392.0 | 451.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
