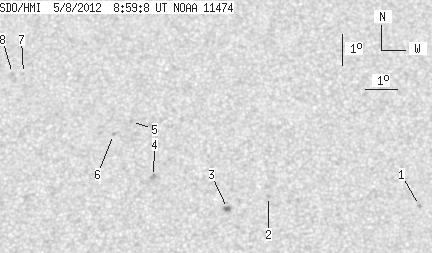

SDO HMI 2012-05-08 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.95 | 13.87 | 1.54 | 7.27 | 15.17 | 228.21 | 2.75 | 351.23 | 0.3283 | -466.9 | -371.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-05-08 08:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.80 | 13.83 | 235.67 | 10.22 | 329.69 | 0.3428 | -885.0 | -711.5 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 14.08 | 230.92 | 5.47 | 342.84 | 0.3147 | -702.0 | -595.6 | |
| 2.95 | 3.49 | 1.54 | 1.81 | 13.69 | 229.63 | 4.18 | 346.41 | 0.3028 | -1020.8 | -948.8 | |
| 0.00 | 2.60 | 0.00 | 1.35 | 14.70 | 227.33 | 1.88 | 354.15 | 0.3129 | -923.0 | -766.0 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 16.46 | 226.66 | 1.20 | 356.60 | 0.3411 | -793.0 | -688.5 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 16.04 | 226.09 | 0.63 | 358.17 | 0.3337 | -684.0 | -501.0 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 18.01 | 223.23 | -2.22 | 5.78 | 0.3678 | 753.0 | 588.1 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 18.02 | 222.88 | -2.57 | 6.69 | 0.3684 | 819.0 | 649.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
