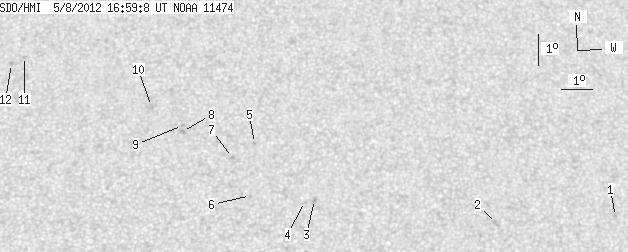

SDO HMI 2012-05-08 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.87 | 0.00 | 9.98 | 15.21 | 228.02 | 6.97 | 340.03 | 0.3515 | -121.8 | -102.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-05-08 16:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.63 | 13.33 | 239.31 | 18.25 | 312.98 | 0.4183 | -778.0 | -638.9 | |
| 0.00 | 2.77 | 0.00 | 1.48 | 13.04 | 235.43 | 14.38 | 319.20 | 0.3718 | -741.0 | -685.4 | |
| 0.00 | 2.24 | 0.00 | 1.17 | 13.73 | 229.69 | 8.63 | 333.53 | 0.3286 | -1057.0 | -848.3 | |
| 0.00 | 0.72 | 0.00 | 0.37 | 13.67 | 229.37 | 8.32 | 334.29 | 0.3253 | -494.0 | -535.0 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 15.50 | 227.86 | 6.80 | 340.51 | 0.3436 | -791.0 | -643.8 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 13.84 | 227.68 | 6.63 | 339.21 | 0.3169 | -803.0 | -586.6 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 15.05 | 227.15 | 6.09 | 341.97 | 0.3328 | -886.0 | -628.3 | |
| 0.00 | 2.06 | 0.00 | 1.08 | 15.87 | 225.59 | 4.54 | 346.96 | 0.3390 | 889.0 | 786.7 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 16.06 | 225.60 | 4.54 | 347.08 | 0.3421 | 927.0 | 717.7 | |
| 0.00 | 1.97 | 0.00 | 1.04 | 16.67 | 224.63 | 3.58 | 350.09 | 0.3487 | 616.0 | 418.4 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 18.28 | 220.61 | -0.44 | 1.13 | 0.3701 | 850.0 | 657.9 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 18.05 | 220.20 | -0.85 | 2.22 | 0.3666 | 806.0 | 684.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
