SDO HMI 2012-05-08 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 14.49 | 0.00 | 7.68 | 15.96 | 226.39 | 5.89 | 343.38 | 0.3545 | 107.9 | 42.3 | |
|
previous
or next observation for the same group /

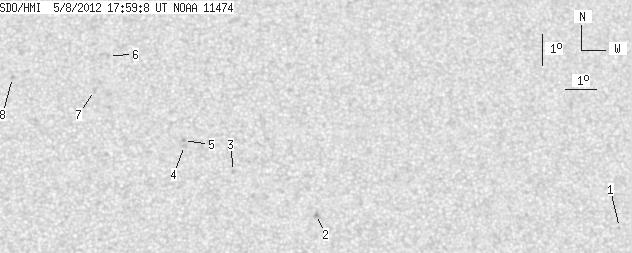

back to the solar disc SDO HMI 2012-05-08 17:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.54 | 13.44 | 239.42 | 18.92 | 312.16 | 0.4272 | -679.0 | -594.1 | |
| 0.00 | 2.95 | 0.00 | 1.55 | 13.71 | 229.70 | 9.20 | 332.02 | 0.3325 | -1130.0 | -789.9 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 15.05 | 227.13 | 6.63 | 340.51 | 0.3357 | -847.0 | -625.2 | |
| 0.00 | 2.42 | 0.00 | 1.27 | 15.87 | 225.61 | 5.11 | 345.40 | 0.3412 | 1017.0 | 655.5 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 16.04 | 225.58 | 5.08 | 345.60 | 0.3437 | 847.0 | 740.8 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 18.78 | 223.25 | 2.75 | 353.11 | 0.3807 | 721.0 | 531.2 | |
| 0.00 | 2.60 | 0.00 | 1.38 | 17.64 | 222.79 | 2.29 | 353.92 | 0.3614 | 87.0 | 212.0 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 18.06 | 220.19 | -0.31 | 0.81 | 0.3663 | 847.0 | 742.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
