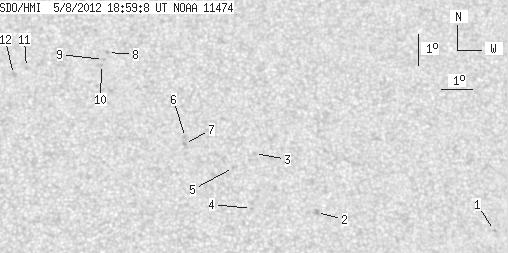

SDO HMI 2012-05-08 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.79 | 0.00 | 9.43 | 16.03 | 225.98 | 6.03 | 342.71 | 0.3552 | 119.7 | 66.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-05-08 18:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.62 | 13.19 | 235.33 | 15.39 | 317.54 | 0.3843 | -735.0 | -627.2 | |
| 0.00 | 3.40 | 0.00 | 1.79 | 13.68 | 229.68 | 9.74 | 330.61 | 0.3364 | -1089.0 | -760.4 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 15.54 | 227.80 | 7.85 | 337.83 | 0.3503 | -709.0 | -444.2 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 13.79 | 227.64 | 7.69 | 336.14 | 0.3228 | -828.0 | -630.7 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 15.09 | 227.12 | 7.17 | 339.10 | 0.3393 | -823.0 | -619.4 | |
| 0.00 | 1.88 | 0.00 | 0.99 | 16.04 | 225.63 | 5.68 | 343.98 | 0.3463 | 856.0 | 667.2 | |
| 0.00 | 1.52 | 0.00 | 0.80 | 15.85 | 225.59 | 5.65 | 343.92 | 0.3431 | 999.0 | 704.6 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 18.78 | 223.22 | 3.27 | 351.83 | 0.3818 | 702.0 | 565.5 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 18.55 | 223.08 | 3.14 | 352.07 | 0.3778 | 702.0 | 580.3 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 18.39 | 223.02 | 3.07 | 352.18 | 0.3751 | 772.0 | 588.4 | |
| 0.00 | 0.81 | 0.00 | 0.43 | 18.28 | 220.62 | 0.68 | 358.25 | 0.3701 | 833.0 | 646.7 | |
| 0.00 | 2.24 | 0.00 | 1.19 | 18.06 | 220.21 | 0.26 | 359.31 | 0.3663 | 756.0 | 637.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
