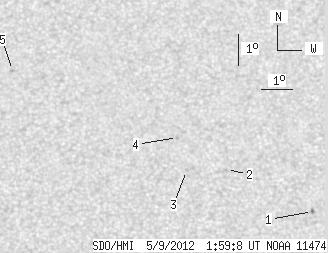

SDO HMI 2012-05-09 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 6.26 | 0.48 | 3.35 | 15.46 | 225.91 | 9.84 | 332.79 | 0.3673 | 89.6 | 230.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-05-09 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.90 | 1.79 | 0.48 | 0.96 | 13.68 | 229.76 | 13.69 | 321.64 | 0.3720 | -683.6 | -626.5 | |
| 0.00 | 0.90 | 0.00 | 0.48 | 14.98 | 227.08 | 11.01 | 329.46 | 0.3646 | -694.0 | -491.7 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 14.94 | 225.81 | 9.73 | 332.37 | 0.3538 | 543.0 | 579.3 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 15.99 | 225.57 | 9.50 | 334.30 | 0.3673 | 821.0 | 636.5 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 18.12 | 220.38 | 4.31 | 348.92 | 0.3735 | 833.0 | 651.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
