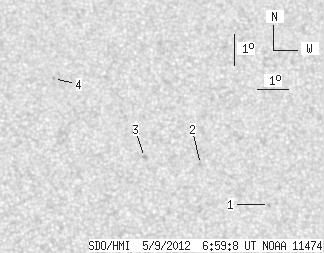

SDO HMI 2012-05-09 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.64 | 0.00 | 3.04 | 15.34 | 226.46 | 13.13 | 325.44 | 0.3897 | -20.8 | 133.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-05-09 06:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.08 | 0.00 | 0.58 | 13.70 | 229.82 | 16.49 | 316.38 | 0.4016 | -886.0 | -742.2 | |
| 0.00 | 1.25 | 0.00 | 0.68 | 14.94 | 227.67 | 14.35 | 322.38 | 0.3938 | -911.0 | -707.7 | |
| 0.00 | 2.15 | 0.00 | 1.15 | 15.14 | 225.88 | 12.55 | 326.28 | 0.3795 | 992.0 | 812.7 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 17.65 | 223.10 | 9.77 | 335.57 | 0.3927 | 722.0 | 605.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
