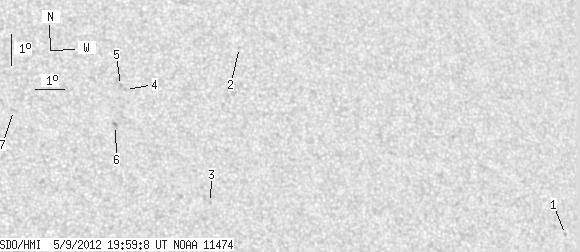

SDO HMI 2012-05-09 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.11 | 0.00 | 5.71 | 17.70 | 225.31 | 19.14 | 319.38 | 0.4783 | 307.9 | 316.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-05-09 19:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.66 | 14.55 | 238.45 | 32.28 | 299.87 | 0.5983 | -663.0 | -521.8 | |
| 0.00 | 1.16 | 0.00 | 0.68 | 20.31 | 227.73 | 21.56 | 318.94 | 0.5267 | -680.0 | -467.4 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 15.26 | 226.12 | 19.95 | 313.62 | 0.4566 | 693.0 | 519.3 | |
| 0.00 | 0.81 | 0.00 | 0.45 | 18.85 | 223.65 | 17.48 | 322.71 | 0.4712 | 654.0 | 442.8 | |
| 0.00 | 1.34 | 0.00 | 0.75 | 18.98 | 223.50 | 17.33 | 323.12 | 0.4713 | 697.0 | 518.8 | |
| 0.00 | 2.69 | 0.00 | 1.49 | 17.68 | 223.20 | 17.03 | 321.78 | 0.4529 | 911.0 | 690.8 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 18.11 | 219.87 | 13.70 | 328.14 | 0.4283 | 543.0 | 501.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
