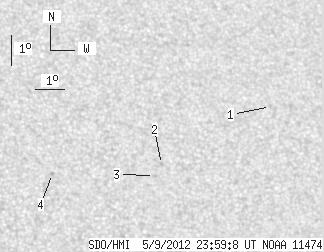

SDO HMI 2012-05-09 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.93 | 0.00 | 2.80 | 18.64 | 223.68 | 19.73 | 319.26 | 0.4902 | 391.8 | 353.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-05-09 23:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.99 | 0.00 | 0.58 | 20.39 | 227.70 | 23.74 | 316.36 | 0.5490 | -591.0 | -471.6 | |
| 0.00 | 1.52 | 0.00 | 0.86 | 18.40 | 223.65 | 19.69 | 318.78 | 0.4873 | 658.0 | 540.1 | |
| 0.00 | 1.43 | 0.00 | 0.81 | 18.04 | 223.37 | 19.42 | 318.66 | 0.4804 | 672.0 | 556.9 | |
| 0.00 | 0.99 | 0.00 | 0.55 | 18.04 | 219.96 | 16.00 | 323.96 | 0.4474 | 828.0 | 636.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
