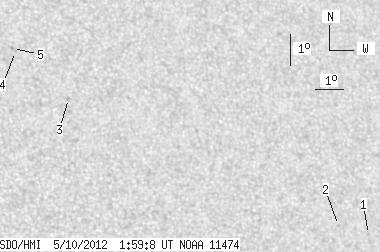

SDO HMI 2012-05-10 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.02 | 0.00 | 2.94 | 15.96 | 228.24 | 25.40 | 308.77 | 0.5310 | 131.0 | 149.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-05-10 01:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.90 | 0.00 | 0.55 | 12.74 | 235.45 | 32.60 | 296.84 | 0.5911 | -546.0 | -403.7 | |
| 0.00 | 0.90 | 0.00 | 0.54 | 12.99 | 234.38 | 31.54 | 297.97 | 0.5792 | -642.0 | -557.6 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 16.79 | 225.38 | 22.53 | 312.63 | 0.5006 | 708.0 | 568.2 | |
| 0.00 | 0.81 | 0.00 | 0.46 | 18.28 | 223.76 | 20.91 | 316.93 | 0.4982 | 505.0 | 454.7 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 18.38 | 223.67 | 20.82 | 317.19 | 0.4983 | 630.0 | 523.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
