SDO HMI 2012-05-10 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.09 | 0.00 | 7.05 | 17.18 | 226.30 | 24.00 | 312.25 | 0.5245 | 123.2 | 360.4 | |
|
previous
or next observation for the same group /

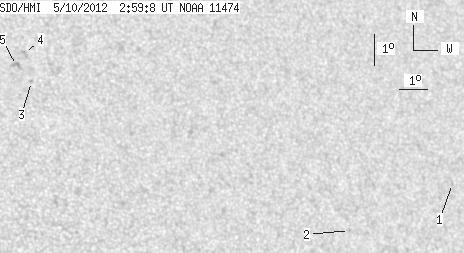

back to the solar disc SDO HMI 2012-05-10 02:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.87 | 14.60 | 238.55 | 36.25 | 297.27 | 0.6460 | -562.0 | -479.6 | |
| 0.00 | 0.99 | 0.00 | 0.60 | 12.98 | 234.38 | 32.09 | 297.56 | 0.5860 | -466.0 | -435.3 | |
| 0.00 | 1.34 | 0.00 | 0.77 | 17.46 | 223.79 | 21.49 | 314.95 | 0.4957 | 722.0 | 540.0 | |
| 0.00 | 3.58 | 0.00 | 2.05 | 18.36 | 223.66 | 21.36 | 316.44 | 0.5037 | 445.0 | 514.3 | |
| 0.00 | 4.84 | 0.00 | 2.76 | 17.96 | 223.34 | 21.04 | 316.29 | 0.4962 | 477.0 | 634.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
