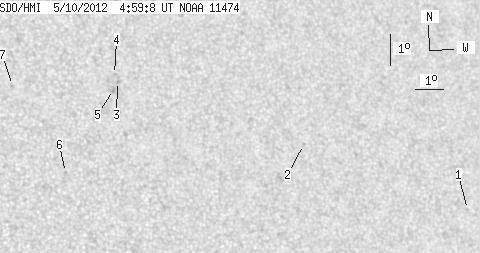

SDO HMI 2012-05-10 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.34 | 0.00 | 4.83 | 17.19 | 224.68 | 23.48 | 312.56 | 0.5167 | 384.6 | 387.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2012-05-10 04:59:08 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.40 | 14.43 | 235.61 | 34.41 | 298.16 | 0.6230 | -646.0 | -459.4 | |
| 0.00 | 1.17 | 0.00 | 0.70 | 16.33 | 229.88 | 28.68 | 305.40 | 0.5671 | -344.0 | -385.0 | |
| 0.00 | 1.43 | 0.00 | 0.83 | 18.21 | 223.61 | 22.41 | 314.87 | 0.5130 | 657.0 | 609.0 | |
| 0.00 | 0.90 | 0.00 | 0.52 | 18.44 | 223.54 | 22.34 | 315.29 | 0.5145 | 726.0 | 635.3 | |
| 0.00 | 1.88 | 0.00 | 1.08 | 17.95 | 223.44 | 22.24 | 314.70 | 0.5085 | 841.0 | 718.3 | |
| 0.00 | 1.08 | 0.00 | 0.60 | 15.24 | 221.49 | 20.29 | 313.03 | 0.4596 | 668.0 | 507.1 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 18.01 | 220.01 | 18.81 | 319.45 | 0.4735 | 790.0 | 578.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
